Description

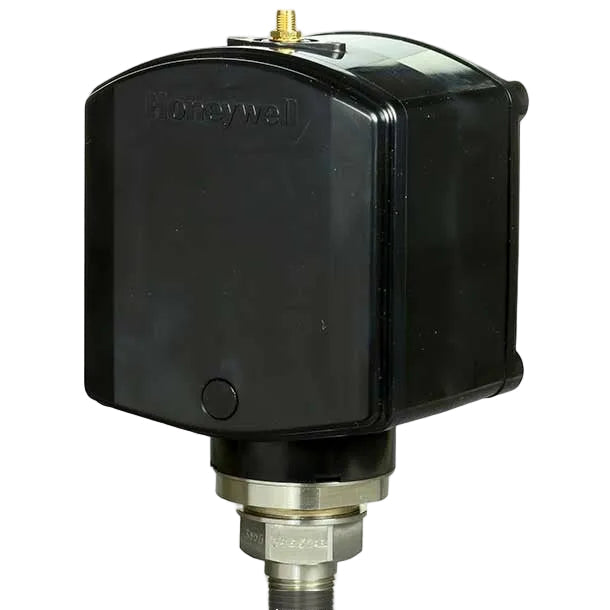

The Honeywell WPS1A00AGP2PGP0N is a wireless gauge pressure sensor designed for industrial automation applications with a measurement range up to 1000 psi. It features a 3/4" NPT male threaded pressure port and transmits data via RF wireless communication. The sensor operates on a 3.6 VDC supply and is suitable for remote pressure monitoring in harsh environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
WPS1A00AGP2PGP0N |
| Subcategory |
Pressure Sensor/Transducer |
| Series |
WPS |
| Product Type |
Industrial Wireless Pressure Sensor |
| Pressure Type |
Gauge |
| Operating Pressure |
0 to 1000 psi |
| Maximum Pressure |
3000 psi |
| Accuracy |
±2% |
| Output Type |
Digital (Wireless RF 2.4 GHz) |
| Supply Voltage |
3.6 VDC |
| Operating Temperature |
-55°C to 85°C |
| Port Size |
3/4" NPT |
| Port Style |
Threaded |
| Mounting Type |
3/4" NPT Male |
| RoHS Compliant |
Yes |
| Weight |
3.00 lbs |
Information About WPS1A00AGP2PGP0N
The WPS1A00AGP2PGP0N is part of the Honeywell WPS Series of Limitless™ wireless pressure sensors. It measures gauge pressure up to 1000 psi and communicates using a 2.4 GHz RF wireless digital output for integration into industrial monitoring systems. The unit includes a male 3/4" NPT threaded port for secure installation in process piping. Designed for demanding industrial conditions, it operates within a temperature range of -55°C to 85°C and supports a maximum pressure rating of 3000 psi.
Key Features:
-
0 to 1000 psi Operating Range: Designed for industrial gauge pressure measurement.
-
Wireless RF Output: 2.4 GHz digital transmission for remote monitoring systems.
-
±2% Accuracy: Provides consistent and repeatable pressure readings.
-
3/4" NPT Male Port: Threaded connection for secure industrial installation.
-
Maximum Pressure 3000 psi: Supports high overpressure tolerance.
-
3.6 VDC Supply Voltage: Low-voltage operation for wireless systems.
-
Wide Operating Temperature Range: Functions from -55°C to 85°C.
-
WPS Series Platform: Compatible with Honeywell wireless sensing networks.
The WPS1A00AGP2PGP0N delivers the reliability and precision required for wireless gauge pressure monitoring in industrial automation systems.
