Description

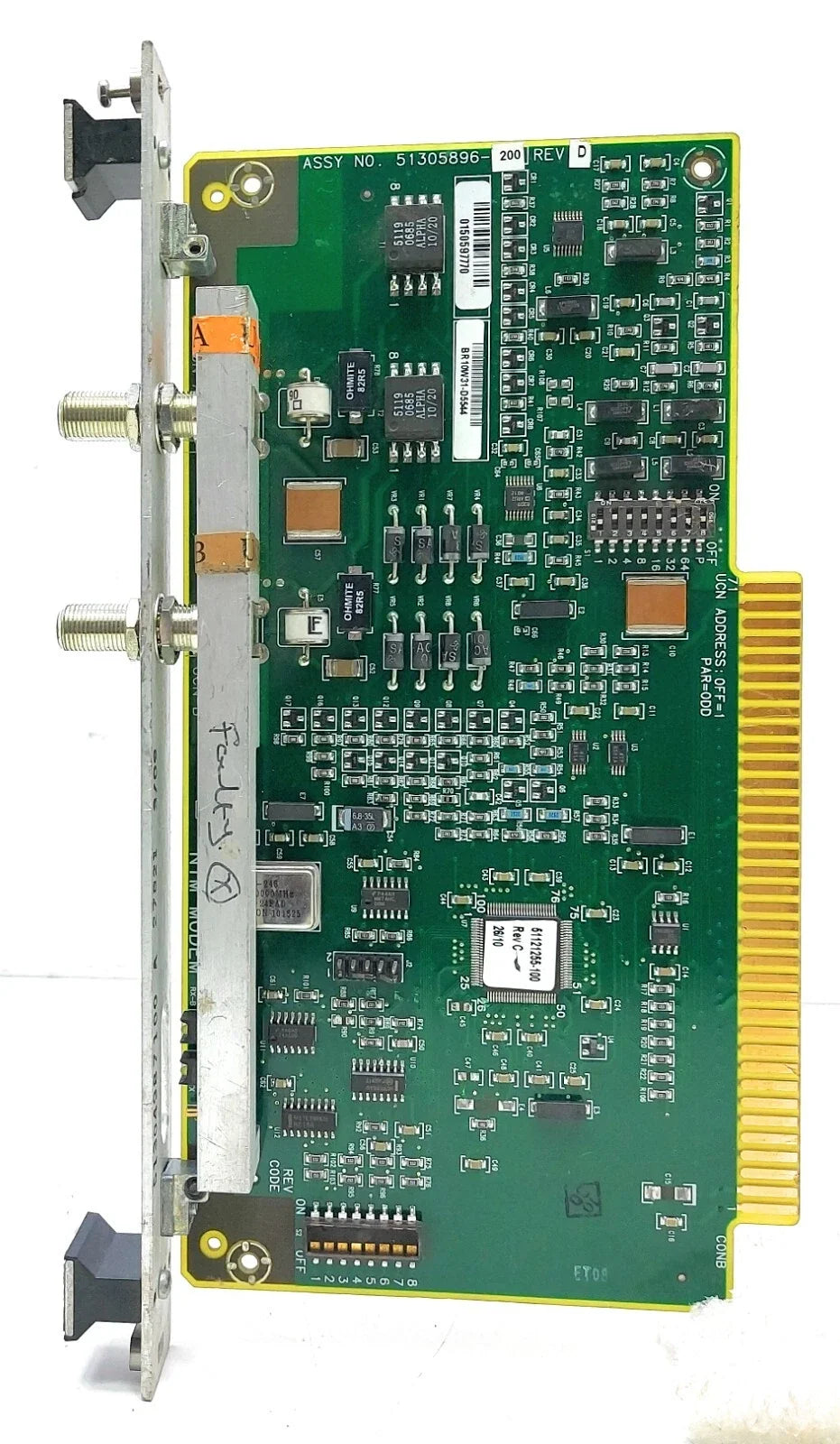

The Honeywell 51305896-200 NIM Modem CE Board is an industrial network interface module designed for Honeywell TDC 3000 process control systems. This board provides communication connectivity between the Universal Control Network (UCN) and Local Control Network (LCN), supporting reliable data exchange between xPM, LM, and associated process management nodes. Engineered for CE-compliant industrial environments, the Honeywell 51305896-200 integrates modem and paddle card functions into a single compact assembly for enhanced network efficiency and simplified installation.

Technical Specifications

Information About 51305896-200

The 51305896-200 is a CE-compliant NIM modem paddle board developed for use with the Honeywell Enhanced Process Network Interface (EPNI) board 51401583-100. It serves as the communication interface for Universal Control Network cable connections and enables data transfer between UCN and LCN architectures within Honeywell distributed control systems. This module consolidates the functions of older PNM, PNM I/O, PNI I/O, and mini-coax configurations into a single integrated board for improved system simplicity and maintainability. Designed for continuous industrial operation, the board supports redundant NIM configurations and can also be utilized for carrier band Plant Information Network applications in Network Gateway systems.

Key Features:

• TDC 3000 Compatibility: Designed for Honeywell TDC 3000 distributed control systems.
• NIM Communication Interface: Provides interconnection between UCN and LCN networks.
• CE-Compliant Construction: Built to meet CE industrial compliance requirements.
• Integrated Paddle Board Design: Combines multiple legacy network interface functions into one module.
• UCN Cable Connectivity: Supports UCN network cable A & B connections.
• Enhanced Process Network Support: Interfaces directly with EPNI board 51401583-100.
• Redundant NIM Capability: Suitable for redundant network interface module configurations.
• Carrier Band PIN Support: Can be used for Plant Information Network communication applications.
• Reliable Process Data Exchange: Facilitates stable communication between xPM and LM nodes.
• Compact Industrial Form Factor: Designed for efficient cabinet and rack integration.
• 24VDC Operation: Supports standard industrial control power requirements.
• Simplified Maintenance: Reduces component complexity compared to older multi-board configurations.

The 51305896-200 delivers the reliability and precision required for industrial network communication, distributed control integration, and Honeywell process automation systems.
