Description

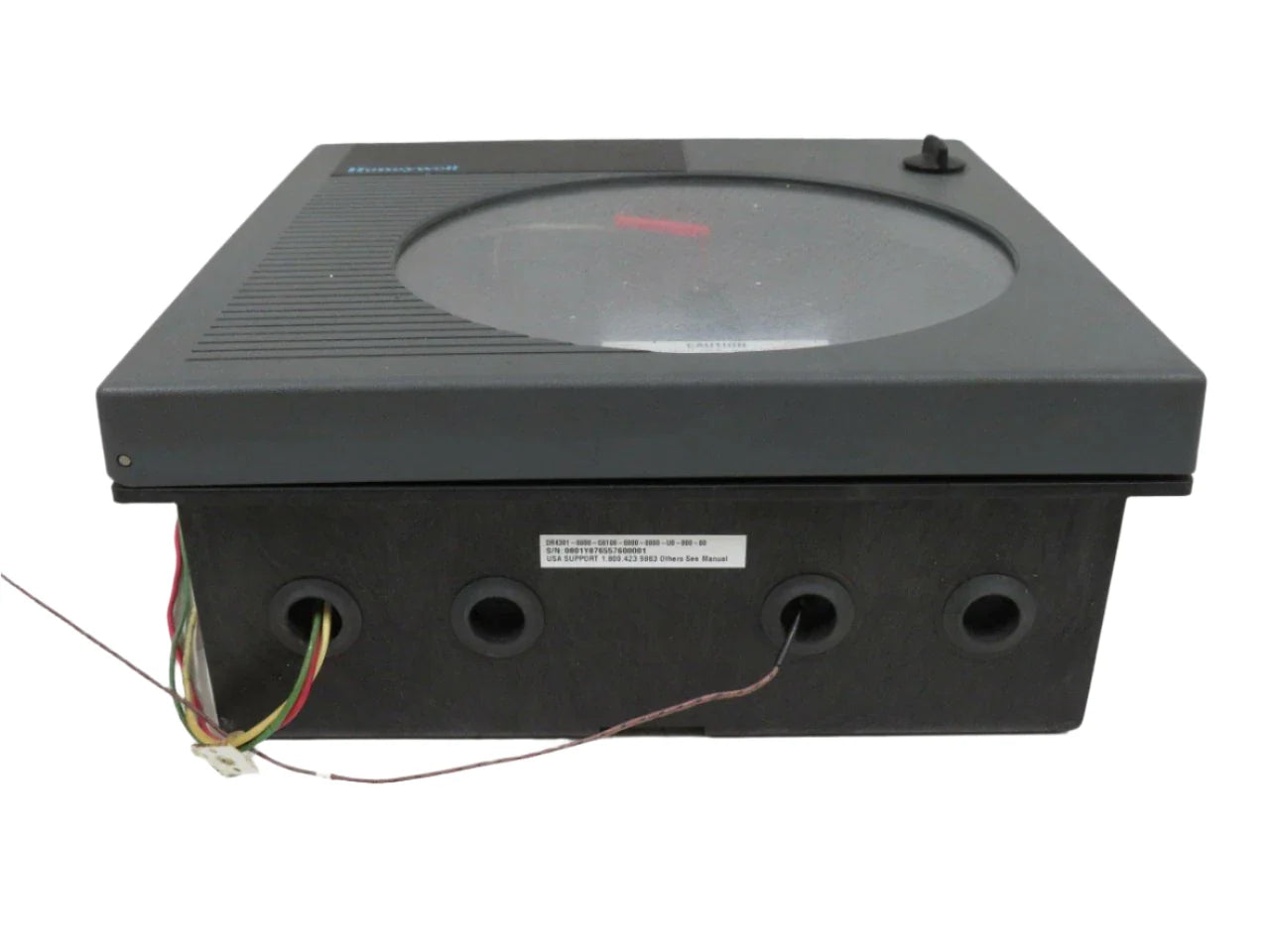

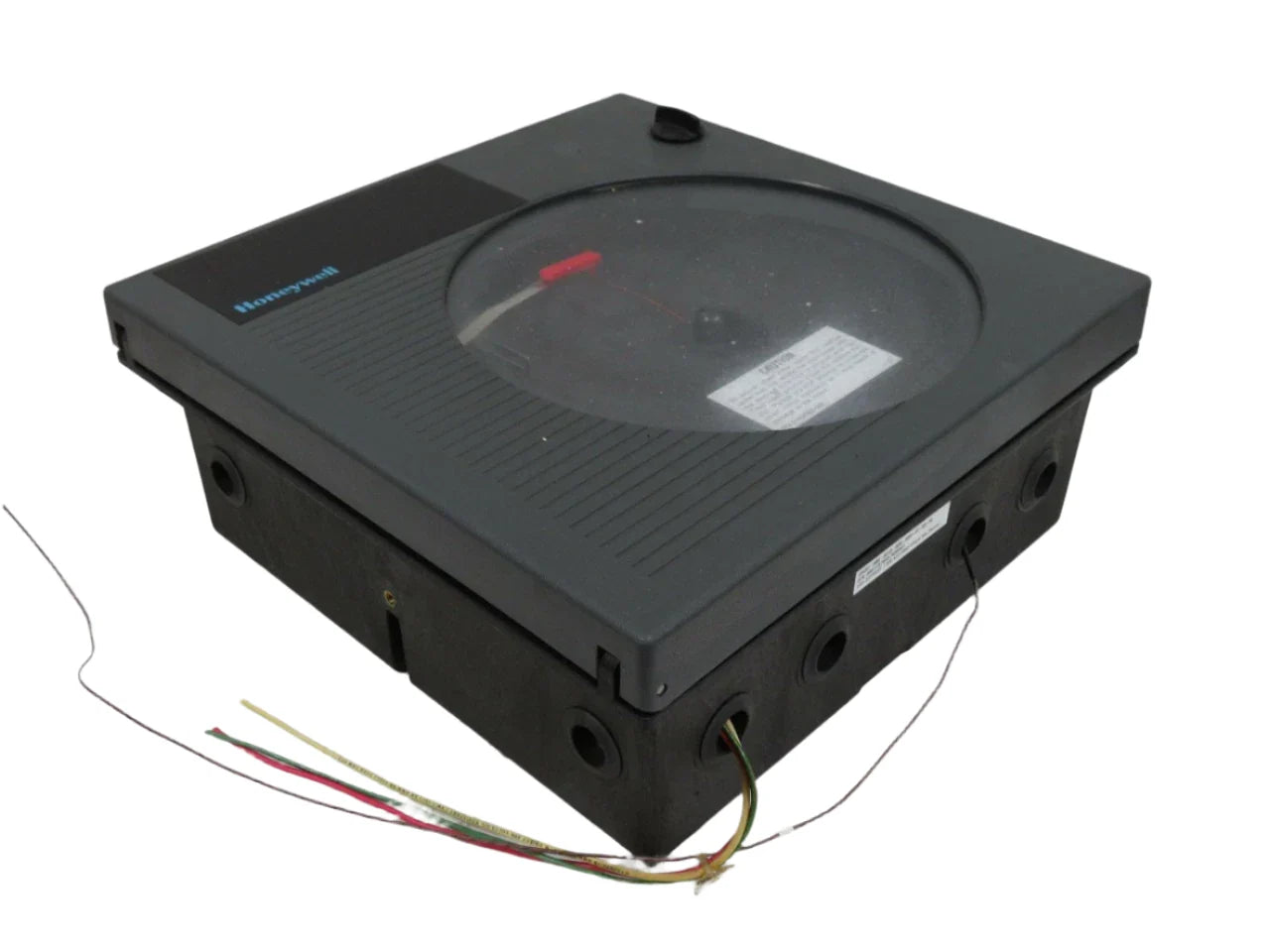

The DR4301-0000-G0100-0000-0000-U0-000-00 is a discontinued, single-pen circular chart recorder for continuous analog process monitoring. It records process variables on a 10‑inch chart using microprocessor-controlled stepper motors. Powered universally from 100–240 VAC, it suits diverse industrial applications from ovens to wastewater systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
DR4301-0000-G0100-0000-0000-U0-000-00 |
| Subcategory |
Circular Chart Recorders |
| Product Family |
DR4300 Circular Chart Recorder |
| Channels |
1 pen |
| Chart Size |
10 in (250 mm), 24‑hour or 7‑day cycle |
| Signal Input |
TC, RTD, mV, volts, 4‑20 mA |
| Control Method |
Microprocessor-driven stepper motors |
| Power Supply |
100–240 VAC, 50/60 Hz, ~28 VA |
| Enclosure Rating |
NEMA 3 / 4X front, rugged plastic door |
| Accuracy |
±0.5% FS (basic), ±0.2% with calibration/display upgrades |
| User Interface |
DIP-switch settings (no digital display) |
| Certifications |
CE, UL, CSA |
| Mounting |
Panel flush or surface mount (cutout ~250 mm diameter) |
| Status |
Discontinued |
| Weight |
~16 lbs (7.3 kg) |
Information About DR4301-0000-G0100-0000-0000-U0-000-00
The DR4301-0000-G0100-0000-0000-U0-000-00 series belongs to Honeywell’s DR4300 family of microprocessor-based circular chart recorders. This specific 24-hour, 7-day basic model features a single microprocessor-driven pen for reliable data logging. It supports universal inputs—including TC, RTD, mV, and current signals—configurable via internal DIP switches. Designed in a rugged NEMA 3/NEMA 4X-rated housing, it is CE, UL, and CSA certified and suitable for harsh process environments.
Key Features:
- Single Pen Recorder: Provides analog trace on 10″ charts for one process variable.
- Universal Input: Accepts TC, RTD, mV, volts, or milliamps for flexible signal sources.
- Microprocessor Control: Stepper motors ensure accurate pen and chart movement.
- 24‑Hour / 7‑Day Chart Cycle: Standard selections for round-the-clock monitoring.
- Universal Power Supply: Operates on 100–240 VAC, 50/60 Hz.
- Durable Enclosure: Rated NEMA 3 or 4X for industrial wash-down environments.
- Configurable via DIP Switches: Easy setup without needing software tools.
- Optional Alarm Outputs: Suitable for basic limit control or retransmission options.
- No Digital Display: Simplified interface with chart-only readout.
- Certified for Safety: Meets CE, UL, CSA requirements for global applications.
The DR4301-0000-G0100-0000-0000-U0-000-00 delivers the reliability and precision required for dependable process recording in industrial environments.
