Description

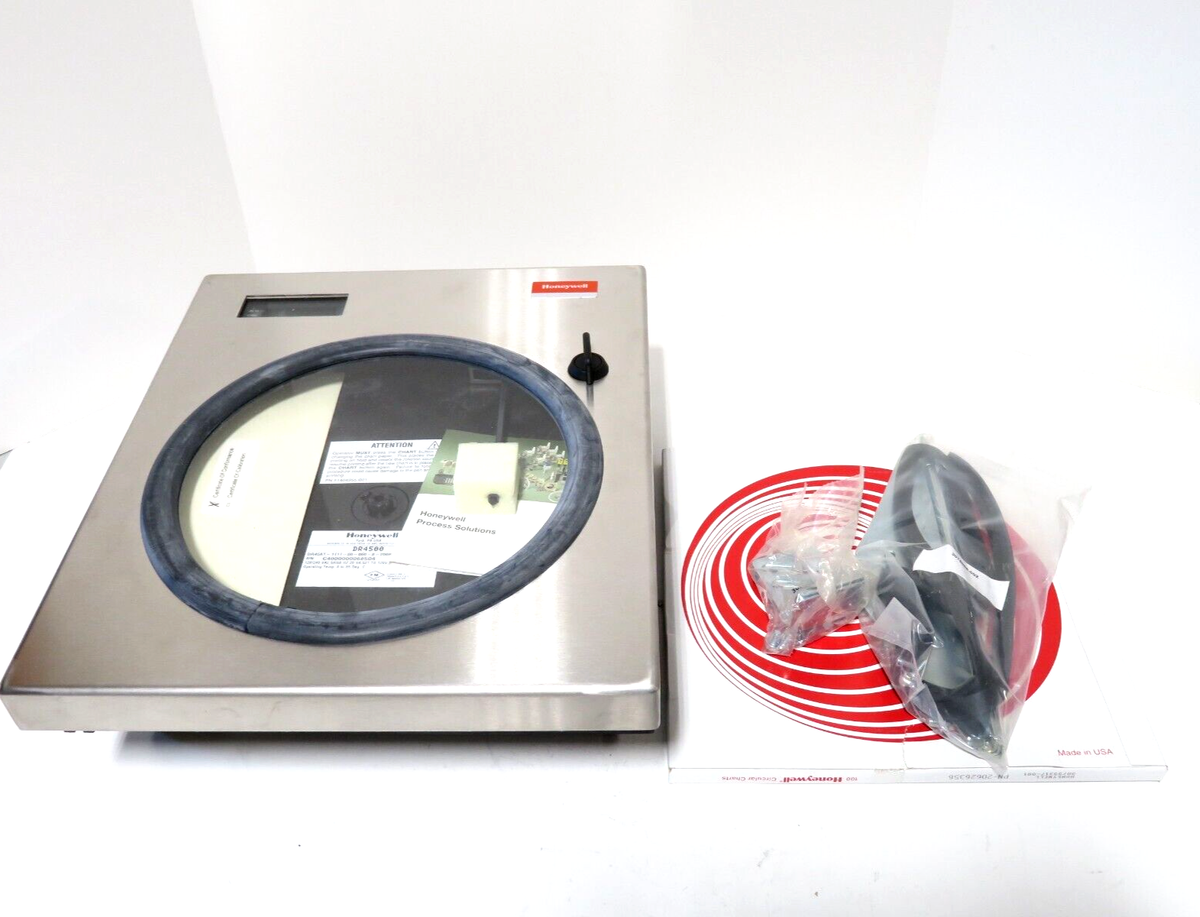

The Honeywell DR45AT-1111-00-000-0-200RB0-0 is a sophisticated Truline 12-inch circular chart recorder. It operates using a microprocessor-based single‑pen stylus to record up to four analog process traces along with alphanumeric data on heat-sensitive chart media. Designed for reliable industrial data logging and documentation in critical process environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Chart Recorder |
| Part Number |
DR45AT-1111-00-000-0-200RB0-0 |
| Subcategory |
Truline Circular Chart Recorder |
| Chart Size |
12-inch Diameter |
| Printhead Type |
Single-pen stylus |
| Channels |
Up to 4 analog input channels |
| Input Types |
T/C, RTD, mV, 0–5 VDC, 4–20 mA, Radimatic |
| Excitation Power |
24 VDC for up to 2 transmitters |
| Printing |
Analog traces + alphanumeric data |
| Enclosure |
Gasketed/glazed door, standard latch |
| Configuration |
Microprocessor-based, user-configurable |
| Weight |
~7.5 kg / ~16.5 lb |
Information About DR45AT-1111-00-000-0-200RB0-0
The DR45AT-1111-00-000-0-200RB0-0 belongs to Honeywell’s DR4500 Truline series, offering robust data acquisition and documentation capabilities for industrial settings. It employs a single-pen printhead to simultaneously produce analog traces and chart annotations, ensuring timing accuracy across all channels. With microprocessor-driven electronics and user-configurable parameters, it supports a broad range of sensor inputs including thermocouples, RTDs, 4–20 mA, mV, and voltage. This model typically features a glazed door, user-friendly interface, and configurable alarms and outputs—ideal for environments where precision recording and compliance are paramount.
Key Features:
- Brand & Part Number: Honeywell DR45AT‑1111‑00‑000‑0‑200RB0 — part of the Truline 12 in series.
- Single-Pen Stylus Printhead: Simultaneously records up to four analog traces and alphanumeric chart data, eliminating alignment errors.
- Multi-Channel Input Support: Accepts thermocouple, RTD, mV, 0–5 VDC, 4–20 mA, Radimatic signals for up to four channels.
- Microprocessor-Based Configuration: Enables user-defined calibration and parameters without hardware changes.
- Alphanumeric Printing: Provides clear display of range markings, engineering units, time/date, channel IDs directly on the chart.
- Built-in Excitation Voltage: Supplies 24 VDC to up to two transmitters, reducing external power requirements.
- Durable Enclosure: Equipped with a gasketed/glazed door and standard latch meeting industrial protection standards.
The DR45AT-1111-00-000-0-200RB0-0 delivers the reliability and precision required for continuous process monitoring and documentation in industrial control applications.
