Description

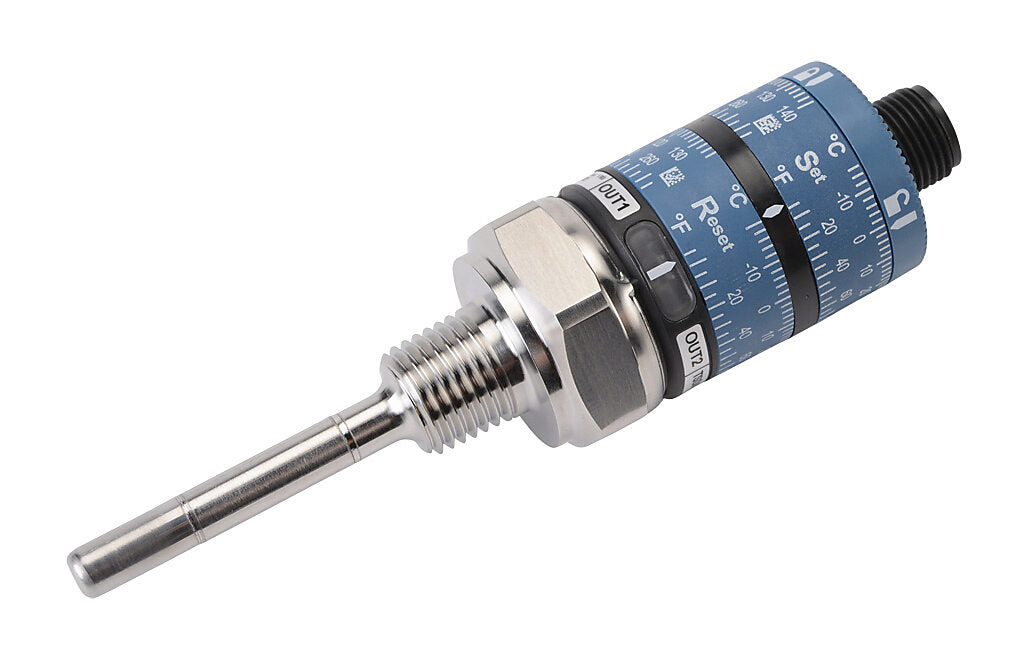

The ProSense TSDA25N-0P-0284-H is a temperature sensor/switch with an integral Pt1000 RTD element designed for precise thermal monitoring and switching control. It features a 50 mm insertion length, 6 mm probe diameter, and a 1/4 in male NPT process connection for secure installation in process systems. With a PNP switch output and complementary N.O./N.C. channels, it provides reliable temperature-based control in industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
ProSense |
| Category |
Sensors & Switches |
| Part Number |
TSDA25N-0P-0284-H |
| Subcategory |
Temperature Switch |
| Sensor Element |
Pt1000 RTD |
| Sensor Type |
M12 probe |
| Accuracy |
Class A |
| Insertion Length |
50 mm |
| Probe Diameter |
6 mm |
| Sheath Material |
316L stainless steel |
| Process Connection |
1/4 in male NPT |
| Temperature Sensing Range |
-4 to 284 °F |
| Setpoint Range |
3 to 284 °F |
| Number of Output Channels |
2 |
| Output Type |
Switch PNP, N.O./N.C. complementary |
| Operating Voltage |
9.6–32 VDC |
| Electrical Connection |
4-pin M12 quick-disconnect |
| IP Rating |
IP67 |
| Additional Information |
Cable purchased separately |
| Weight |
1.00 lbs |
Information About TSDA25N-0P-0284-H
The TSDA25N-0P-0284-H is a ProSense temperature switch built with a Class A accuracy Pt1000 RTD sensing element for stable and repeatable measurement. Its 316L stainless steel sheath supports use in liquids, oils, water, chemicals, gases, and air across a temperature range of -4 to 284 °F. The unit incorporates dual output channels with complementary PNP switching (N.O./N.C.) for flexible control integration. Designed with a 4-pin M12 quick-disconnect and IP67 protection rating, it operates on 9.6–32 VDC and is suitable for industrial automation environments where reliable temperature switching is required.
Key Features:
-
Pt1000 RTD Sensing Element: Provides accurate and stable temperature measurement with Class A accuracy.
-
Integrated Temperature Switch: Combines sensing and switching in one compact M12 probe design.
-
Dual PNP Outputs: Offers complementary N.O./N.C. switching for flexible control configurations.
-
Wide Temperature Range: Operates from -4 to 284 °F with adjustable setpoints from 3 to 284 °F.
-
316L Stainless Steel Sheath: Ensures corrosion resistance in demanding process media.
-
1/4 in Male NPT Connection: Enables secure threaded installation in tanks, pipes, and manifolds.
-
IP67 Protection Rating: Suitable for washdown and harsh industrial environments.
-
9.6–32 VDC Operation: Compatible with standard industrial DC power systems.
The TSDA25N-0P-0284-H delivers the reliability and precision required for industrial temperature monitoring and switching control applications.
