Description

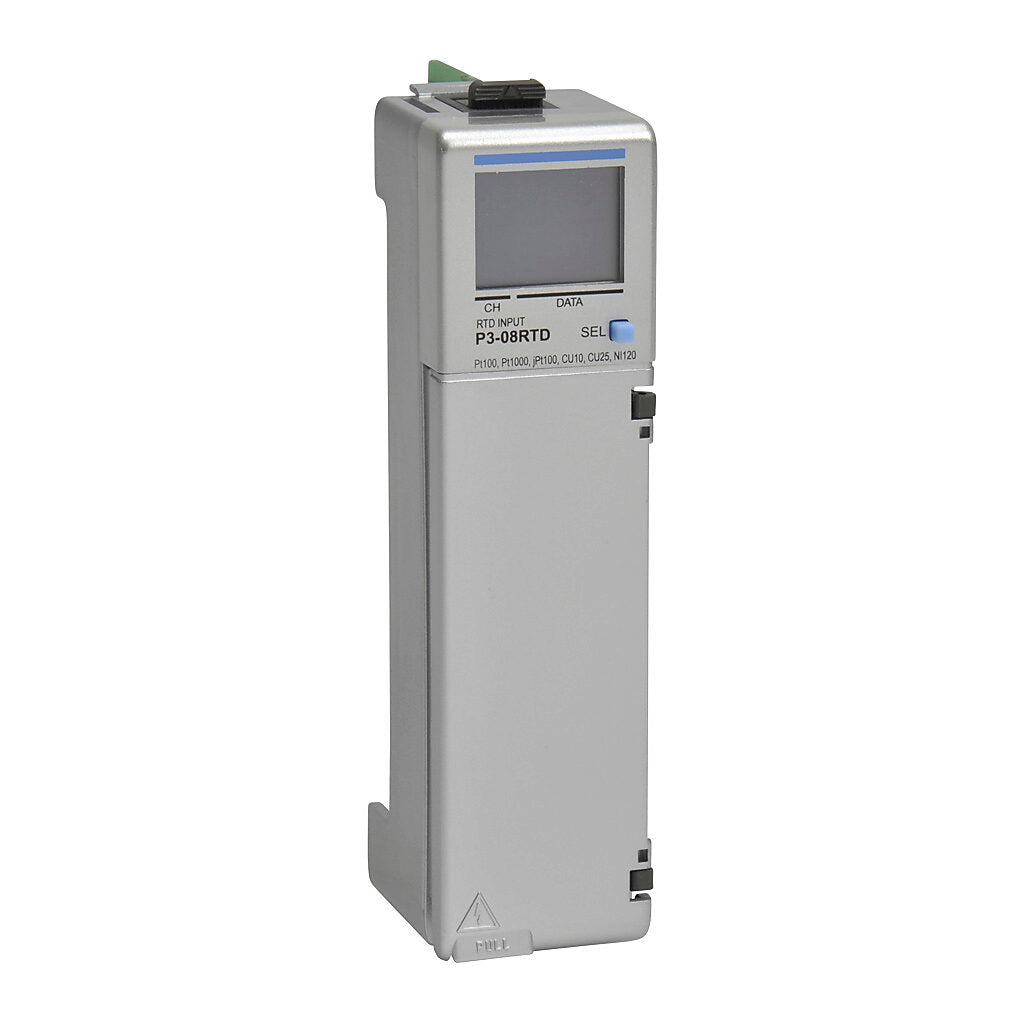

The Automation Direct P3-08RTD is a temperature input module designed for the Productivity3000 PLC platform. It enables precise RTD signal acquisition for industrial temperature monitoring applications. This module installs in any local, expansion, or remote I/O base and features a removable terminal block for field wiring.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
PLC Modules |
| Part Number |
P3-08RTD |
| Subcategory |
Temperature Input Modules |
| Series |
Productivity3000 |
| Input Type |
RTD Temperature Input |
| Module Location |
Any I/O slot in local, expansion, or remote base |
| Terminal Type |
20-position removable terminal block (included) |
| Enclosure Type |
Open Equipment |
| Operating Temperature |
0° to 60°C (32° to 140°F) |
| Storage Temperature |
-20° to 70°C (-4° to 158°F) |
| Humidity |
5 to 95% (non-condensing) |
| Vibration |
IEC60068-2-6 (Test Fc) |
| Shock |
IEC60068-2-27 (Test Ea) |
| Heat Dissipation |
0.33 W |
| Agency Approvals |
UL508 (E157382), UL1604 (E200031), CE (EN61131-2) |
| Hazardous Location Rating |
Class 1, Division 2, Groups A, B, C, D |
| Field Wiring |
Removable terminal block (included) |
| ZIPLink Compatibility |
Not Compatible |
| Weight |
107.8 g (3.79 oz) |
Information About P3-08RTD
The P3-08RTD is part of the Automation Direct Productivity3000 series and is engineered for accurate resistance temperature detector (RTD) input processing. It can be installed in any I/O slot within local, expansion, or remote bases of a Productivity3000 system, offering flexible system configuration. The module features electronic keying to the backplane and includes a 20-position removable terminal block for secure field wiring connections. Designed as open equipment, it meets UL508, UL1604, and CE (EN61131-2) standards and is suitable for Class 1, Division 2 hazardous or non-hazardous locations.
Key Features:
- Productivity3000 Compatibility: Installs in any local, expansion, or remote P3000 I/O base.
- RTD Temperature Input Module: Designed for precise resistance temperature signal monitoring.
- Electronic Module Keying: Ensures correct placement within the backplane.
- 20-Position Removable Terminal Block: Simplifies installation and maintenance.
- Hazardous Location Rated: Suitable for Class 1, Division 2, Groups A, B, C, and D environments.
- Industrial Environmental Ratings: Complies with IEC vibration and shock standards.
- Low Heat Dissipation: Rated at 0.33 W for efficient operation.
- Certified and Approved: UL508, UL1604, and CE (EN61131-2) compliant.
The P3-08RTD delivers the reliability and precision required for industrial RTD-based temperature monitoring in Productivity3000 automation systems.
