Description

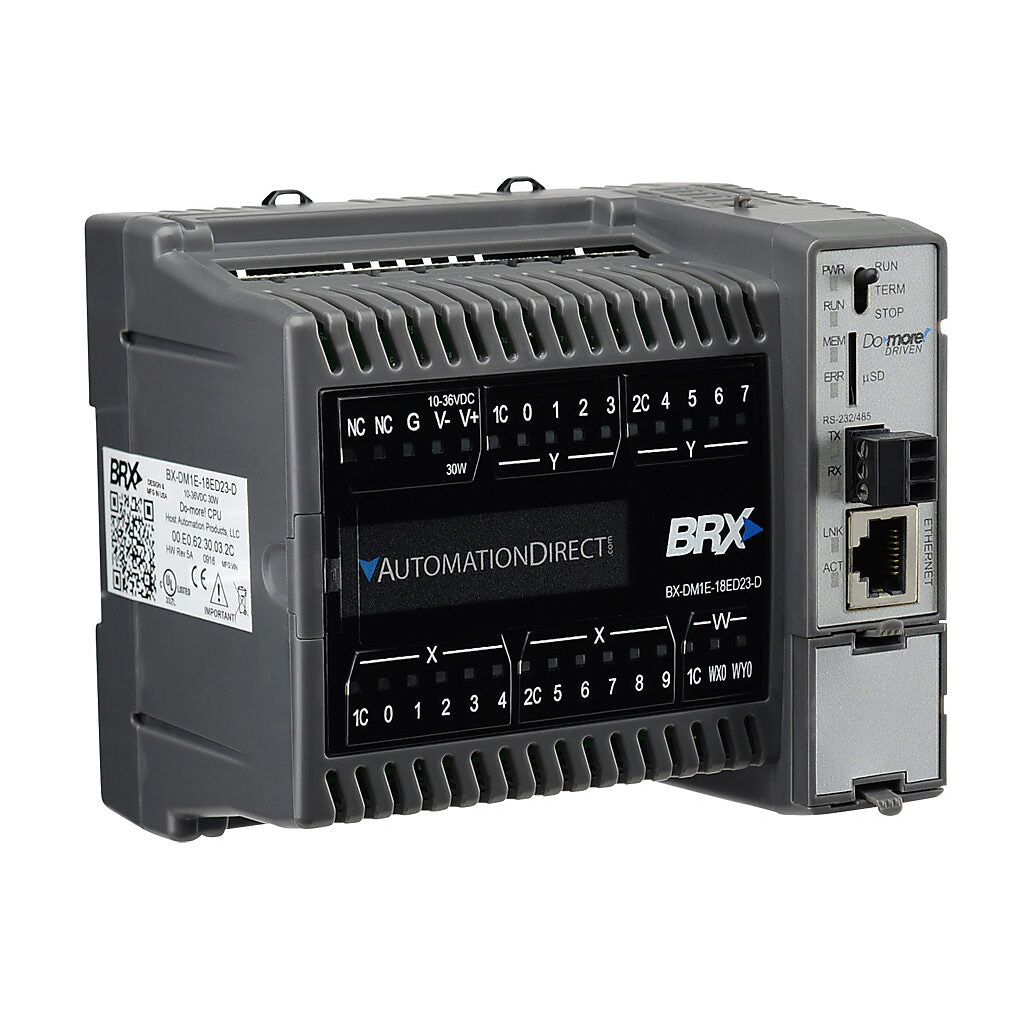

The Automation Direct BX-DM1E-18ED23-D is a BRX Do-more PLC featuring integrated discrete and analog I/O in a compact controller platform. It operates on 12–24 VDC power and includes Ethernet and serial communication ports for network connectivity. This unit combines 10 discrete inputs, 8 sourcing outputs, and single-channel analog input and output for versatile industrial control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
PLC Controllers |
| Part Number |
BX-DM1E-18ED23-D |
| Subcategory |
Compact PLCs |
| Series |
BRX Do-more |
| Supply Voltage |
12–24 VDC |
| Discrete Inputs |
10-Point (AC/DC) |
| Discrete Outputs |
8-Point (Sourcing) |
| Analog Inputs |
1 Channel (Current/Voltage) |
| Analog Outputs |
1 Channel (Current/Voltage) |
| Ethernet Port |
Yes |
| Serial Port |
Yes |
| Battery Backup |
Yes |
| Memory Expansion |
MicroSD Card Slot |
| Mounting Type |
DIN Rail or Panel Mount |
| Application |
Industrial Machine and Process Control |
| Weight |
1.3 lb |
Information About BX-DM1E-18ED23-D
The BX-DM1E-18ED23-D is part of the Automation Direct BRX Do-more PLC family, engineered for flexible machine and process automation. It integrates 10 AC/DC discrete inputs, 8 sourcing discrete outputs, one analog input channel supporting current or voltage signals, and one analog output channel for precise process control. The controller includes built-in Ethernet and serial ports for programming, remote monitoring, and system integration. Additional features such as battery backup and a microSD card slot provide data retention and program storage capabilities within industrial environments.
Key Features:
- Integrated I/O Configuration: Includes 10 discrete inputs, 8 sourcing outputs, and analog I/O channels.
- 12–24 VDC Operation: Designed for standard industrial DC power systems.
- Ethernet Connectivity: Enables network programming and remote communication.
- Serial Communication Port: Supports integration with additional devices and legacy systems.
- Analog Input (1 Channel): Accepts current or voltage signals for process measurement.
- Analog Output (1 Channel): Provides current or voltage output for controlled applications.
- Battery Backup: Preserves data and program memory during power interruptions.
- MicroSD Card Slot: Allows external program storage and data logging expansion.
The BX-DM1E-18ED23-D delivers the reliability and precision required for compact, network-enabled PLC control in industrial automation systems.
