Description

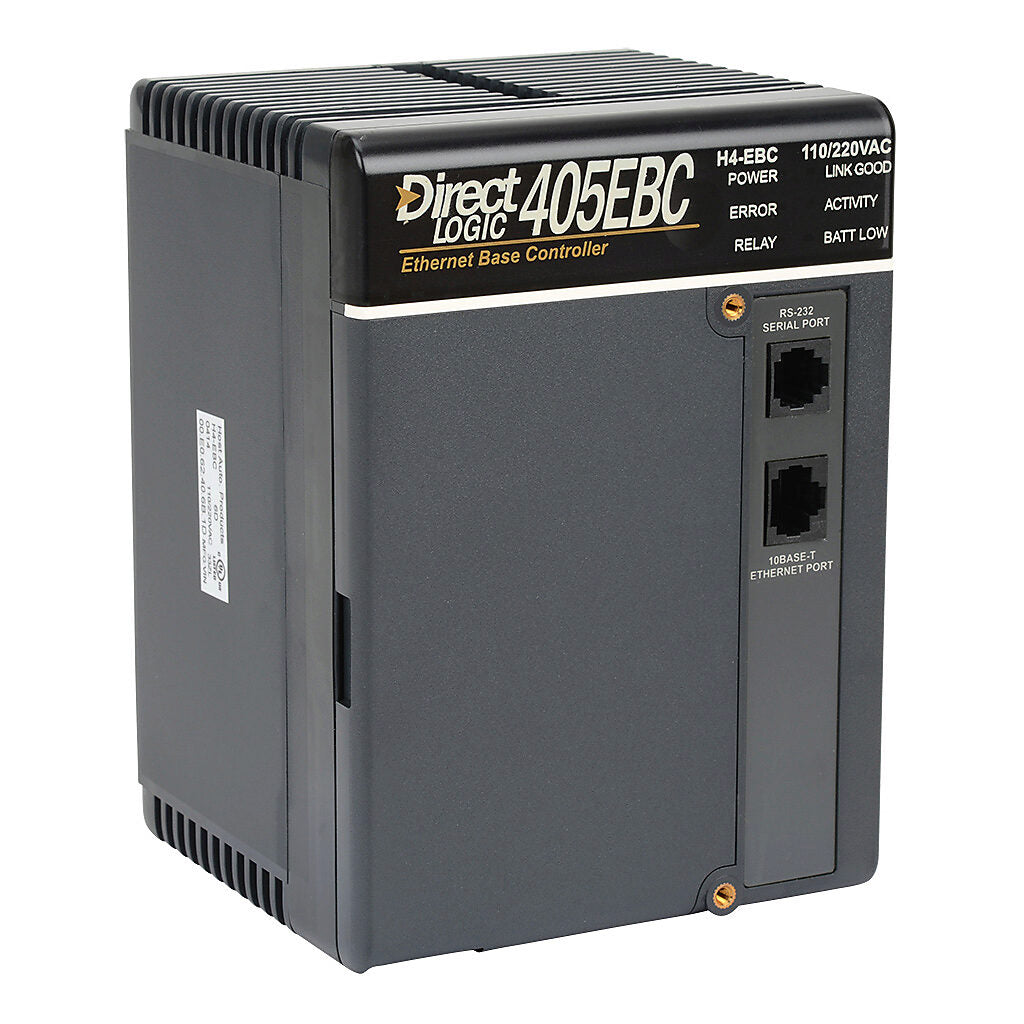

The Automation Direct H4-EBC is a DirectLOGIC DL405 Ethernet base controller designed to provide network connectivity for PLC systems. It features a 10/100Base-T RJ45 Ethernet port supporting TCP/IP and IPX protocols with data rates up to 10 Mbps. This module enables remote programming, monitoring, and data exchange within industrial automation networks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
PLC Modules |
| Part Number |
H4-EBC |
| Subcategory |
Ethernet Base Controllers |
| Series |
DirectLOGIC DL405 |
| Communication Port |
(1) Ethernet 10/100Base-T (RJ45) |
| Supported Protocols |
TCP/IP, IPX |
| Port Speed |
Up to 10 Mbps |
| Programming Software |
DirectSOFT v4.0 or later |
| Battery Installed |
Yes |
| Replacement Battery |
D3-D4-BAT |
| Generic Battery |
CR17335SE-T4 |
| UN Number |
UN3091 |
| Hazard Type |
Lithium Batteries |
| Lithium Content |
0.52 |
| Packaging Instructions |
970 |
| Mounting Type |
Rack/Panel Mounted |
| Weight |
1.1 lb |
Information About H4-EBC
The H4-EBC is part of the DirectLOGIC DL405 series and functions as an Ethernet base controller for distributed PLC installations. It includes one Ethernet 10/100Base-T (RJ45) port and supports TCP/IP and IPX communication protocols for integration into industrial LAN environments. The controller is programmable using DirectSOFT programming software version 4.0 or later, allowing configuration and system management across the network. A lithium battery is installed for memory retention, with replacement options including the D3-D4-BAT or CR17335SE-T4 battery types.
Key Features:
- DL405 Ethernet Base Controller: Designed for DirectLOGIC DL405 PLC systems.
- 10/100Base-T Ethernet Port: Provides RJ45 network connectivity.
- TCP/IP and IPX Protocol Support: Enables flexible industrial network communication.
- Up to 10 Mbps Port Speed: Supports reliable data transfer across automation networks.
- DirectSOFT Compatibility: Programmable with DirectSOFT v4.0 or later.
- Battery-Backed Memory: Includes installed lithium battery for data retention.
- Replaceable Battery Option: Compatible with D3-D4-BAT and CR17335SE-T4 batteries.
- Panel-Mounted Industrial Design: Suitable for control cabinet installation.
The H4-EBC delivers the reliability and precision required for Ethernet-based PLC communication and distributed control applications.
