Description

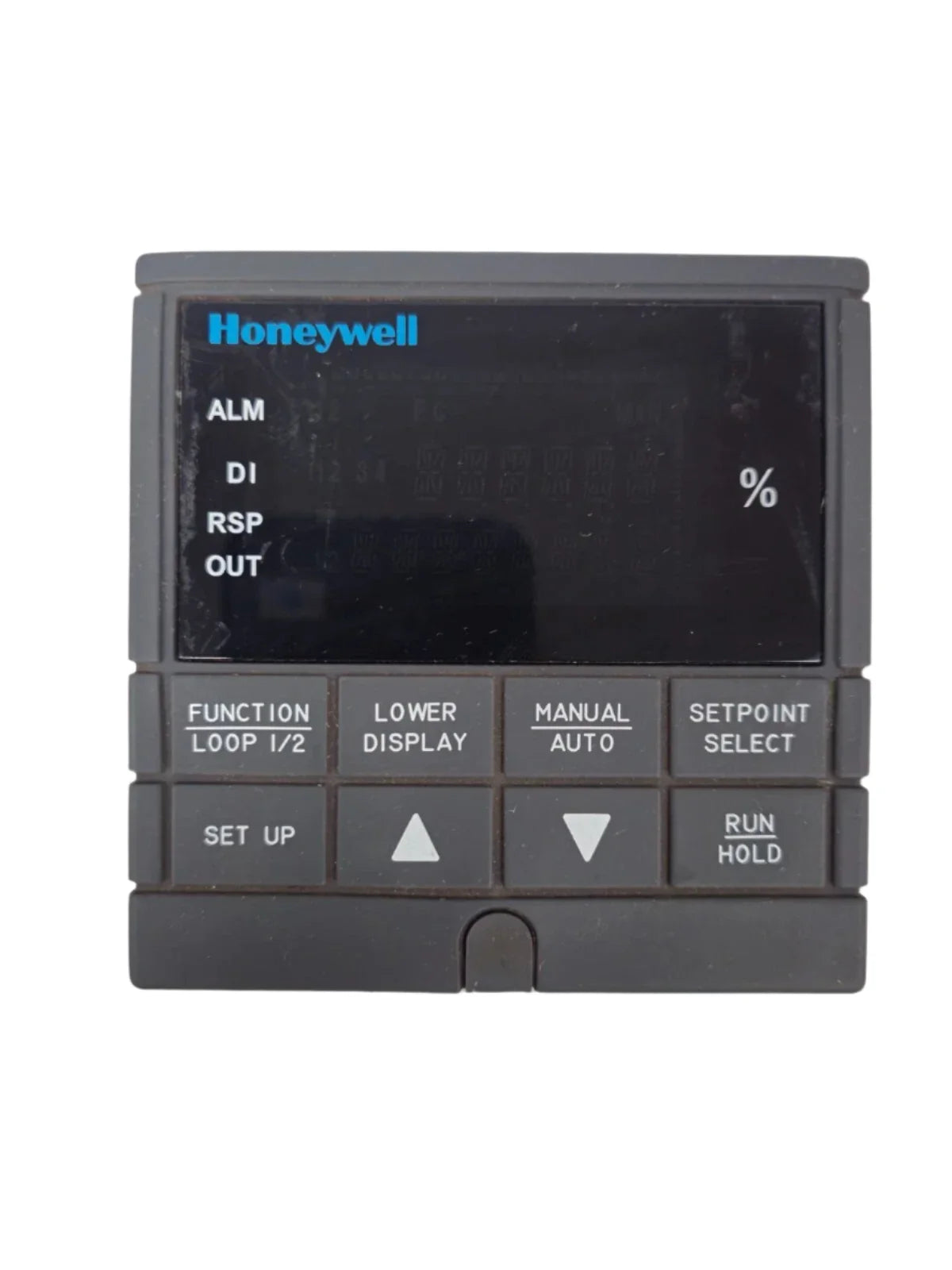

The DC330B-KE-000-20-000000-00-0 is a discontinued process controller from Honeywell’s DC330 series, equipped with current output and relay alarms. It supports a wide range of process variable inputs, including thermocouples, RTDs, voltage, and current signals.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
DC330B-KE-000-20-000000-00-0 |
| Subcategory |
Temperature/Process Control |
| Product Type |
Process Controller |
| Input Signal Types |
T/C, RTD, Radiamatic, mV, 0–5V, 1–5V, 0–20 mA, 4–20 mA |
| Output 1 |
Current Output with Alarm 1 |
| Output 2 |
Relay-E-M OUT2 |
| Digital Inputs |
None |
| Software Functionality |
Standard Functions (includes Accutune II) |
| Power Supply |
90 to 264 VAC |
| Bezel Material |
Gray Elastomer |
| Display & Interface |
English language configuration |
| Mounting Style |
Panel mount |
| Product Status |
Discontinued |
| Weight |
2.11 lbs (approx. 0.96 kg) |
Information About DC330B-KE-000-20-000000-00-0
The DC330B-KE-000-20-000000-00-0 is part of Honeywell's DC330 family of basic temperature and process controllers, optimized for reliable single-loop control in industrial applications. It is powered by 90–264 VAC and supports versatile analog signal inputs such as thermocouples, RTDs, millivolt, and milliamp ranges. The unit includes Output #1 configured as a current output with Alarm 1, and Output #2 as an electromechanical relay output. The embedded Accutune II algorithm ensures stable loop performance without manual intervention, and the controller is presented with a durable gray elastomer bezel and English-language configuration.
Key Features:
- Universal Input Support: Accepts T/C, RTD, Radiamatic, mV, 0–5V, 1–5V, 0–20 mA, and 4–20 mA signals.
- Advanced Tuning: Features standard software with Accutune II for auto-tuning and stability.
- Alarm Functionality: Output #1 provides current output combined with Alarm 1 for safety monitoring.
- Relay Output: Output #2 configured as electromechanical relay for basic control actions.
- Power Supply Range: Operates on 90 to 264 VAC, suitable for global installations.
- User Interface: Supplied in English with clear menu structure for operator convenience.
- Panel Mount Design: Includes a gray elastomer bezel for easy installation in control panels.
- No Digital Inputs: Designed for analog signal monitoring only; no discrete inputs present.
- Legacy Performance: Reliable for replacement in legacy systems using DC330 architecture.
- Durable Construction: Enclosed in robust housing for industrial control environments.
The DC330B-KE-000-20-000000-00-0 delivers essential control and alarm capabilities for temperature and process variables with simplicity and dependable operation.
