Description

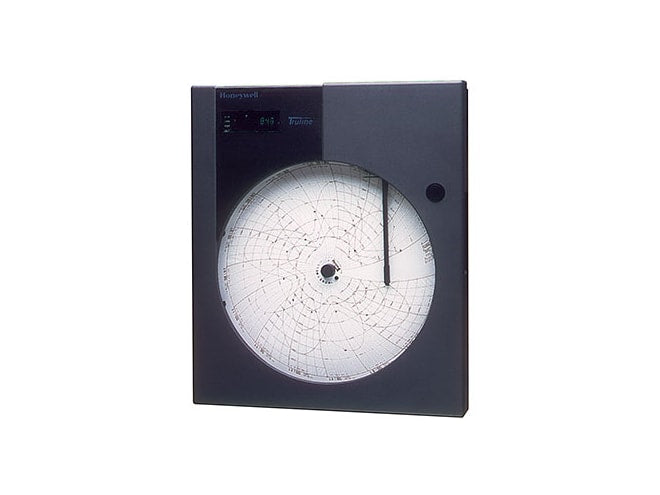

The Honeywell DR45AT-1000-00-000-0-000P00-0 is a circular chart recorder designed for accurate recording of process variables in industrial control systems. This Truline-series recorder supports multiple input types, including thermocouples, RTDs, voltage, and current signals. It is used in applications requiring continuous, reliable visual documentation of process conditions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Data Control System |
| Part Number |
DR45AT-1000-00-000-0-000P00-0 |
| Subcategory |
Chart Recorder |
| Series |
Truline DR45 |
| Recorder Type |
Circular chart recorder |
| Chart Size |
12-inch circular |
| Input Types |
Thermocouple, RTD, 0–5 VDC, 4–20 mA |
| Input Configuration |
Field selectable |
| Mounting Type |
Panel mount |
| Recording Method |
Continuous analog recording |
| Application |
Process monitoring and documentation |
| Weight |
12.00 lbs |
Information About DR45AT-1000-00-000-0-000P00-0
The DR45AT-1000-00-000-0-000P00-0 is part of Honeywell’s Truline DR45 series of circular chart recorders developed for precision data recording. It features a robust panel-mounted enclosure with a 12-inch circular chart format for clear trend visualization. The recorder is compatible with a wide range of field-selectable input signals, allowing integration into diverse process control environments. Typical usage includes industrial plants, laboratories, and utilities where permanent process records and compliance documentation are required.
Key Features:
- Truline DR45 series: Designed for industrial-grade circular chart recording applications.
- 12-inch circular chart: Provides clear, easy-to-read process trend documentation.
- Multi-signal input support: Accepts thermocouple, RTD, 0–5 VDC, and 4–20 mA inputs.
- Field-selectable input configuration: Allows flexible setup without hardware changes.
- Panel-mount design: Enables secure installation in control cabinets and panels.
- Continuous data recording: Produces permanent visual records of process conditions.
- Industrial construction: Built for reliable operation in demanding environments.
The DR45AT-1000-00-000-0-000P00-0 delivers the reliability and precision required for continuous process monitoring and data recording in industrial control systems.
