Description

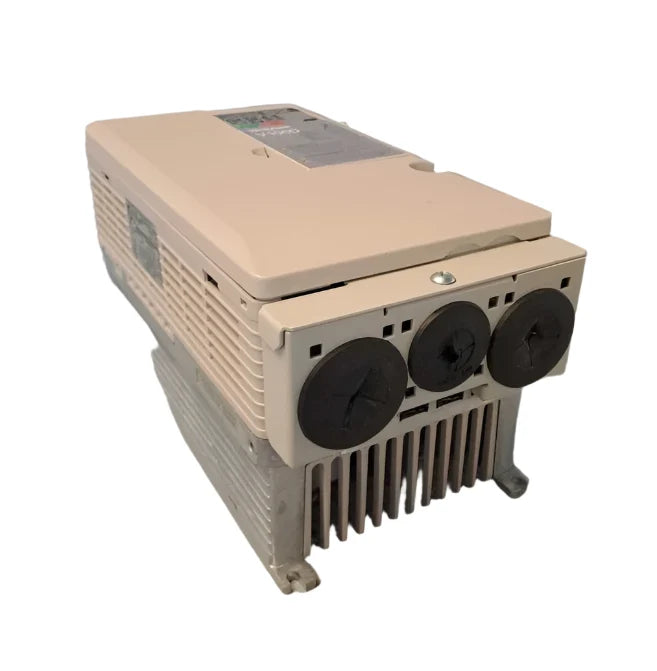

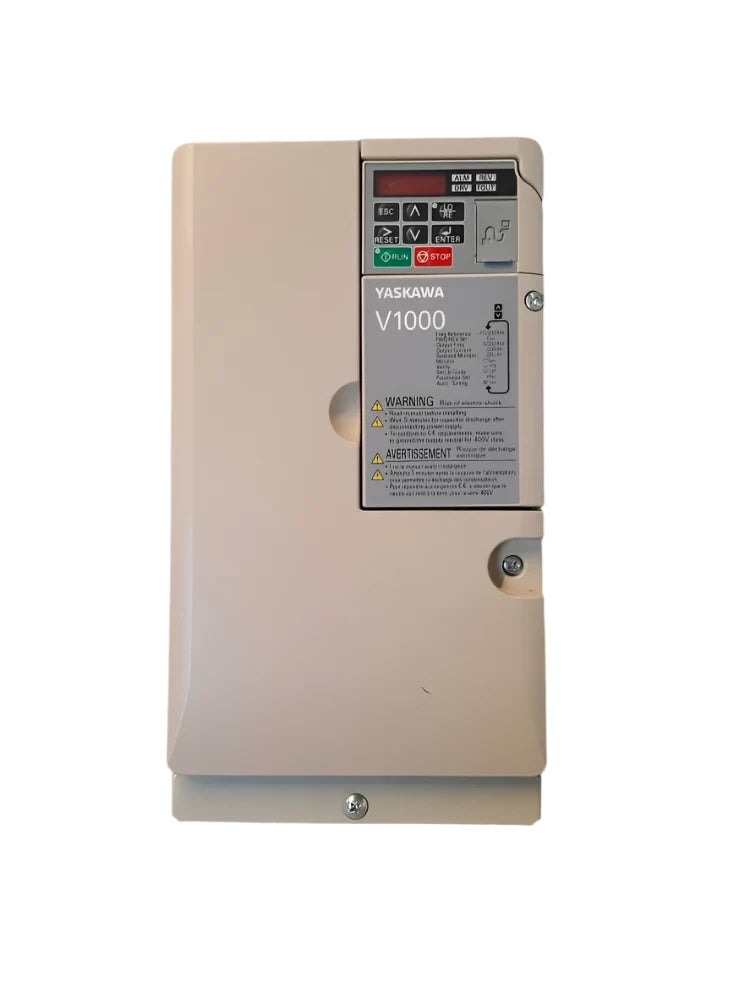

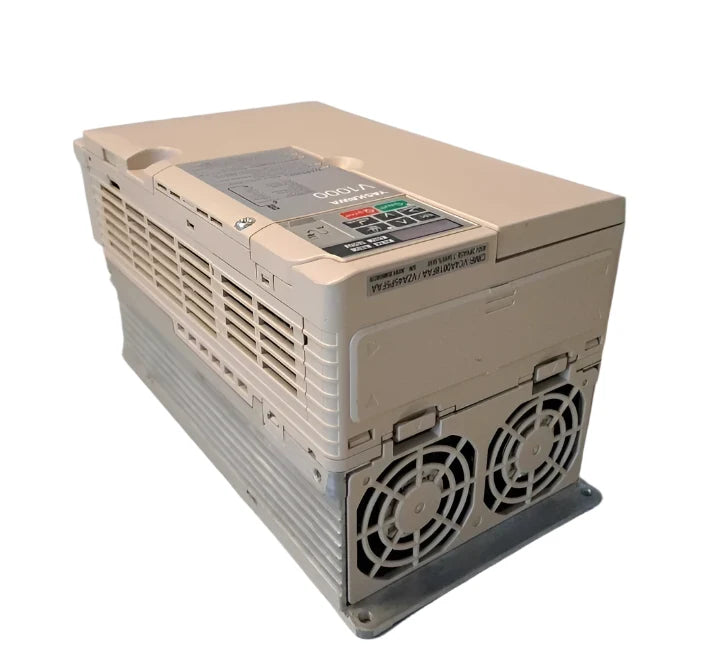

The Yaskawa CIMR-VC4A0018FAA is a high-performance AC drive from the V1000 series, engineered for general-purpose industrial applications. It supports both induction and permanent magnet motors, featuring open-loop vector control, online auto-tuning, and integrated safety inputs (Safe Torque Off). Designed to maximize efficiency, it reduces braking time by up to 50% and enhances low-speed performance, making it ideal for a wide range of automation scenarios.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
Drives |
| Part Number |
CIMR-VC4A0018FAA |
| Subcategory |
Drive |
| Series |
V1000 |
| Motor Compatibility |
Induction & Permanent Magnet Motors |
| Input Voltage Range |
380–480 VAC |
| Input Phase |
3-phase |
| Input Frequency |
50/60 Hz |
| Output Voltage |
0–480 VAC |
| Output Frequency |
0–400 Hz |
| Output Current (ND/HD) |
17.5 A / 14.8 A |
| Motor Power (ND/HD) |
7.5 kW / 5.5 kW |
| Control Method |
Open-loop vector |
| Safety Function |
Safe Torque Off (SIL2, PL d) |
| Analog Inputs / Outputs |
2 AI / 1 AO |
| Digital Inputs / Outputs |
6 DI / 3 DO |
| Enclosure Rating |
IP20 / UL Type 1 |
| Cooling Method |
Coldplate / Air cooling |
| Max Humidity |
95% (non-condensing) |
| Operating Temperature |
-10 °C to +40 °C |
| Max Altitude (w/o Derating) |
1000 m |
| Max Altitude (with Derating) |
3000 m |
| Compliance |
UL, CE, RoHS, UKCA |
| Weight |
8.38 lbs (3.6 kg) |
Information About CIMR-VC4A0018FAA
This inverter offers versatile motor control capabilities, accommodating 3-phase motors and delivering robust output for motors up to 7.5 kW (ND) or 5.5 kW (HD). It is built with IP20-rated housing for cabinet installation and supports a wide ambient temperature range from -10°C to +40°C, with additional derating up to 3000 m altitude. The V1000 platform meets global certifications including CE, UL, cUL, UKCA, and RoHS, ensuring compliance and reliability across international installations. The drive features SIL2 / PL d level safety compliance and supports up to 6 digital inputs, 2 analog inputs, and 3 digital outputs for flexible control. Designed with a coldplate or air-cooled system, it efficiently dissipates heat while minimizing energy consumption.
Key Features:
- Motor Compatibility: Supports Induction Motors and Permanent Magnet Motors
- Control Type: Open-Loop Vector Control
- Safety: Safe Torque OFF (STO), SIL2, PL d certified
- Auto-Tuning: Online auto-tuning for performance optimization
- Braking: High flux braking for 50% shorter deceleration
- Output Frequency: Up to 400 Hz
- Inputs/Outputs: 6 × Digital Inputs, 2 × Analog Inputs, 3 × Digital Outputs, 1 × Analog Output
- Mounting: Panel-mounted with IP20 / UL Type 1 enclosure
- Environment: Operates in up to 95% humidity, -10°C to 40°C, and 3000 m altitude with derating
- Cooling Method: Coldplate or forced air cooling
The CIMR-VC4A0018FAA delivers the reliability and precision required for modern industrial automation, HVAC, and material handling systems.
