Description

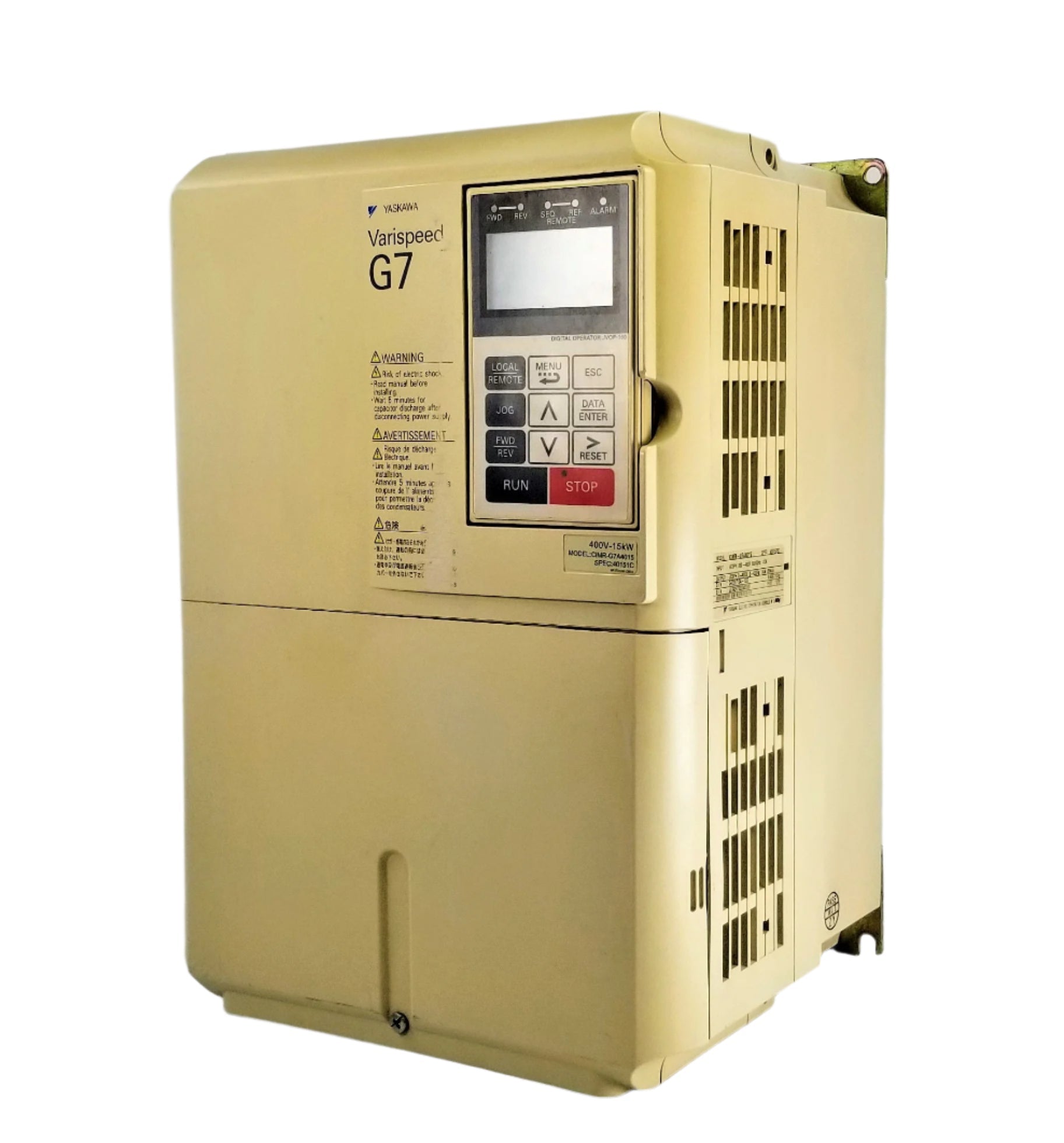

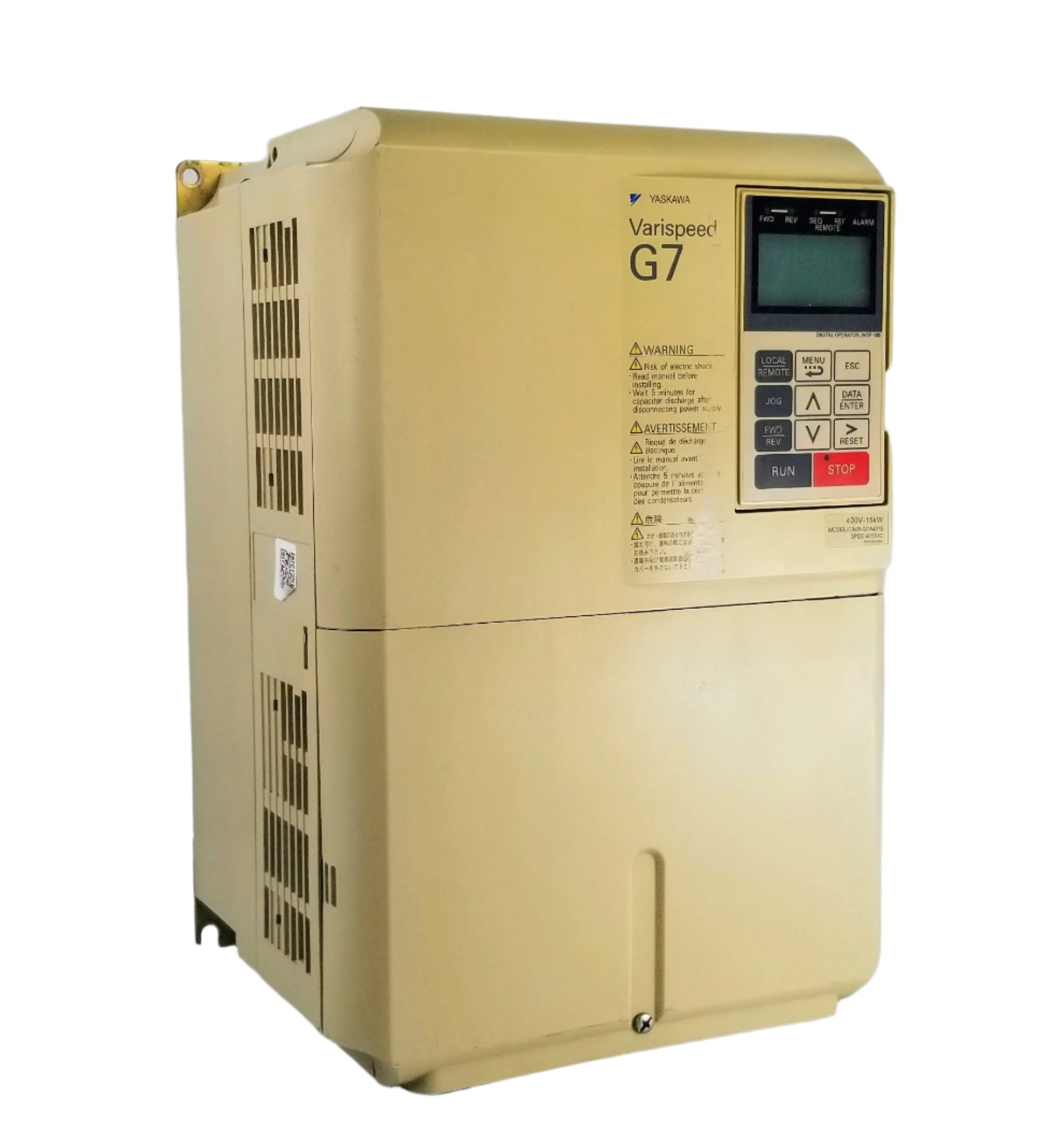

The CIMR-G7A4015 is a 15 kW high-performance AC drive from Yaskawa’s Varispeed G7 series, developed for three-phase 400 V industrial motor applications. It supports output frequencies up to 400 Hz and delivers 34 A output current, optimized for smooth torque control and flexible automation use. This model is now discontinued by the manufacturer but widely used in legacy systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
|
| Part Number |
CIMR-G7A4015 |
| Subcategory |
Drive |
| Series |
G7 (Varispeed G7)
|
| Rated Motor Output |
15 kW (25 HP)
|
| Rated Output Current |
34 A
|
| Input Voltage |
3-phase 380–480 V AC, 50/60 Hz
|
| Output Voltage |
3-phase 0–480 V AC
|
| Output Frequency |
0–400 Hz
|
| Control Method |
V/f and vector control
|
| Enclosure Type |
Open chassis (IP00)
|
| Dimensions (HxWxD) |
350 mm × 240 mm × 207 mm
|
| Output Capacity |
26 kVA
|
| Motor Capacity Class |
400 V-class
|
| Mounting Type |
Panel-mounted (wall installation)
|
| Digital Interface |
Keypad operator with display
|
| Status |
Discontinued by Manufacturer
|
| Weight |
23.00 lbs (≈10.4 kg)
|
Information About CIMR-G7A4015
The CIMR-G7A4015 is part of the Varispeed G7 family, designed to meet demanding drive control requirements in global industrial environments. Operating with a 3-phase 380–480 VAC input, it delivers a continuous output of 15 kW (25 HP) and up to 34 A current with a maximum frequency of 400 Hz. This model features advanced control technologies like vector control and high-frequency carrier modes for quieter, more precise motor operation. It is enclosed in a 400 V-class chassis structure with global standard compliance, and while discontinued, it remains functional in numerous field installations worldwide.
Key Features:
- Rated Power Output: Delivers 15 kW output (25 HP) with robust torque capability.
- Rated Output Current: Provides 34 A continuous motor current for heavy-duty operations.
- Voltage Range: Accepts 3-phase 380–480 VAC input power at 50/60 Hz.
- Frequency Range: Supports motor frequency control from 0 to 400 Hz.
- Control Modes: Offers vector control and V/f control for accurate speed and torque regulation.
- Drive Enclosure: Chassis-type frame with IP00 protection for panel-mounted installations.
- Dimensions: Measures 350 mm (H) × 240 mm (W) × 207 mm (D), making it compact for its power class.
- User Interface: Comes with built-in keypad and display for diagnostics and setup.
- Weight: Weighs approximately 23 lbs (≈10.4 kg), allowing for easy integration.
- Application Scope: Ideal for fans, pumps, conveyors, paper machinery, and HVAC systems.
The CIMR-G7A4015 delivers the performance, versatility, and safety expected from industrial-grade vector control drives.
