Description

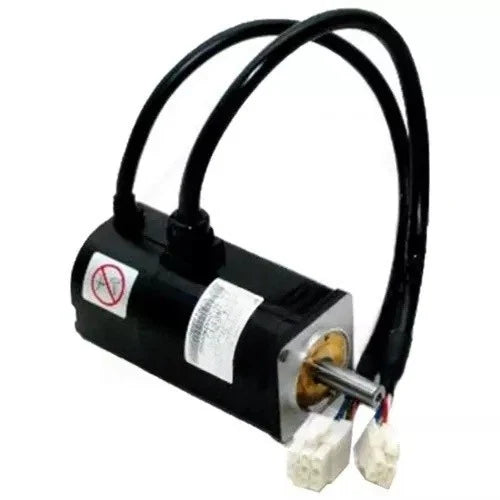

The Yaskawa SGM-01U3B4L is a brushless DC servo motor designed for precise motion control in compact industrial automation systems. It delivers 100 W of power at 3000 RPM while operating on a 200 V supply, providing stable torque and accurate positioning. This motor is well suited for applications requiring continuous-duty performance and encoder-based feedback.

Technical Specifications

Information About SGM-01U3B4L

The SGM-01U3B4L is part of Yaskawa’s SGM series within the Sigma family of servo motors, engineered for high-precision and reliable operation. It features a compact 40 mm frame size with natural air cooling for efficient thermal management. The motor is equipped with an absolute encoder to support accurate position feedback and repeatable motion control. It is commonly used in small machinery, precision assembly equipment, and automated systems where space efficiency and control accuracy are critical.

Key Features:

• Brushless DC Motor Design: Enables efficient, low-maintenance operation
• Compact Frame Size: 40 mm motor frame supports space-constrained installations
• Rated Output Power: Delivers 100 W for continuous-duty applications
• High-Speed Performance: Rated speed of 3000 RPM for dynamic motion control
• Absolute Encoder Feedback: Provides accurate position information and repeatability
• Class B Insulation: Rated up to 130 °C for reliable thermal performance
• Keyed Shaft Configuration: Supports secure mechanical coupling

The SGM-01U3B4L delivers the reliability and precision required for compact servo-driven motion control applications.
