Description

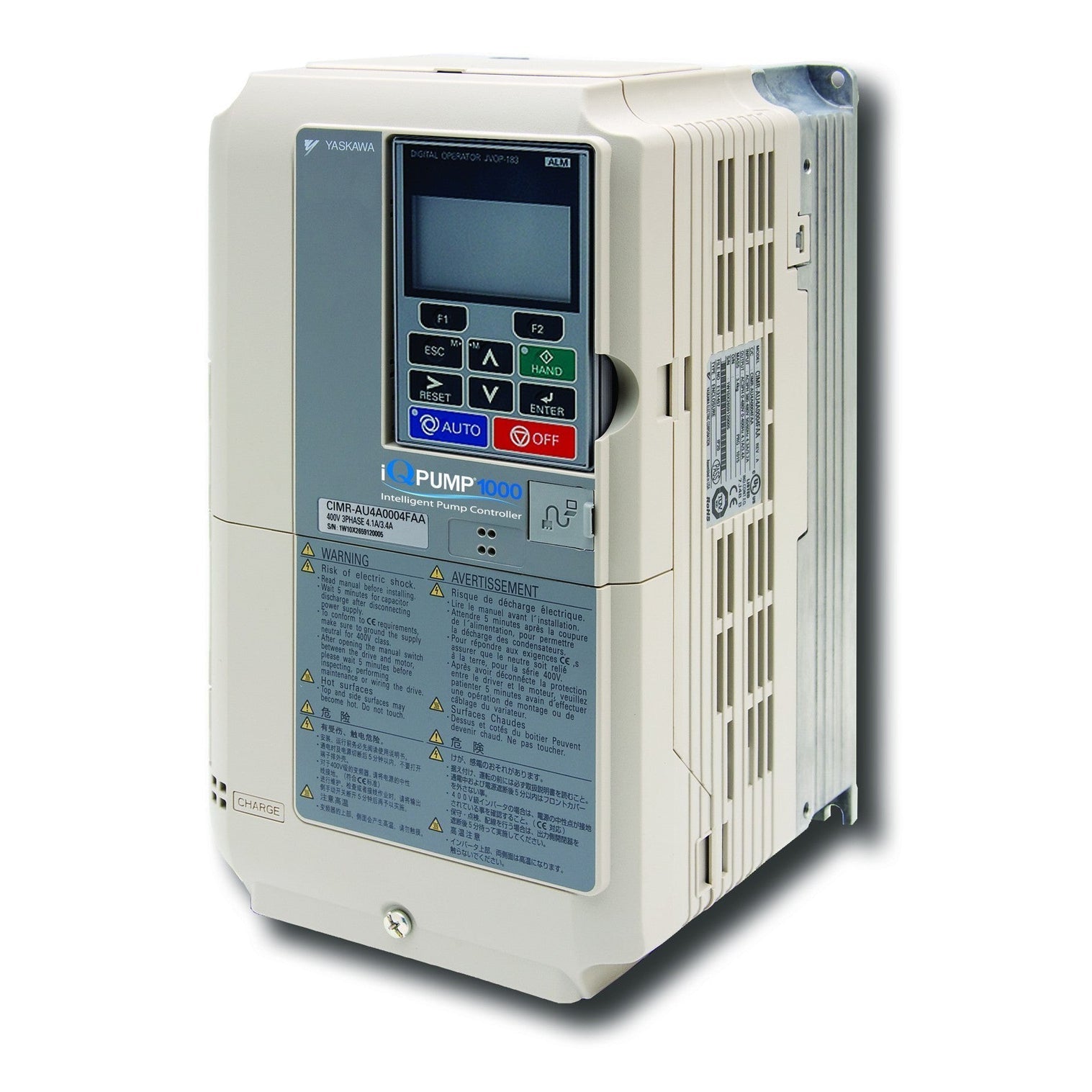

The CIMR‑PW2A0008FAA is a Yaskawa iQpump 1000 variable frequency drive (VFD) delivering up to 2 HP (≈ 1.5 kW) at 8 A three-phase, 200–240 VAC. It is engineered specifically for pump control applications, combining robust protection, intelligent control features, and user-friendly interface. Ideal for both retrofit and new installations, it adapts seamlessly across various pump-driven systems. Designed to replace phase converters, it simplifies single-phase to three-phase motor operations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
|
| Part Number |
CIMR-PW2A0008FAA |
| Subcategory |
Intelligent Pump VFD |
| Product Line |
iQpump 1000 Series
|
| Power Output |
2 HP (~1.5 kW)
|
| Rated Current |
8 A |
| Input Voltage |
3‑Phase 200–240 VAC
|
| Operating Frequency |
50 Hz / 60 Hz
|
| Phase |
Three‑phase input, three‑phase output
|
| Enclosure Code |
Standard (NEMA 1 / IP20)
|
| Control Interface |
5‑line, 16‑character display
|
| Pump Control Modes |
Simplex, multiplex, preset macros
|
| Protection Features |
Loss of prime, dry-run, minimum flow, hard current limit
|
| Additional Functionalities |
Sleep mode, pre-charge control, alternation
|
| Noise Control |
Dynamic noise-reduction algorithms
|
| Application |
Communication interfaces available
|
| Networking |
Communication interfaces available
|
| Weight |
7.5 lbs |
Information About CIMR-PW2A0008FAA
The CIMR‑PW2A0008FAA is part of the Yaskawa iQpump 1000 series—a family of smart pump drives intended for pump operators and system integrators. It supports a three-phase 200–240 VAC input and delivers 8 A continuous output, corresponding to approx. 2 HP rating. Built with pre-configured pump macros and dynamic motor protection, it offers features like loss-of-prime detection, sleep-mode minimum flow, and pipe pre‑charge control. The unit includes a 5‑line, 16‑character operator interface and supports networking capabilities. It can also eliminate the need for phase converters when converting from single‑phase to three‑phase pump motors.
Key Features:
- Power Capacity: 2 HP (max) output at 8 A continuous current.
- Input Voltage: Three-phase 200–240 VAC standard industrial supply.
- Pump‑Specific Control: Includes preset macros for common pump operation modes.
- Motor Protection: Built-in dry-run (loss-of-prime), low‑flow sleep mode, and overcurrent cut-off.
- Pre-Charge Mode: Automatically controls pipe filling to prevent pressure spikes.
- User Interface: 5‑line, 16‑character display for easy configuration and monitoring.
- Phase Converter Replacement: Enables single-phase to three-phase motor operation without external converters.
- Dynamic Noise Control: Limits audible and electrical noise during pump operation.
- Networking Options: Supports communication integration with control systems.
The CIMR‑PW2A0008FAA delivers the reliability and precision required for intelligent pump drive performance.
