Description

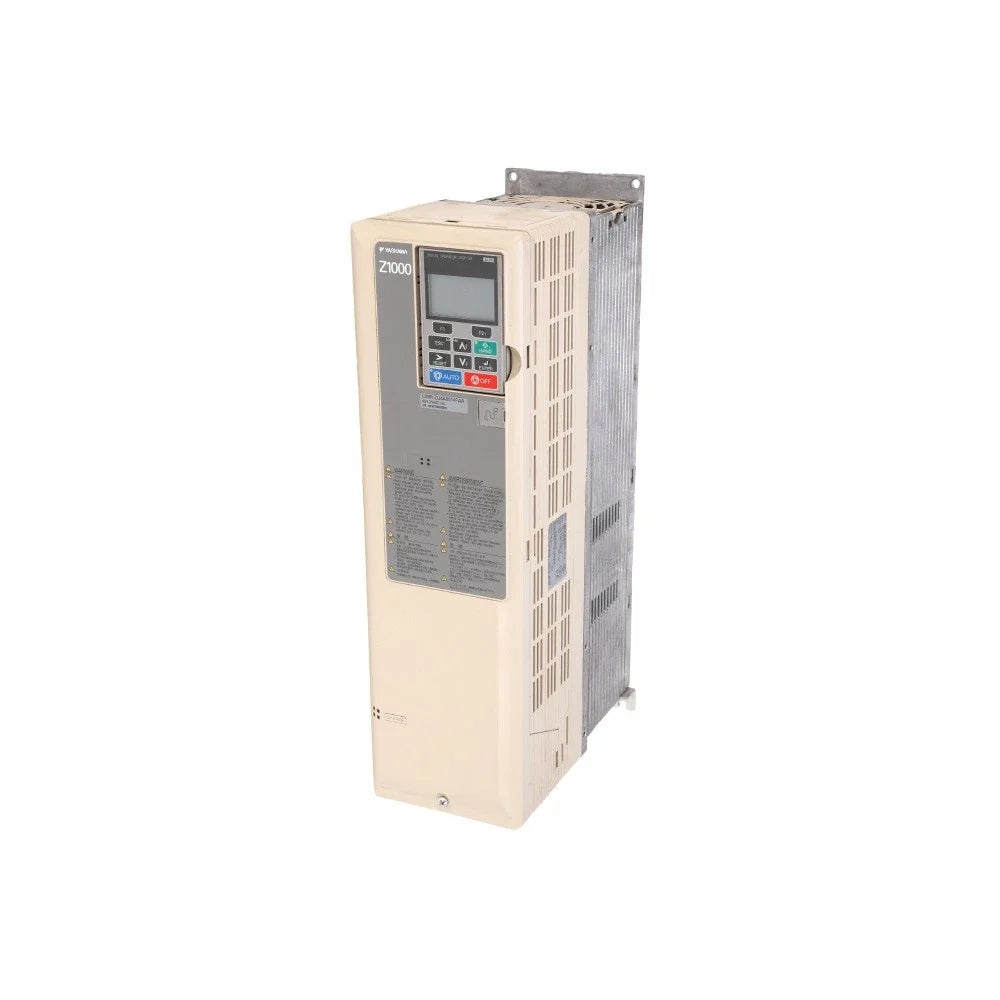

The CIMR-ZU4A0014FAA is a 10 HP, three-phase variable frequency drive from Yaskawa’s Z1000 series, tailored for HVAC and building automation. It converts 380–480 VAC to controlled motor output, enabling precise speed control. Featuring a built-in keypad and real-time clock, it suits applications like fans, pumps, and cooling towers.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
|
| Part Number |
CIMR-ZU4A0014FAA |
| Subcategory |
Drive |
| Series |
Yaskawa Z1000 HVAC VFD
|
| Rated Power |
10 HP (7.5 kW)
|
| Output Current |
14 A
|
| Input Voltage |
380–480 VAC, 3-phase
|
| Control Modes |
Open-loop vector and V/Hz scalar
|
| Brake Type |
DC injection braking
|
| Display |
5-line, 16-character alphanumeric LCD
|
| Keypad |
Hand/Off/Auto interface
|
| Real-Time Clock |
Built-in for event time-stamping
|
| Communications |
BACnet, Modbus/Memobus, Metasys, Apogee FLN
|
| EMI/RFI Filter |
IEC 61800-3 Category 2 compliant
|
| Enclosure Rating |
IEC 61800-3 Category 2 compliant
|
| Mounting |
Chassis mount
|
| Status |
Discontinued |
| Weight |
25.00 lbs |
Information About CIMR-ZU4A0014FAA
The CIMR-ZU4A0014FAA is a chassis-mount, open-loop vector and V/Hz scalar drive with a 14 A output rating and DC injection braking. It includes a 5-line, 16-character alphanumeric LCD keypad supporting Hand‑Off‑Auto mode and timestamped event logging. Designed for low-harmonic, HVAC environments, it contains internal EMI/RFI filters and built-in BACnet, Modbus/Memobus, Metasys, and Apogee FLN communications. Packaged in a NEMA 1/IP20 enclosure, it weighs approximately 19.5 lb when shipped (25 lb net).
Key Features:
- 10 HP, 14 A Output: Ideal for HVAC motor loads.
- Input Range 380–480 VAC: Compatible with 50/60 Hz supply systems.
- LCD Keypad with H/O/A: Offers real-time control and scheduling.
- Built-in RTC: Enables timed start/stop and event logging.
- EMI/RFI Filter: Complies with IEC 61800‑3 Category 2.
- HVAC Communication Protocols: Includes embedded BACnet, Modbus/Memobus, Metasys, Apogee FLN.
- DC Injection Braking: Smooth motor stop without brake hardware.
- Open-loop Vector/V/Hz Control: Provides flexible motor control options.
- Low Harmonics: 5% line reactor reduces input distortion.
- Rugged Packaging: Protected chassis, NEMA 1/IP20, chassis mount design.
The CIMR‑ZU4A0014FAA delivers dependable HVAC motor control with intuitive operation and strong communication options.
