Description

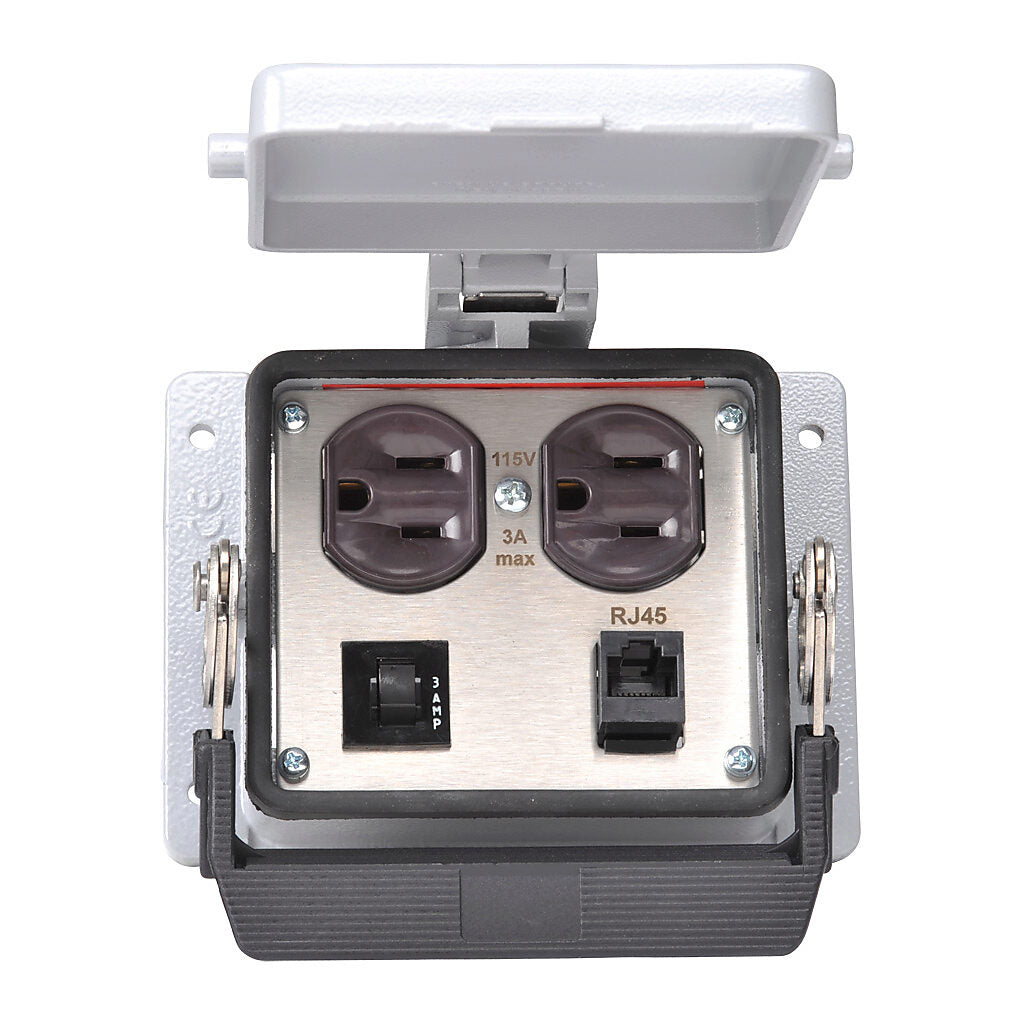

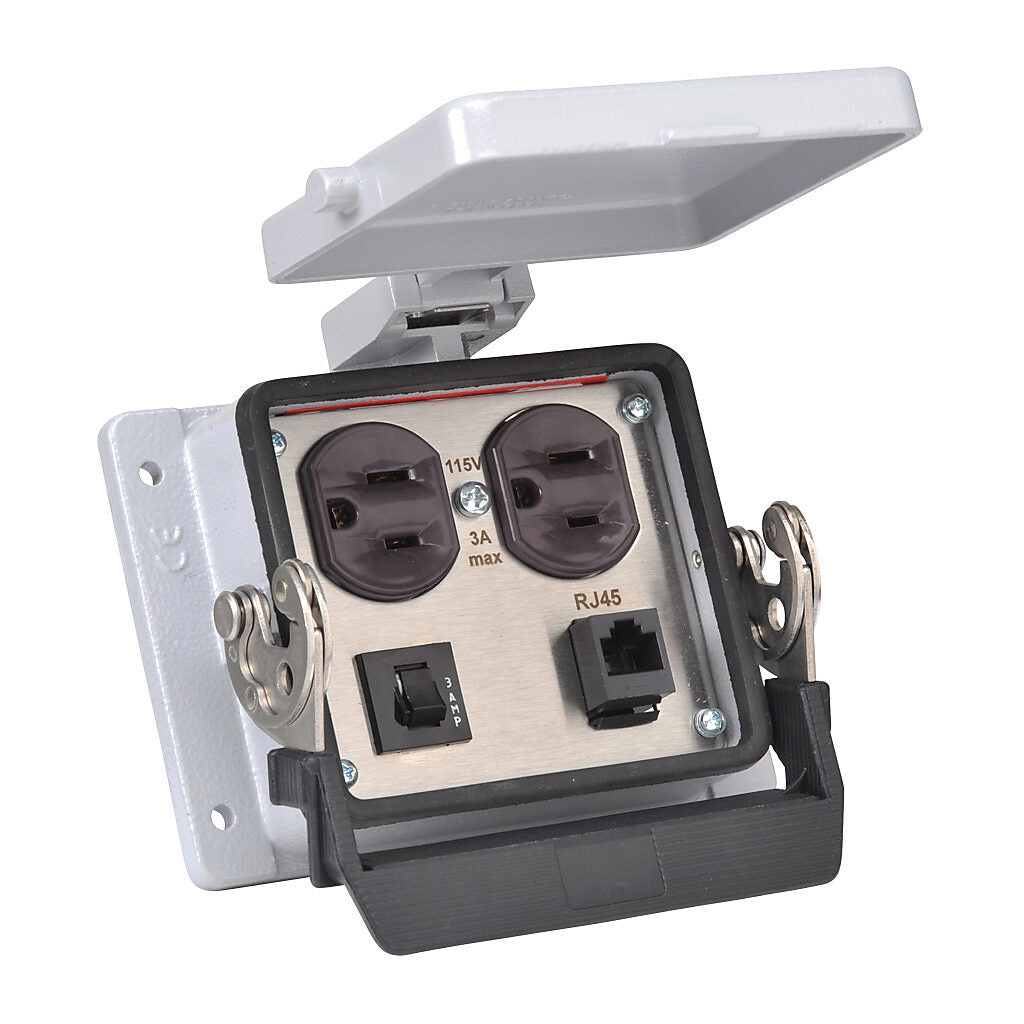

The Automation Direct ZP-PDA-32-201 is a ZIPport panel interface connector designed to provide convenient power and Ethernet access through enclosure walls. It integrates a duplex 120 VAC outlet, an RJ45 Ethernet pass-through port, and a 3A circuit breaker in a rugged 32B housing. The ZP-PDA-32-201 is built for industrial control panels requiring safe, external access to power and network connections.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Industrial Connectivity |
| Part Number |
ZP-PDA-32-201 |
| Subcategory |
Panel Interface Connectors |
| Series |
ZIPport |
| Item Type |
Connector |
| Connector Type |
Panel interface |
| Connector Housing Size |
32B |
| Housing Material |
Heavy-duty die-cast aluminum |
| Power Outlet |
Duplex 120 VAC |
| Communication Port |
(1) RJ45 Ethernet, female exterior/female interior |
| Circuit Breaker |
3A circuit breaker |
| Lever Type |
Single |
| Includes |
Gasket |
| Mounting |
Panel-mounted enclosure interface |
| Weight |
3.0 lb |
Information About ZP-PDA-32-201

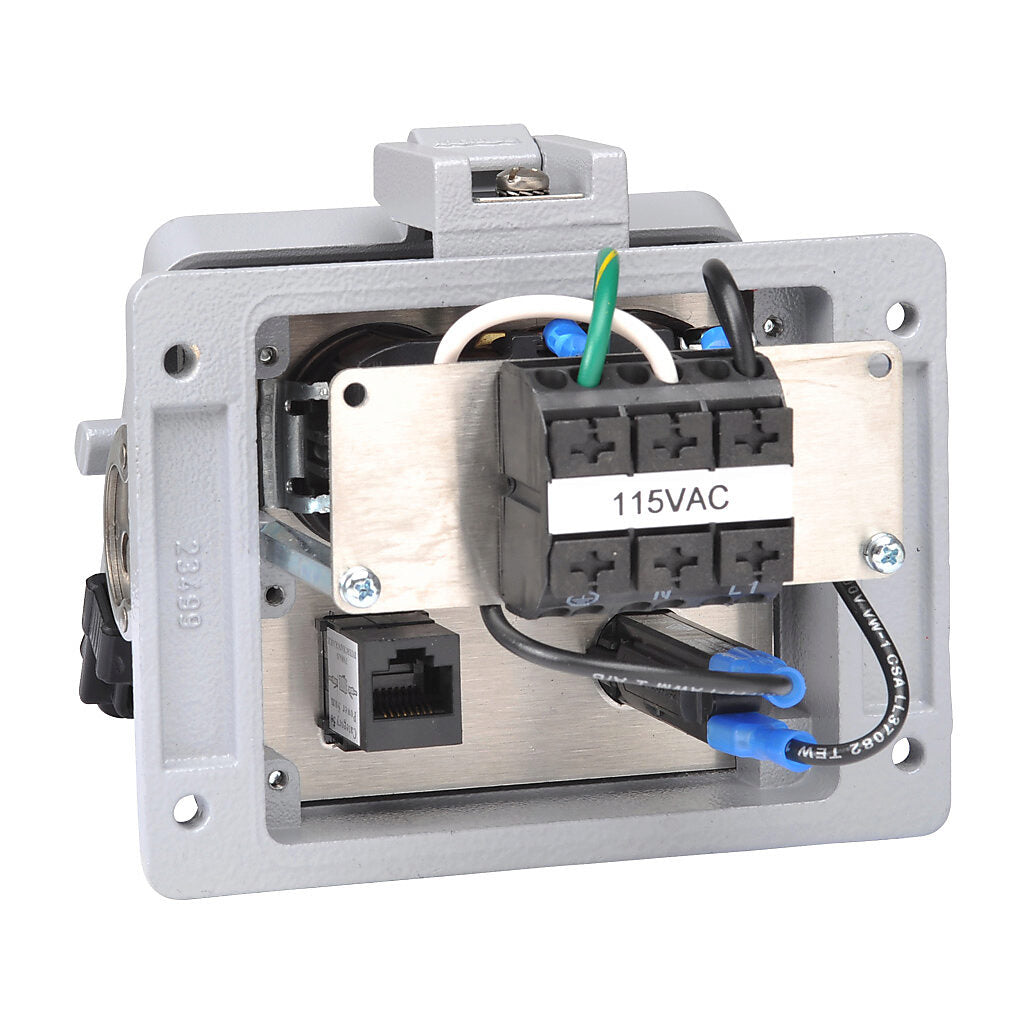

The ZP-PDA-32-201 is part of the ZIPport heavy-duty panel interface connector series engineered for industrial enclosures. It combines a duplex 120 VAC power outlet with a female-to-female RJ45 Ethernet port, allowing internal equipment to be accessed externally without opening the cabinet. The unit features a 3A circuit breaker for branch circuit protection and a single-lever locking mechanism for secure installation. Constructed from heavy-duty die-cast aluminum and supplied with a gasket, it is designed for reliable performance in demanding environments.
Key Features:
- Integrated Power and Ethernet Access: Combines duplex 120 VAC outlet with RJ45 Ethernet pass-through.
- 3A Circuit Breaker Protection: Provides branch circuit overcurrent protection.
- 32B Housing Size: Standard heavy-duty industrial connector format.
- Die-Cast Aluminum Construction: Durable housing for industrial use.
- Female-to-Female RJ45 Port: Enables Ethernet connectivity through panel walls.
- Single Lever Locking Mechanism: Secures connector housing during operation.
- Panel Interface Design: Allows external access without opening enclosure.
- Includes Gasket: Helps maintain enclosure sealing integrity.
The ZP-PDA-32-201 delivers the reliability and precision required for secure panel-mounted power and network interface solutions in industrial control systems.
