Description

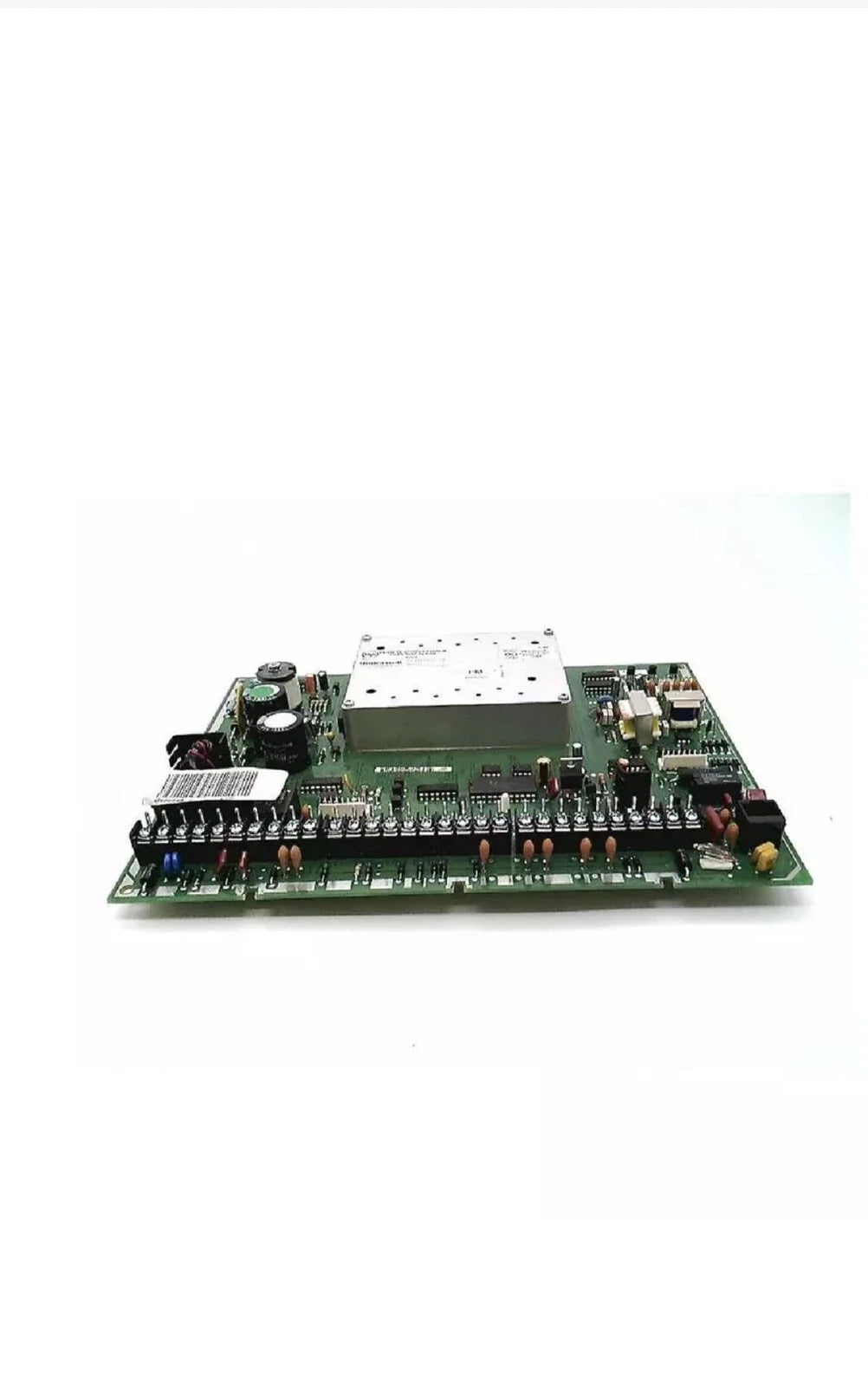

The Honeywell V128FBPPCB-9 is the main control board (PCB only) for the VISTA-128FBP commercial fire & burglary panel, enabling multi-zone intrusion and fire protection. This board supports up to eight partitions, 128 zones (via hardwired, wireless or V-Plex addressable) and integrates access control, CCTV, and communication features. It is typically used as a replacement or refurbishment component in VISTA-128FBP alarm systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell / Resideo |
| Category |
PLCs / Machine Control |
| Part Number |
V128FBPPCB-9 |
| Subcategory |
PC Board / Control Board |
| System Type |
Fire & Burglary Control Panel Core |
| Hardwired Zones |
8 style B zones (supervised) |
| Addressable / V-Plex Points |
Up to 120 addressable points |
| Wireless Zones |
Up to 128 wireless zones |
| Partitions Supported |
8 |
| Notification Circuits |
Two NAC outputs (2.3 A @ 12 V or 3.4 A @ 24 V) |
| Access Control Doors |
Up to 8 via VISTAKEY |
| Event Log Capacity |
512 events |
| User Codes |
Up to 150 user codes |
| Cardholders |
Up to 250 access card holders |
| Communication Options |
Telephone dialer, GSM, IP, AlarmNet, dynamic signaling |
| Quiescent Current |
Approx. 300–350 mA |
| Power Supply |
18 VAC @ 72 VA |
| Backup Battery |
12 V lead-acid (12 Ah min to 34.4 Ah max) |
| Operating Temperature |
0 °C to 50 °C |
| Storage Temperature |
–10 °C to 70 °C |
| Humidity |
Up to 85% RH non-condensing |
| Cabinet Size (typical) |
18 in × 14.5 in × 4.3 in |
| Listings & Approvals |
UL864, UL609, UL985, UL611/1610, UL365, NFPA72, MEA, California fire marshal |
| Weight |
1.20 lbs |
Information About V128FBPPCB-9
The V128FBPPCB-9 is the printed circuit board core of the VISTA-128FBP control platform (12 V model). It implements the logic, supervision, zone scanning, notification outputs, and communication interfaces of the control panel. Designed to be mounted in an attack-resistant enclosure, it supports both fire and burglary functionality in a combined system. The board is fully compatible with V-Plex addressable modules and wireless expansions, and works with AlarmNet communicators for remote monitoring.
Key Features:
- Eight Hardwired Zones (Standard): Comes with eight style B zones, EOL supervised for both fire and burglary use.
- Expandable to 128 Points: Supports up to 128 total zones via V-Plex addressable or wireless devices.
- Partitioned Control (8 Partitions): Enables independent control of up to 8 areas within a facility.
- Access Control Integration: Supports VISTAKEY® modules for 1 to 8 doors and cardholder management.
- On-Board Notification Circuits: Two NAC (bell) circuits provide up to 2.3 A at 12 V (or 3.4 A at 24 V) for alarms and strobes.
- Event Log Memory: Stores up to 512 events, including alarms, troubles, and user actions.
- False Alarm Reduction Logic: Implements features like cross zoning, exit error, recent close report, and exit delay reset.
- Communication Flexibility: Supports phone line (dialer), GSM, IP, AlarmNet and dynamic signaling.
- UL / NFPA Listing Compliance: Listed to UL864 (9th Edition), UL609, and multiple burglary/fire standards.
The V128FBPPCB-9 delivers the control, flexibility, and safety features required for commercial fire and burglary applications.
