Description

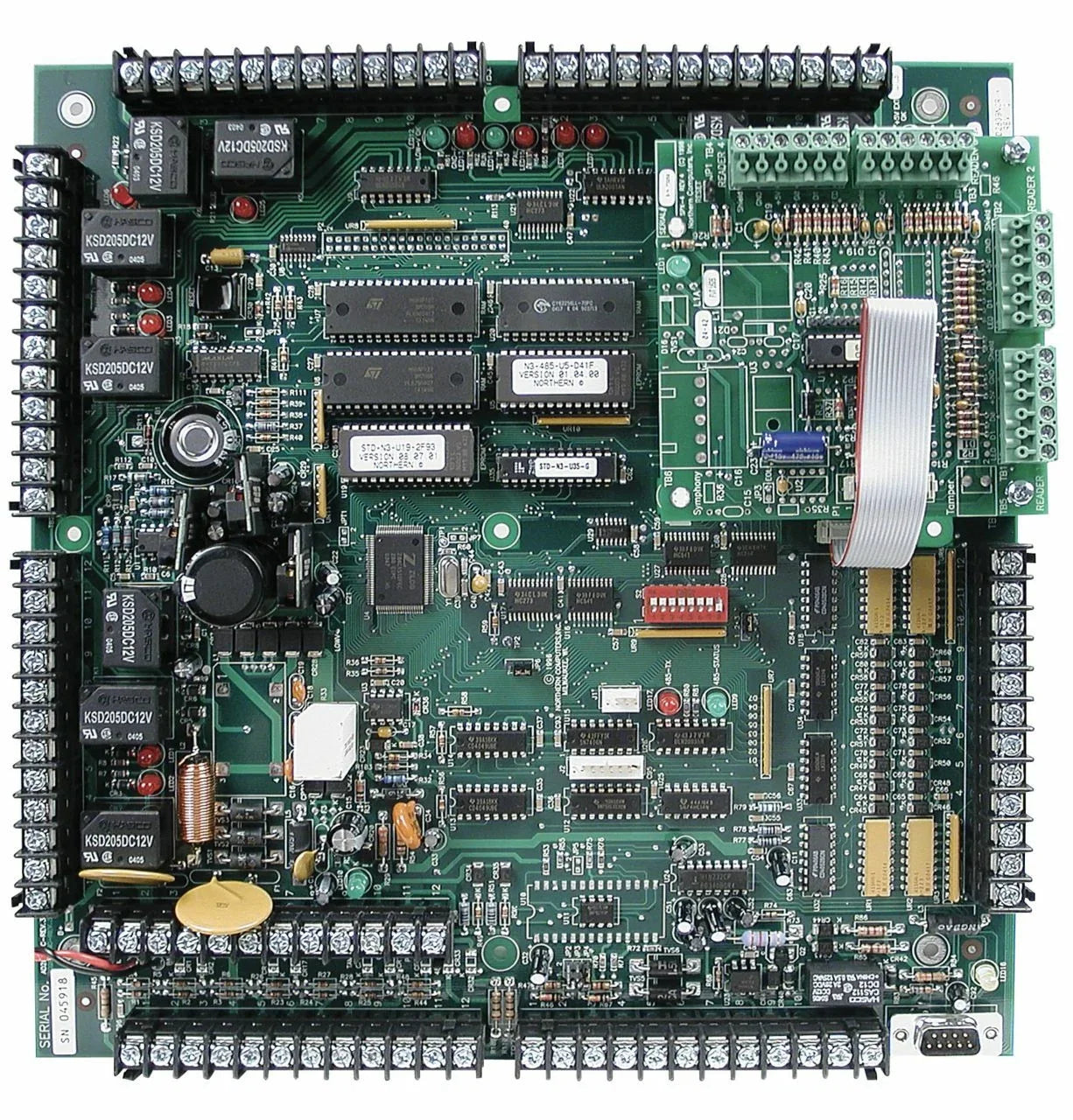

The Honeywell N-1000-IV-X-CB is a robust and scalable access control panel designed to manage up to four readers and eight relay outputs. It provides reliable off-line access control with the ability to store and process user credentials and transaction data independently from a central PC.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
N-1000-IV-X-CB
|
| Subcategory |
Multi-Reader Controllers |
| Number of Readers |
4 |
| Relay Outputs |
8 DPDT relays |
| Card Capacity |
25,000 cards |
| Transaction Buffer |
6,600 transactions |
| Communication Options |
RS232, RS485, Modem, TCP/IP |
| Operating Mode |
Offline and Online |
| Supported Protocols |
Direct Serial, TCP/IP, Modem |
| Mounting |
Panel-mounted |
| Weight |
16.00 lbs |
Information About N-1000-IV-X-CB
The N-1000-IV-X-CB is a control module from Honeywell’s established access control series, tailored for mid-sized security installations. It supports four readers and eight double-pole double-throw (DPDT) relay outputs, offering flexible control of doors, alarms, and auxiliary devices. Designed to function both offline and online, it independently makes access decisions without requiring a connected host. Communication to a host system is enabled through RS232, RS485, dial-up modem, or TCP/IP, making integration seamless across various environments.
Key Features:
- Four Reader Support: Manages up to four access readers for multi-entry point control.
- Eight DPDT Relay Outputs: Provides versatile relay options to operate doors, alarms, or auxiliary systems.
- Standalone Operation: Capable of making access decisions offline without a host PC.
- Flexible Connectivity: Supports RS232, RS485, dial-up modem, and TCP/IP connections to host computers.
- Extended Card Capacity: Stores up to 25,000 cardholders, ideal for mid-scale installations.
- Large Transaction Buffer: Holds 6,600 event transactions for efficient tracking and reporting.
- Remote Configuration: Allows for configuration, alarm monitoring, and control via host systems.
- Reliable Performance: Built for consistent operation in high-security environments.
The N-1000-IV-X-CB offers scalable and autonomous access control with flexible integration options.
