Description

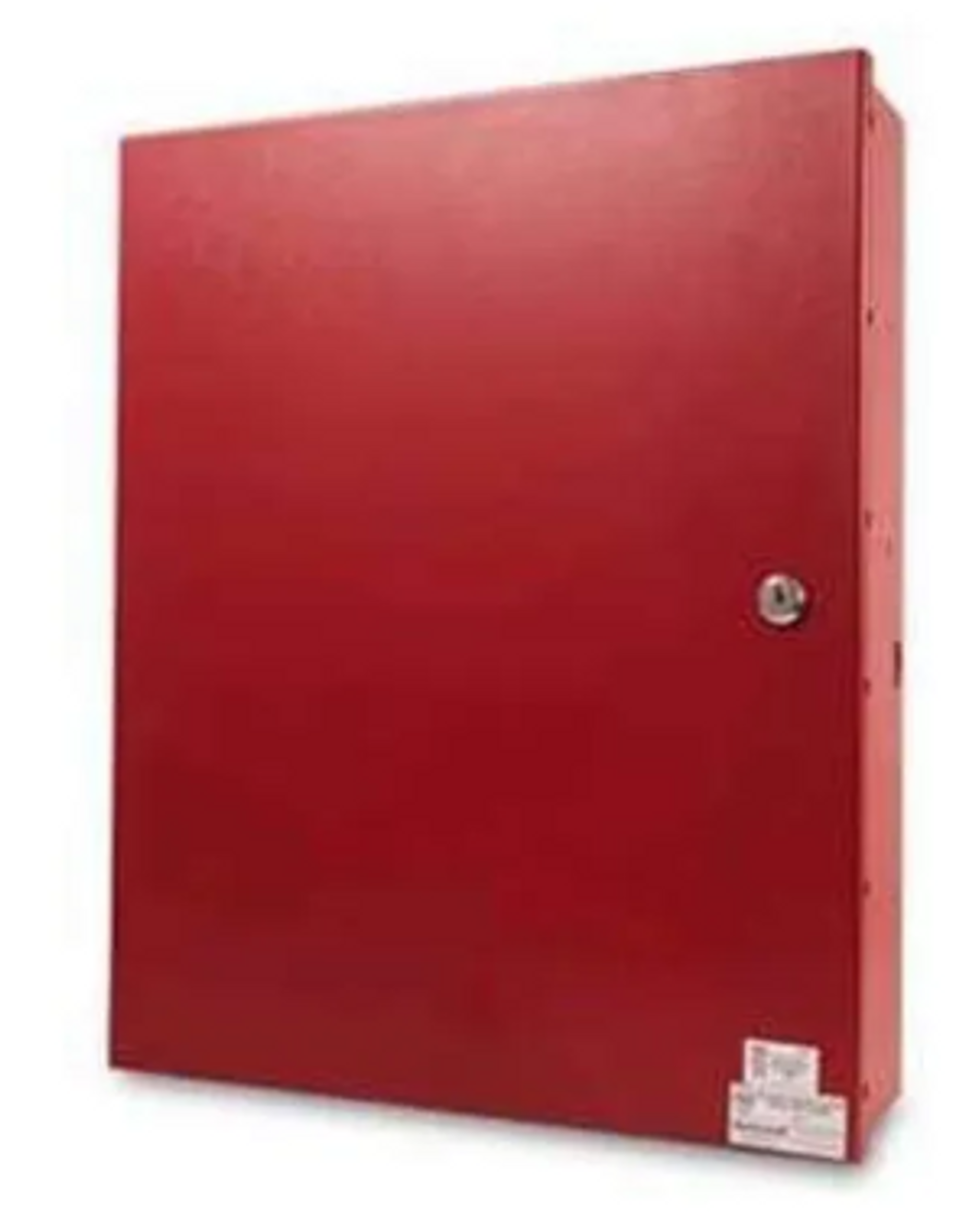

The Honeywell V32FBPT is a VISTA-series commercial fire and burglary alarm control panel with external transformer, designed for partitioned security and life-safety systems. It supports up to 32 zones using hardwired, wireless, or V-Plex® addressable technologies and can operate across two independently controlled partitions. This unit is ideal for integrated security applications in offices, schools, churches, and light commercial buildings.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Fire & Security Controls |
| Part Number |
V32FBPT |
| Subcategory |
Alarm Control Panels |
| Series |
VISTA |
| Model |
VISTA-32FBPT |
| Input Zones (Standard) |
8 Hardwired |
| Max Zones Supported |
32 (Hardwired, Wireless, V-Plex Addressable) |
| Partitions |
2 Independent + Common/Master |
| Wireless Zone Support |
Up to 32 zones |
| Access Control |
Supports VISTAKEY® (1–8 doors, up to 250 cardholders) |
| User Codes |
Up to 75 |
| Event Log Capacity |
512 |
| Communication |
GSM / AlarmNet compatible |
| Output Circuits |
2 onboard NACs, total 2.3A @ 12V |
| Control Type |
Addressable |
| Installation |
Commercial wall mount |
| Compatible Devices |
Keypads, relays, wireless sensors, RF receivers |
| UPC |
886618160790 |
| Weight |
2.60 lbs |
Information About V32FBPT
The V32FBPT is part of Honeywell’s VISTA-32FBPT line and delivers a versatile control platform supporting both fire and intrusion detection. It includes 8 onboard hardwired zones, expandable to 32 with V-Plex or wireless devices, and allows for full partitioning with a common lobby or master partition. Compatible with commercial fire sensors, burglary devices, and access control modules like VISTAKEY®, this panel supports up to 75 user codes and 512 event logs. With onboard NAC outputs and AlarmNet® communication support, the V32FBPT is ideal for robust installations needing integration, flexibility, and remote services.
Key Features:
- Dual Function System: Combines fire and burglary control in a single panel.
- Expandable Zone Support: Handles up to 32 zones using hardwired, wireless, or addressable inputs.
- Partitioned Security: Supports two independently controlled areas with common/master partitions.
- Access Control Ready: Integrates with VISTAKEY® for up to 250 cardholders and 8 access-controlled doors.
- Powerful Event Storage: Logs up to 512 system events.
- Integrated NAC Outputs: Two onboard circuits delivering a combined 2.3A @ 12V.
- Remote Connectivity: Compatible with AlarmNet® services for monitoring and remote control.
- Commercial Application Focus: Ideal for offices, churches, banks, schools, and industrial sites.
The V32FBPT delivers the security, flexibility, and integration needed for modern commercial fire and burglary alarm installations.
