Description

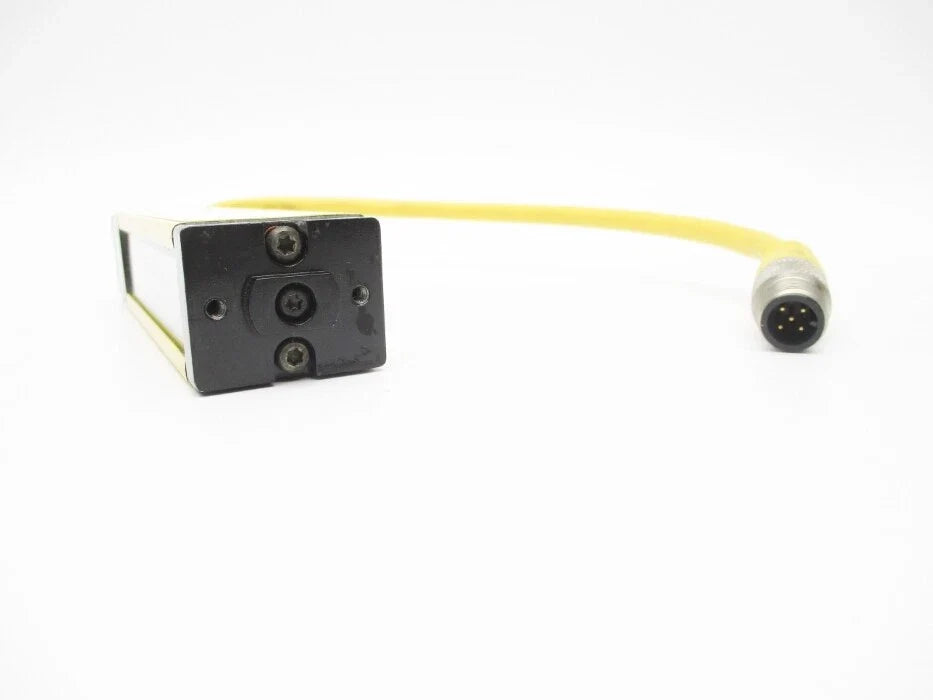

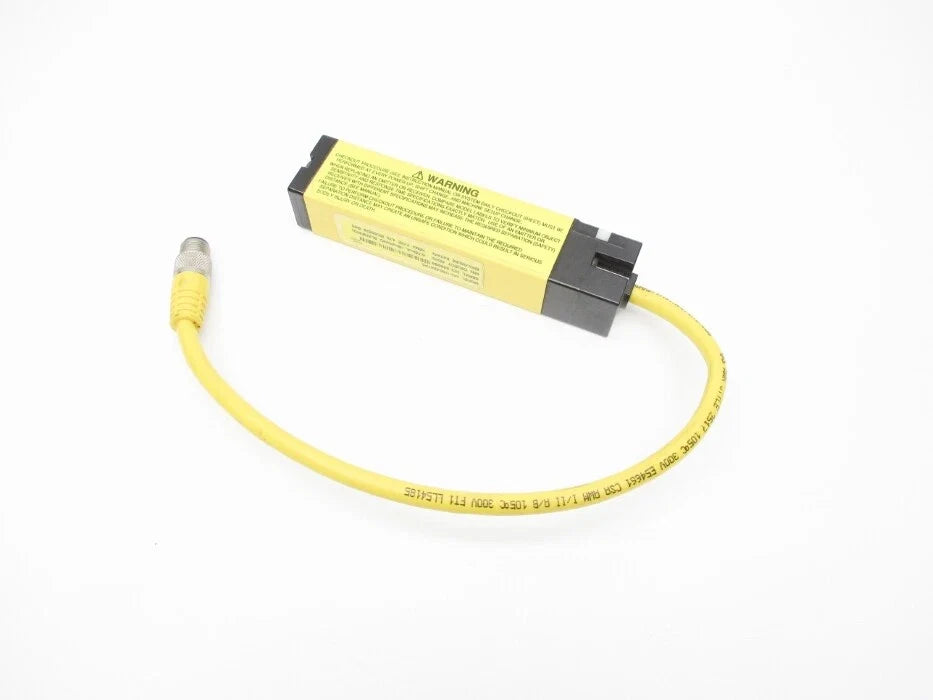

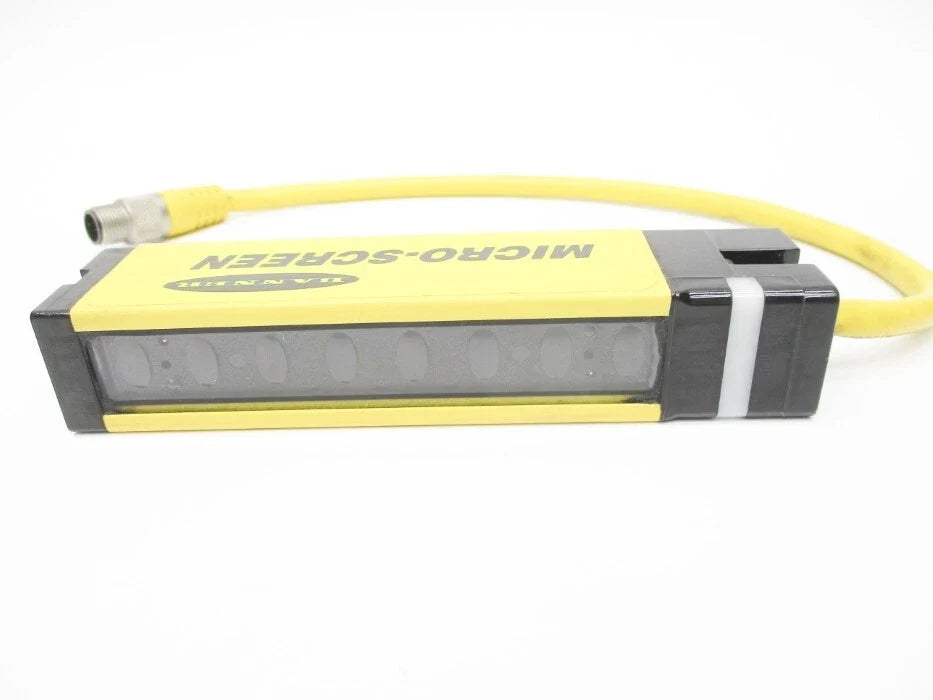

The Banner Engineering USE424YP2 is a safety light curtain emitter designed for point-of-operation guarding in industrial environments. It provides a 4-inch defined sensing area using an infrared light source and is intended for use with a compatible Micro-Screen receiver. The emitter operates as part of a two-piece safety system for detecting intrusions into hazardous machine zones.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Safety Systems |
| Part Number |
USE424YP2 |
| Subcategory |
Light Curtain |
| Series |
Micro-Screen |
| System Type |
Safety Light Curtain Emitter |
| Defined Area Height |
4 in (approx. 100 mm) |
| Minimum Object Detection |
19 mm (0.75 in) |
| Light Source |
Infrared LED |
| Wavelength |
880 nm |
| Operating Range |
0.15 to 9 m |
| Supply Voltage |
24 VDC |
| Response Time |
< 38 ms |
| Safety Class |
Type 4 |
| Connector Type |
M12, 5-pin |
| Housing Material |
Aluminum |
| Environmental Rating |
IP65 |
| Compatible Receiver |
USR424YP2 |
| Weight |
0.61 lbs |
Information About USE424YP2
The USE424YP2 is part of the Banner Engineering Micro-Screen series, which consists of compact safety light curtains for localized machine guarding applications. This unit functions exclusively as the emitter and must be paired with a compatible receiver such as the USR424YP2 to form a complete safety system. It emits a synchronized infrared light field that is monitored by the receiver to detect object intrusion. When correctly integrated with an approved safety controller, the system supports Category 4 safety performance.
Key Features:
-
Safety light curtain emitter: Designed to generate a protective infrared light field.
-
4-inch defined area: Suitable for compact point-of-operation guarding.
-
Infrared light source: Operates at approximately 880 nm wavelength.
-
Micro-Screen system compatibility: Intended for use with matching Micro-Screen receivers.
-
Category 4 capable system design: Supports high-level machine safety when properly configured.
-
M12 connector interface: Provides standardized electrical connection.
The USE424YP2 delivers the reliability and precision required for compact industrial safety light curtain emitter applications.
