Description

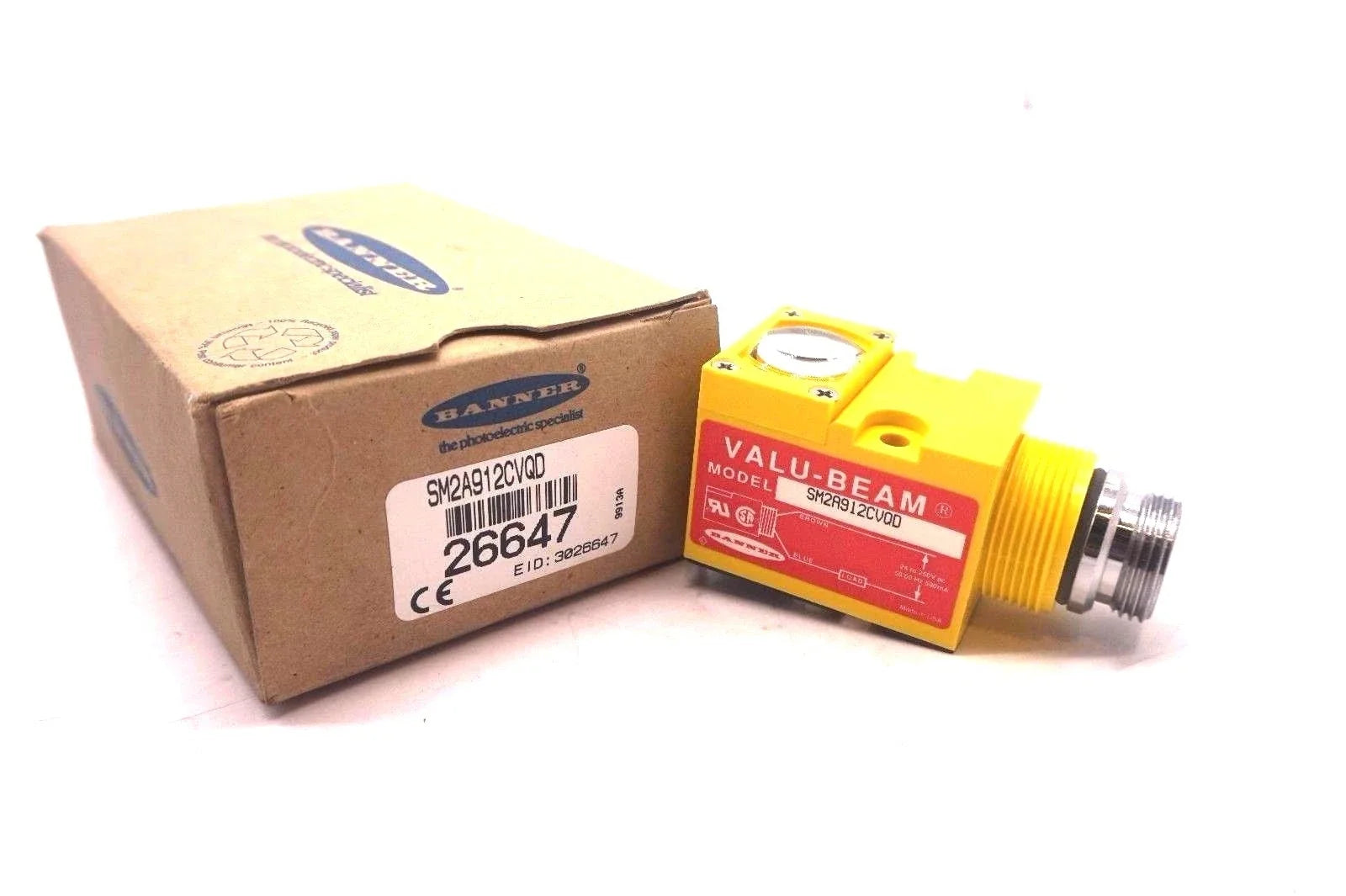

The Banner Engineering SM2A912CVQD photoelectric sensor is a VALU-BEAM convergent sensor designed for reliable short-range object detection in industrial automation systems. Using a visible red 650 nm light source, it delivers consistent sensing performance at a fixed focal distance for precise detection tasks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
SM2A912CVQD |
| Subcategory |
Photoelectric Sensors |
| Series |
SM912 |
| Sensor Type |
Photoelectric Sensor |
| Sensing Method |
Convergent |
| Sensing Distance |
38 mm (1.496 in) |
| Light Source |
Visible Red LED, 650 nm |
| Supply Voltage |
24–250 VAC |
| Response Time |
4 ms |
| Output Configuration |
SPST, Solid-State SCR (2-Wire) |
| Connection Method |
Quick-Disconnect Connector |
| Adjustment Type |
Potentiometer |
| Ingress Protection |
NEMA 1, 2, 3, 3S, 4, 4X, 6, 6P, 12, 13 / IP66 |
| Operating Environment |
Industrial |
| Weight |
0.25 lbs |
Information About SM2A912CVQD
The SM2A912CVQD is part of Banner Engineering’s SM912 VALU-BEAM sensor series, developed for dependable photoelectric sensing in industrial environments. This sensor uses a convergent sensing method with a focal point of 38 mm, making it suitable for close-range detection applications. It operates on a wide 24–250 VAC supply range and features a two-wire solid-state SCR output for simple integration into AC control circuits. Designed with a quick-disconnect connector and broad NEMA/IP protection ratings, it supports reliable operation in harsh industrial conditions.
Key Features:
- VALU-BEAM Photoelectric Sensor: Designed for dependable object detection in industrial applications.
- Convergent Sensing Method: Optimized for short-range detection at a 38 mm focal point.
- Visible Red Light Source: Uses a 650 nm red beam for clear alignment and detection.
- Wide AC Supply Range: Operates on 24–250 VAC for flexible installation.
- Solid-State SCR Output: Two-wire SPST output suitable for AC control circuits.
- Adjustable Sensitivity Control: Includes potentiometer adjustment for precise setup.
- Extensive Environmental Ratings: Supports NEMA and IP66 protection for harsh environments.
The SM2A912CVQD delivers the reliability and precision required for close-range photoelectric sensing and industrial automation control.
