Description

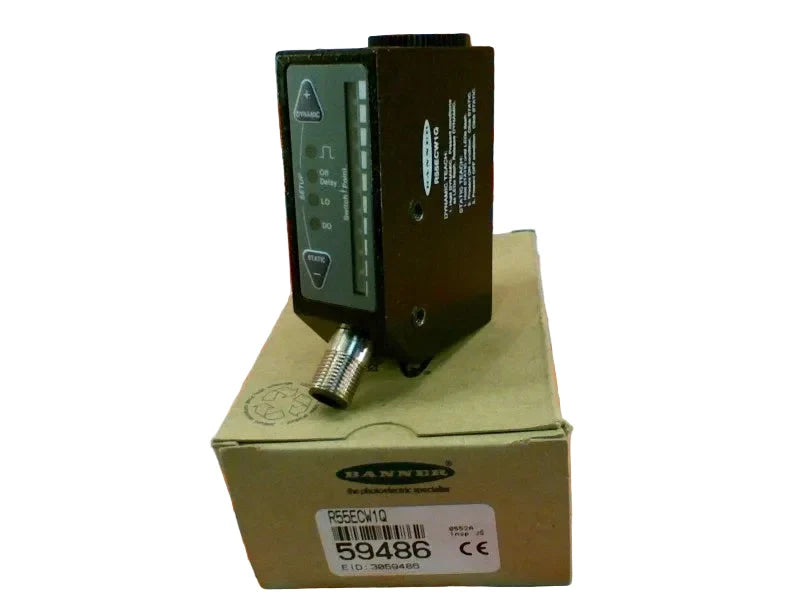

The Banner Engineering R55ECW1Q color mark sensor is a convergent optical sensor designed for precise color and contrast detection in industrial automation systems. Using a white LED light source and advanced signal processing, this sensor provides reliable mark recognition for packaging, printing, and material handling applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
R55ECW1Q |
| Subcategory |
Color Mark Sensors |
| Series |
R55 Color Mark Series |
| Sensor Type |
Color / Contrast Sensor |
| Sensing Mode |
Color x1 |
| Measurement Range |
10 mm |
| Optical Design |
Convergent |
| Light Source |
White LED |
| Supply Voltage |
10–30 VDC |
| Discrete Output Type |
Bipolar NPN/PNP |
| Analog Output |
0–10 mA |
| Operation Modes |
Dark-ON, Light-ON |
| Indicator |
Bargraph |
| Connection Type |
M12 Integral Connector |
| Number of Pins |
6 |
| Housing Material |
Zinc Alloy Die-Cast |
| Lens Material |
Acrylic |
| IP Rating |
IP67 |
| NEMA Rating |
6 |
| Operating Temperature |
-10°C to 55°C |
| Weight |
0.99 lbs |
Information About R55ECW1Q
The R55ECW1Q is part of Banner Engineering’s R55 Expert Color Mark Series, developed for high-accuracy color and contrast sensing at close range. This sensor features a convergent optical design with a fixed 10 mm parallel focal point, ensuring consistent detection performance on fast-moving materials. It operates on a 10–30 VDC supply and supports both bipolar NPN/PNP discrete outputs and a 0–10 mA analog output for flexible system integration. Housed in a rugged zinc alloy die-cast body with IP67 protection, it is well suited for harsh industrial environments.
Key Features:
- Convergent Color Mark Sensing: Optimized for accurate detection at a fixed 10 mm sensing distance.
- White LED Light Source: Enhances contrast differentiation across a wide range of colors and materials.
- Bipolar NPN/PNP Outputs: Supports flexible discrete output wiring configurations.
- Analog Output Capability: Provides a 0–10 mA signal for advanced monitoring and diagnostics.
- Integrated Bargraph Indicator: Allows visual confirmation of signal strength and alignment.
- Rugged Industrial Housing: Zinc alloy die-cast construction with IP67 protection for harsh environments.
- M12 Integral Connector: Ensures secure, vibration-resistant electrical connections.
The R55ECW1Q delivers the reliability and precision required for high-speed color mark detection and industrial inspection applications.
