Description

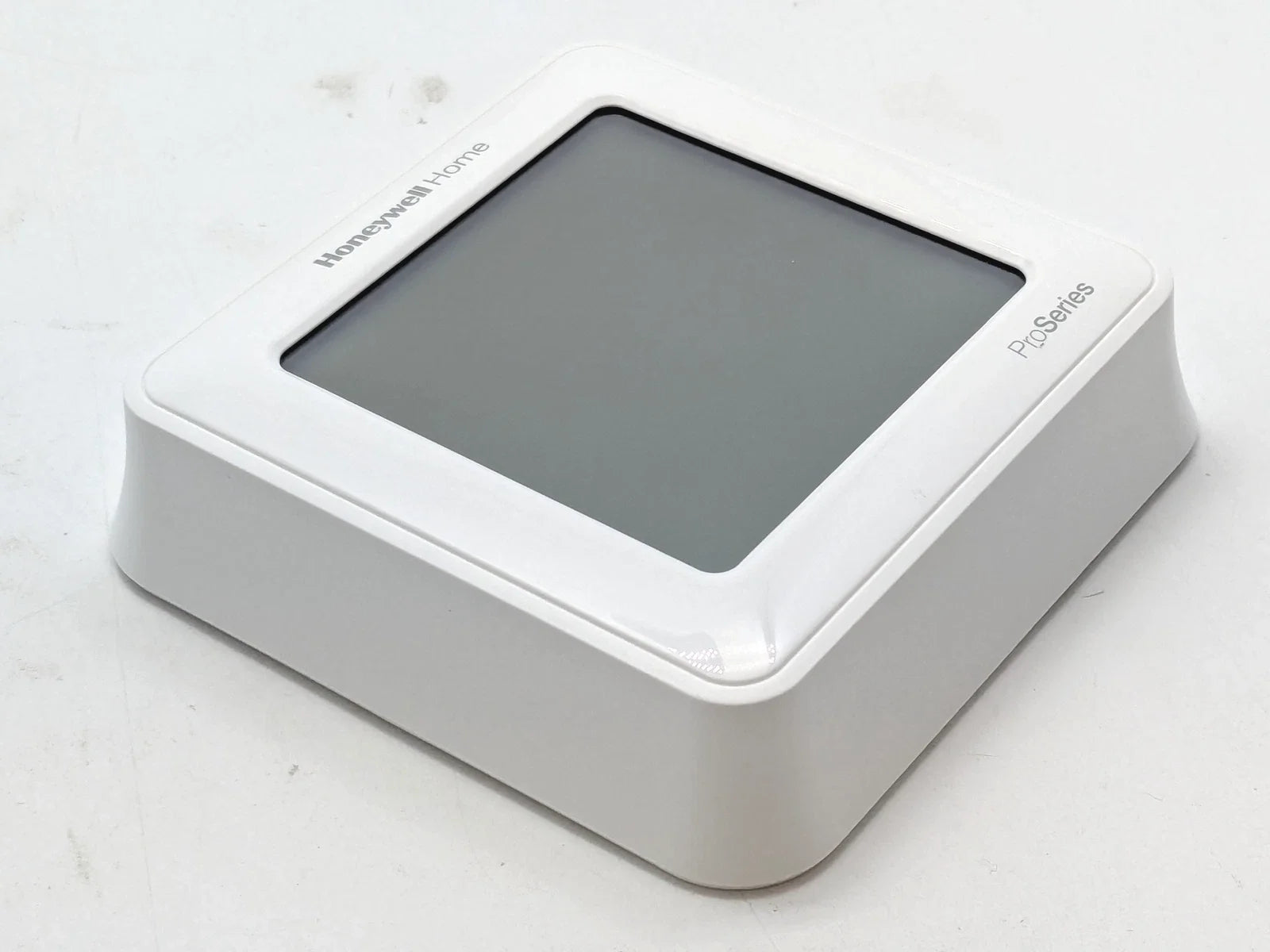

The Honeywell TH6320ZW2007/U is a T6 Pro Z-Wave® programmable thermostat designed for 24 Vac heating and cooling systems. It supports up to 3 Heat/2 Cool heat pump systems or 2 Heat/2 Cool conventional systems with dual fuel capability and auxiliary heat lockout. The TH6320ZW2007/U integrates Z-Wave Plus communication for remote control and system management through compatible controllers or gateways.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
HVAC Controls |
| Part Number |
TH6320ZW2007/U |
| Subcategory |
Programmable Thermostats |
| Communication Protocol |
Z-Wave Plus |
| Voltage Rating |
20–30 Vac |
| Frequency |
50/60 Hz |
| System Compatibility |
Up to 3H/2C Heat Pump; Up to 2H/2C Conventional |
| Display Type |
Touchscreen, LED Backlit |
| Display Size |
6.89 sq. in. |
| Operating Temperature Range |
37°F to 102°F (2.7°C to 39°C) |
| Humidity Range |
5% to 90% RH (non-condensing) |
| Programmability Options |
7-day, 5-1-1, 5-2, 1-week, occupancy via Z-Wave, non-programmable |
| Power Method |
Battery or Hardwired |
| Terminal Designations |
RC, R, C, W, W2-AUX, Y, Y2, O/B, G, K, E, L/A, S, S |

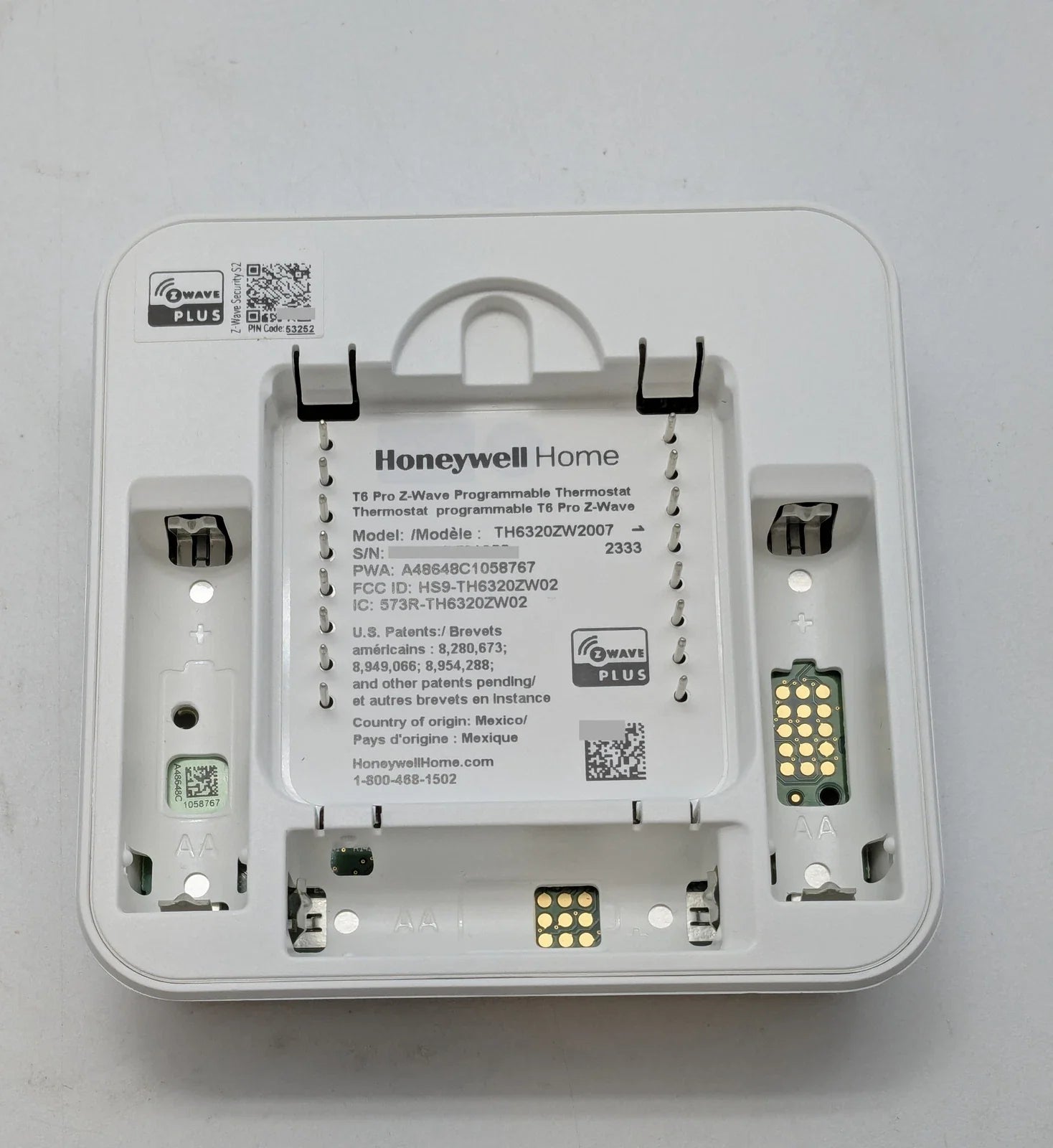

| Mounting System |
UWP Mounting System |
| Dimensions |
4-1/16" W × 4-1/16" H × 1-3/32" D |
| Color |
White |
| Accuracy |
±1°F (±0.5°C) |
| Weight |
1 lb |
Information About TH6320ZW2007/U
The TH6320ZW2007/U is part of the Honeywell T6 Pro series engineered for residential and light commercial HVAC control applications. It is Z-Wave Plus certified, offering enhanced wireless range, bandwidth, and battery efficiency while maintaining backward compatibility with existing Z-Wave networks. The thermostat supports programmable scheduling formats including 7-day, 5-1-1, 5-2, 1-week, non-programmable, or occupancy-based control through Z-Wave panel or app integration. Designed for flexible installation, it operates via battery power or hardwired 20–30 Vac supply and mounts using the UWP mounting system.
Key Features:
- Z-Wave Plus Certified: Provides improved wireless range, reliability, and bandwidth over standard Z-Wave devices.
- Multi-System Compatibility: Supports up to 3H/2C heat pump systems or 2H/2C conventional systems with dual fuel support.
- Flexible Programmability: 7-day, 5-1-1, 5-2, 1-week, occupancy-based, or non-programmable operation.
- Touchscreen Interface: 6.89 sq. in. LED-backlit touchscreen for user-friendly operation.
- Battery or Hardwired Power: Operates on batteries or 20–30 Vac system power.
- Selectable Temperature Range Stops: Limits heating and cooling setpoints as required.
- Keypad Lockout: Restricts unauthorized changes to system settings.
- Aux Heat and Dual Fuel Lockout: Optimizes system efficiency when paired with outdoor sensor.
The TH6320ZW2007/U delivers the reliability and precision required for Z-Wave enabled HVAC temperature control systems.
