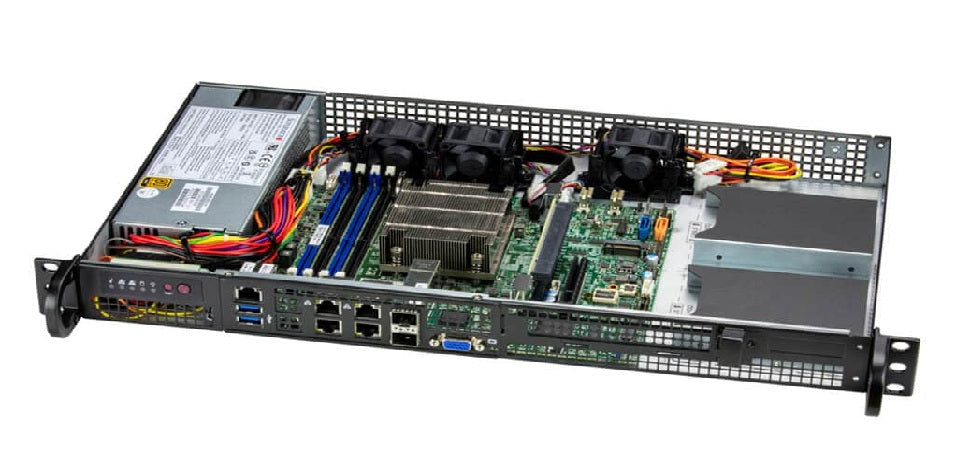

The Supermicro SYS-510D-10C-FN6P is a compact, high-performance Mini-1U IoT SuperServer optimized for the intelligent edge, including retail, firewall, and SD-WAN applications. It is powered by the Intel Xeon D-1747NTE 10-core processor and features advanced 25GbE networking
Specifications
Model Number: SYS-510D-10C-FN6P
Brand: Supermicro
Alt Part Number(s): SYS-510D-10C-FN6P
Product Type:Server
Technical Description
Brand: Supermicro
Model Number: SYS-510D-10C-FN6P
Series: IoT SuperServer
Processor Type: Intel Xeon Processor D-1700 Series
Processor Core: Up to 10 Core/20 Thread
Processor Power: Supports 80W TDP CPUs
Processor Socket: Single FCBGA-2227
Motherboard: Super X12SDV-10C-SP6F
Chassis: CSE-505-203B
Chipset Type: Intel SoC
Graphics Controller: ASPEED AST2600 BMC
Networking: 6-Port
Number of Drive Bays: 4 internal fixed 2.5" SATA drive bays
M.2 Support: 1x M-Key (2280), 1x B-Key (3042/3052/2280), 1x E-Key (2230)
Expansion Slots: 1 PCIe 4.0 x16 FHHL slot
Memory Supported: Up to 1TB
Memory Size: Up to 256GB RDIMM
Memory Technology: ECC DDR4
Memory Speed: 2933MT/s
Memory Slots: 4 DIMM slots
Power Supply: 1x 200W Gold
System Cooling: Up to 4x 4-PIN PWM 40x28mm Fan(s)
Form Factor: Mini-1U
Height: 1.7"
Width: 17.2"
Depth: 9.8"
