Overview

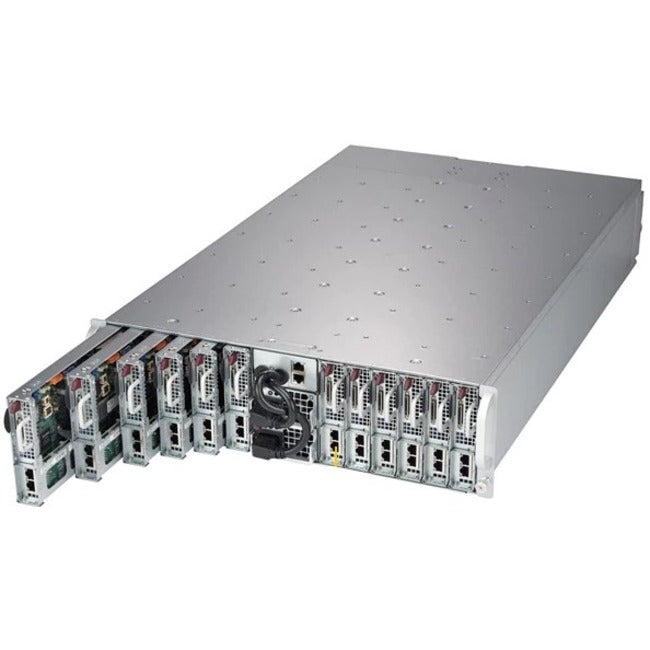

Supermicro SuperServer SYS-5039MC-H12TRF from the 3U series delivers a 12 node architecture each supporting a single Socket H4 LGA-1151 Xeon Core i3 Celeron or Pentium processor with up to 128GB DDR4-2666 memory. It features Intel C246 chipset RAID support Gigabit Ethernet PCIe x4 expansion and dual 2000W power supplies for high density and reliable rackmount deployment.
Specifications
Model Number:SYS-5039MC-H12TRF
Brand: Supermicro
Alt Part Number(s):SYS-5039MC-H12TRF
Product Type: Server
Technical Description
Brand: Supermicro
Model:SYS-5039MC-H12TRF
Number of Nodes: 12
Number of Processors Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Xeon; Core i3; Celeron; Pentium
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C246
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Total Number of Memory Slots: 4
Controller Type: Serial ATA/600
RAID Supported: Yes
Ethernet Technology: Gigabit Ethernet
Total Number of Expansion Slots: 1
Number of PCI Express x4 Slots: 1
Number of SATA Interfaces: 2
Input Voltage: 230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 2000 W
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 3U
Height: 5.2"
Width: 17.5"
Depth: 29.5"
Weight (Approximate): 131.99 lb
*
