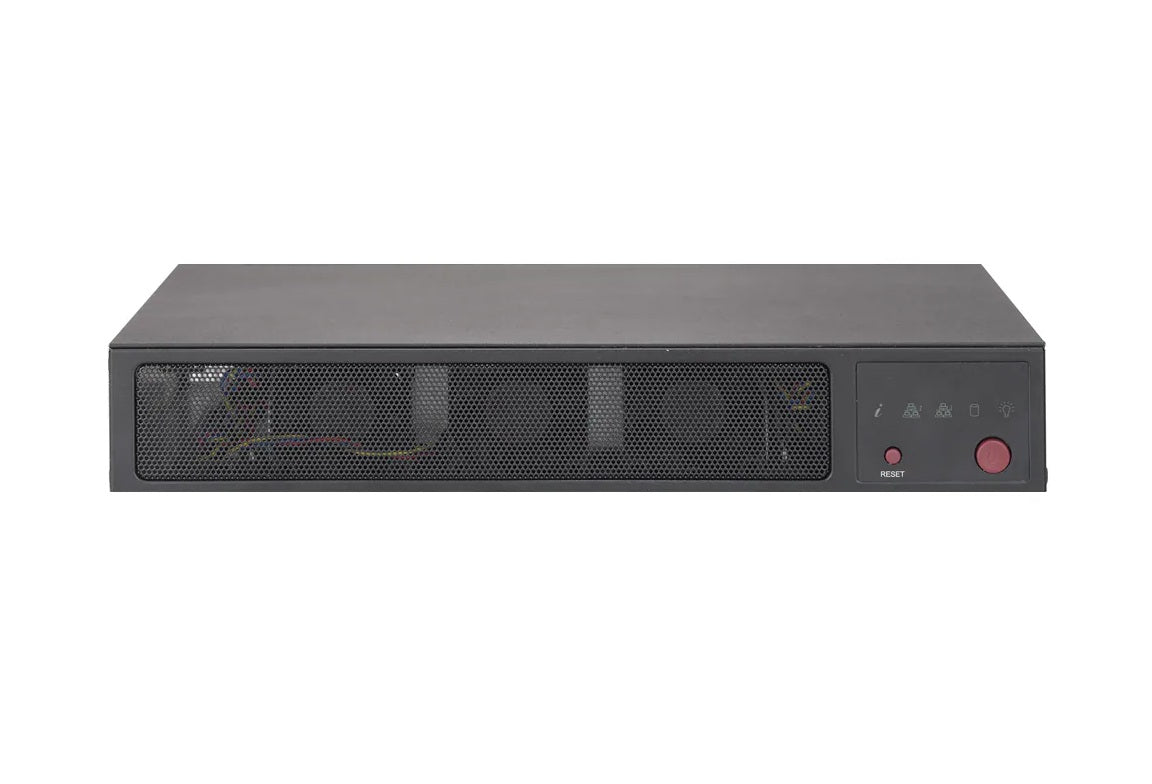

The Supermicro SYS-E300-12D-4CN6P is an application-optimized, compact IoT SuperServer designed for edge computing and network security. It is part of the E300 Family of fan-based embedded systems, providing server-grade performance in a mini-1U form factor
Specifications
Model Number: SYS-E300-12D-4CN6P
Brand: Supermicro
Alt Part Number(s): SYS-E300-12D-4CN6P
Product Type: Server
Technical Description
Brand: Supermicro
Model Number: SSG-640P-E1CR36L
Processor Type: Intel Xeon Processor D-1718T
Processor Core: Up to 4 Core/8 Thread
Processor Speed: 2.6 - 3.5GHz
Processor Power: Up to 46W TDP CPUs
Processor Socket: FCBGA‑2227 (soldered onboard)
Processor Cache: 10MB
Motherboard: Super X12SDV-4C-SP6F
Chassis Model: CSE‑E300
Chipset Type: Intel SoC
Graphics Controller: ASPEED AST2600 BMC
Networking Connectivity: 2 SFP28 25GbE, 2 RJ45 1GbE with Intel I210-IT, 2 RJ45 1GbE with Intel I350-AM2, 1 RJ45 1GbE Dedicated BMC LAN port
RAID Levels: 0, 1, 5, 10
Number of Drive Bays: 1 internal fixed 2.5" SATA drive bay, 1 M.2 PCIe 3.0 x2 SATA slot (B-key), 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key)
Expansion Slots: 1 PCIe 4.0 x16 LP slot, 1 M.2 PCIe 3.0 x1 slot, 1 M.2 PCIe 3.0 x1 slot (E-key 2230)
Memory Supported: Up to 1TB
Memory Size: 256GB RDIMM, 128GB UDIMM Capacity
Memory Technology: ECC/non-ECC DDR4
Memory Speed: 2933/2666/2400MHz
Memory Slots: 4 DIMM Slots
Power Supply: 180W 12V Lockable DC Power Supply
System Cooling: Up to 3x 4-PIN PWM 40x40x28mm Fan(s)
Form Factor:
Height: 1.69"
Width: 10.43"
Depth: 8.89"
