Description

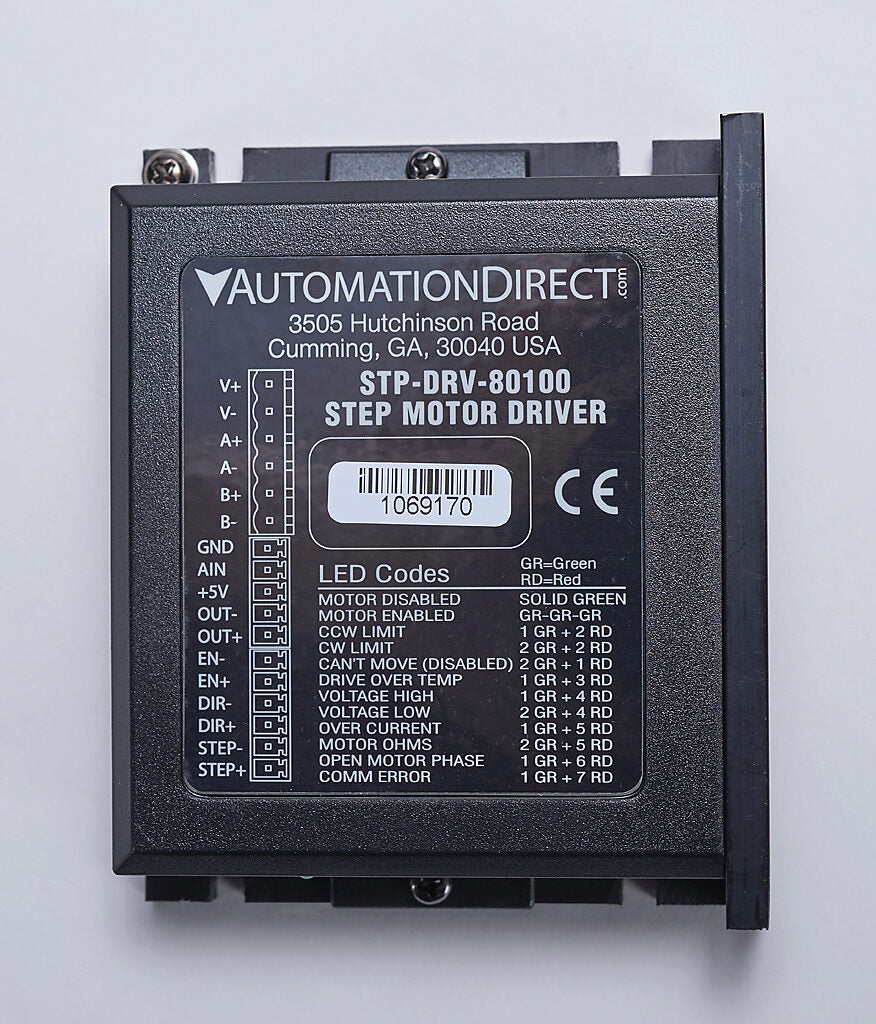

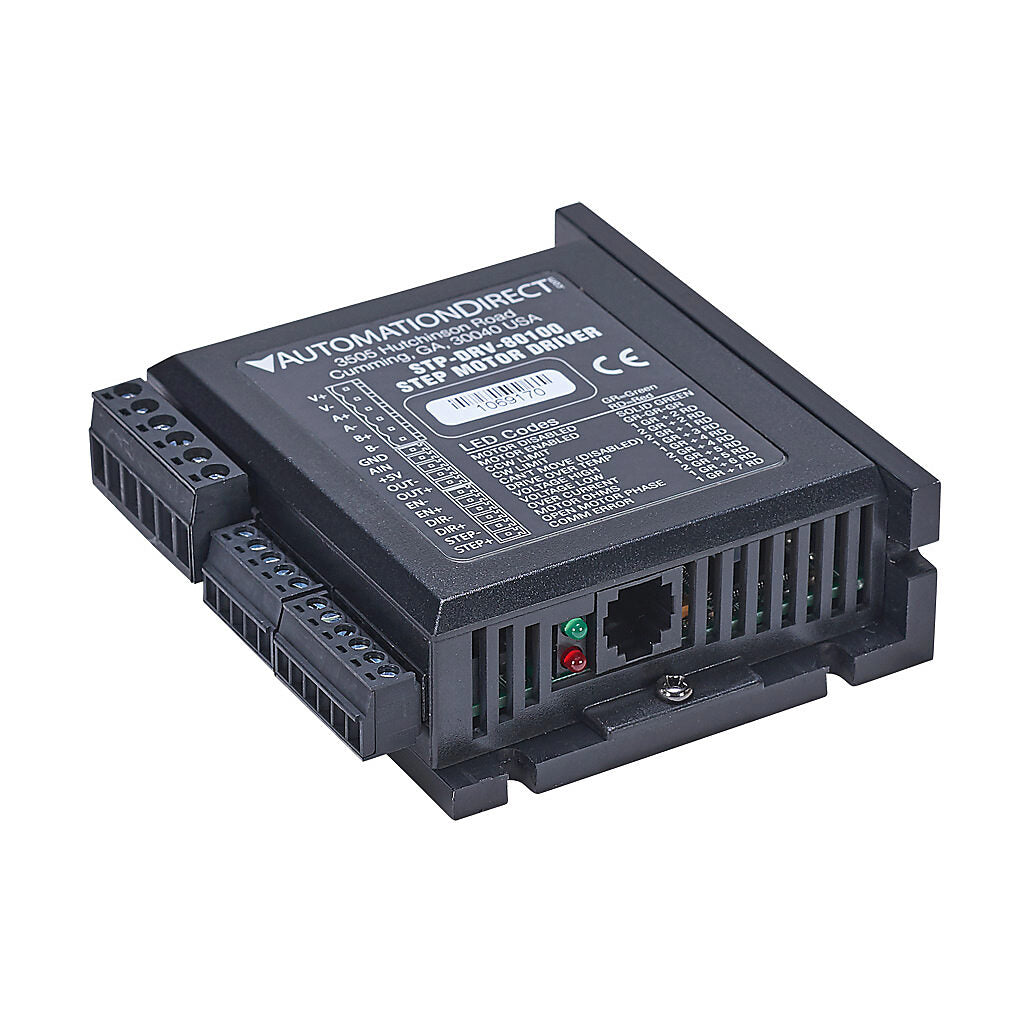

The Automation Direct STP-DRV-80100 is a SureStep open-loop stepper drive engineered for precise motion control in industrial automation systems. It delivers up to 10A per phase with advanced microstepping capability, supporting smooth positioning and velocity control across a wide input voltage range of 24–80 VDC. Designed for panel-mounted applications, it is suited for demanding motion tasks requiring stable torque and accurate step resolution.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Motion Control |
| Part Number |
STP-DRV-80100 |
| Subcategory |
Stepper Drives |
| Series |
SureStep |
| Stepper Drive Type |
Open loop |
| Controller Type |
Advanced microstepping |
| Nominal Input Voltage |
24–80 VDC |
| Voltage Type |
DC |
| Amperage Rating |
10A per phase |
| Number of Output Phases |
2 |
| Winding Type Control |
Bipolar |
| Output Type |
MOSFET dual H-bridge, 4-quadrant |
| Current Control |
4-state PWM at 20 kHz |
| Steps per Revolution |
200 to 51,200 |
| Communication Port |
(1) RS-232 (RJ11) |
| Port Protocols |
SCL, ASCII |
| Port Speed |
Up to 115.2k baud |
| Discrete Input Points |
1 |
| Discrete Input Type |
Sinking/sourcing/line driver (differential) |
| Discrete Output Points |
1 |
| Discrete Output Type |
Sinking/sourcing |
| Analog Input Channels |
1 |
| Analog Input Range |
0–5 VDC |
| Analog Output Channels |
1 |
| Control Mode |
Velocity and position |
| Mounting |
Panel mount |
| Enclosure Type |
Enclosed |
| IP Rating |
IP20 |
| Operating Temperature |
0 to 55°C |
| Configuration Method |
Software |
| Software Required |
SM-PRO configuration software |
| Included |

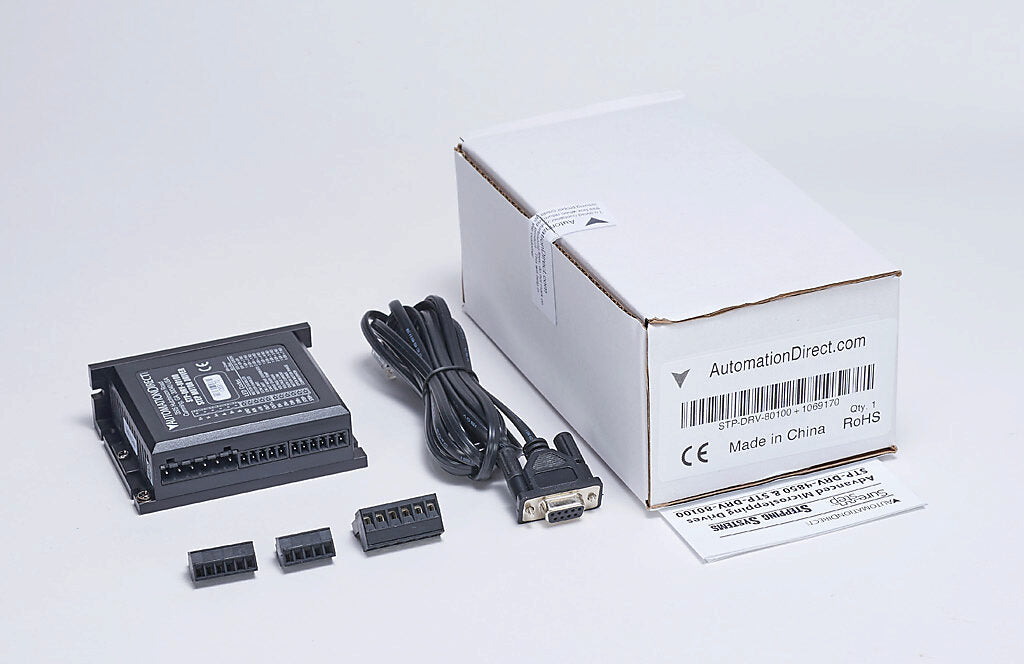

STP-232RJ11-CBL 10 ft RS-232 programming cable |
| Weight |
Approx. 3.5 lb |
Information About STP-DRV-80100
The STP-DRV-80100 is part of the SureStep series of enclosed DC stepper drives engineered for bipolar motor control. It utilizes a dual MOSFET H-bridge, 4-quadrant output stage with 4-state PWM current regulation at 20 kHz to optimize torque and efficiency. The drive supports multiple command interfaces including step and direction, CW/CCW, A/B quadrature, internal indexing through the communication port, and analog velocity control. Configuration and tuning are performed using SM-PRO software via the integrated RS-232 RJ11 port, allowing parameter adjustment and diagnostics for industrial environments.
Key Features:
- High Current Output: Provides up to 10A per phase for demanding stepper motor applications.
- Wide DC Input Range: Operates from 24 to 80 VDC for flexible system integration.
- Advanced Microstepping: Adjustable from 200 to 51,200 steps per revolution for precise positioning.
- Multiple Command Modes: Supports step and direction, CW/CCW, A/B quadrature, analog velocity, and internal indexing.
- RS-232 Communication Port: RJ11 interface supporting SCL and ASCII protocols up to 115.2k baud.
- Integrated Protection: Includes overvoltage, undervoltage, short circuit, and over-temperature safeguards.
- Performance Enhancements: Features anti-resonance damping, torque ripple smoothing, and command signal filtering.
- Idle Current Reduction: Automatically reduces motor current at standstill to minimize heat generation.
The STP-DRV-80100 delivers the reliability and precision required for industrial motion control, positioning systems, and automated machinery.
