Description

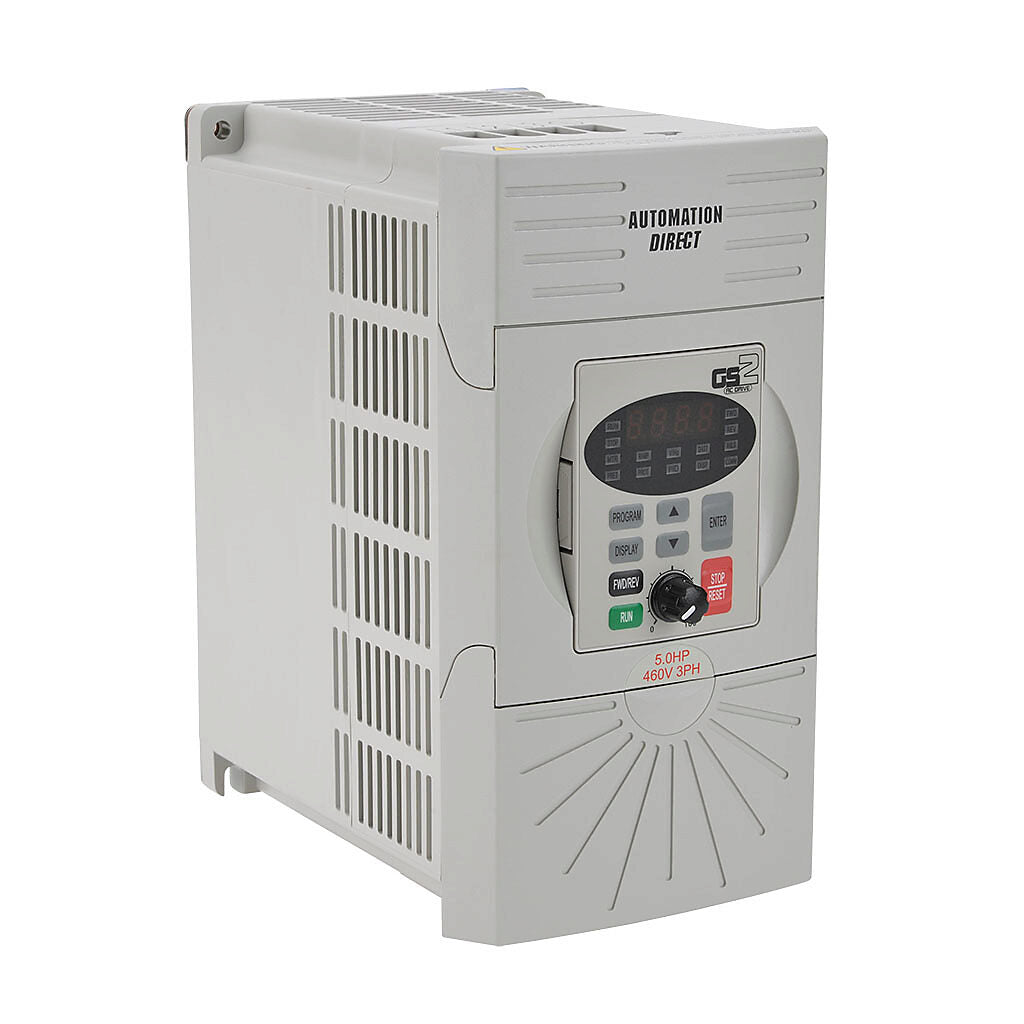

The Automation Direct GS2-45P0 is a GS2 Series AC micro drive rated for 5 HP motor control at 460 VAC. It operates with three-phase input power and utilizes V/Hz control mode for adjustable speed applications. This enclosed drive is designed for reliable motor speed regulation in industrial automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Drives |
| Part Number |
GS2-45P0 |
| Subcategory |
Drive |
| Series |
GS2 |
| Motor Rating |
5 HP |
| Input Voltage |
460 VAC |
| Input Phase |
Three-Phase |
| Output Type |
Three-Phase Output |
| Control Method |
V/Hz (V/F) |
| Communication |
RS-232 / RS-485 (Modbus) |
| Dynamic Braking |
Integrated |
| SCCR Rating |
5 kA |
| Frame Type |
B Frame |
| Enclosure |
Enclosed |
| Replacement Model |
GS23-45P0 |
| Weight |
11.00 lbs |
Information About GS2-45P0
The GS2-45P0 is part of the Automation Direct GS2 family of compact variable frequency drives developed for general-purpose industrial motor control. It provides three-phase output corresponding to a 460 VAC three-phase input supply. The drive incorporates RS-232 and RS-485 communication interfaces with Modbus protocol support for integration into PLC-based systems. Designed in a B-frame enclosure, it includes integrated dynamic braking functionality to improve controlled deceleration performance.
Key Features:
-
5 HP Motor Rating: Designed for three-phase induction motors up to 5 horsepower.
-
460 VAC Operation: Requires three-phase 460 VAC input power.
-
V/Hz Control Mode: Provides standard volts-per-hertz speed control.
-
Integrated Dynamic Braking: Enhances motor stopping control.
-
RS-232 / RS-485 Communication: Supports Modbus protocol connectivity.
-
5 kA SCCR Rating: Meets industrial short-circuit current requirements.
-
Enclosed B-Frame Design: Suitable for panel-mounted installations.
The GS2-45P0 delivers the reliability and precision required for variable speed motor control in industrial automation environments.
