Description

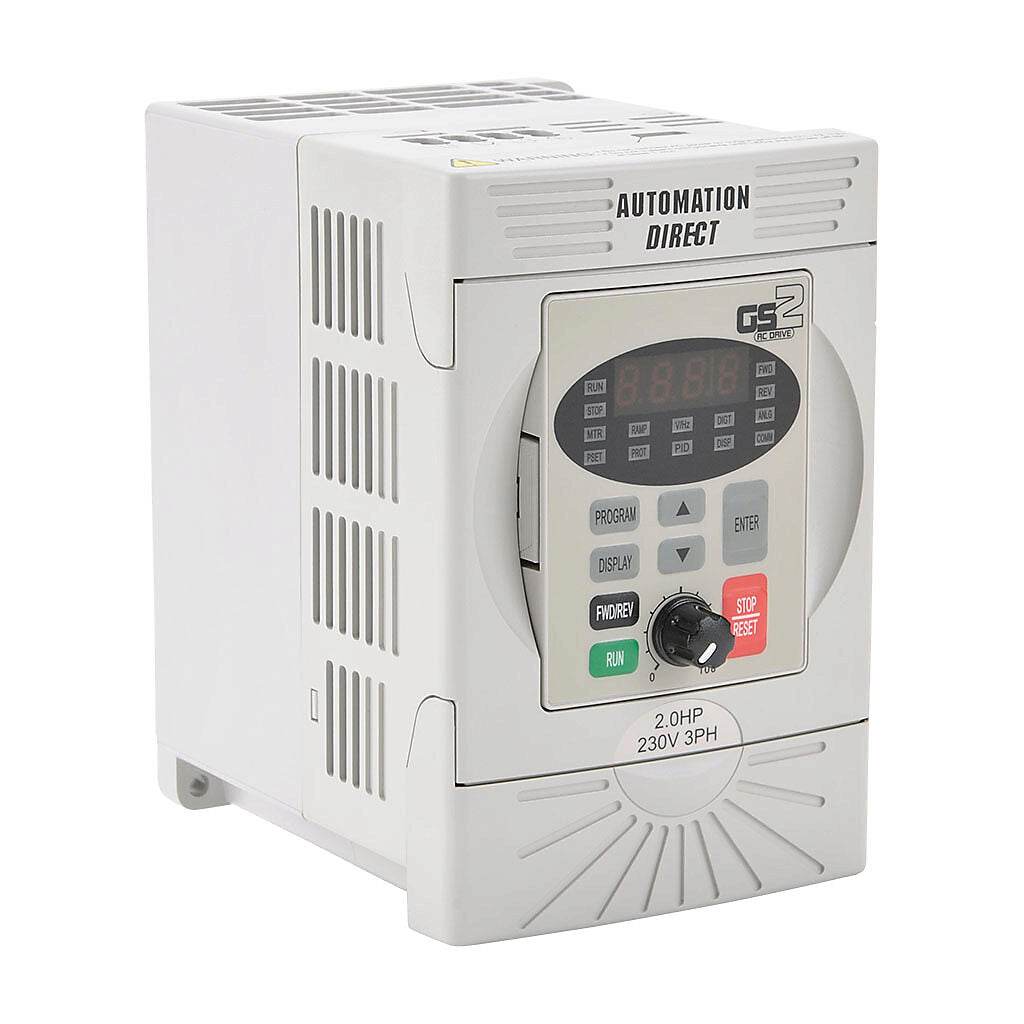

The Automation Direct GS2-22P0 is a GS2 Series AC micro drive rated for 2 HP motor control at 230 VAC. It supports both single-phase and three-phase input power and operates using V/Hz control mode. This compact enclosed drive is designed for variable speed control of induction motors in industrial automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Drives |
| Part Number |
GS2-22P0 |
| Subcategory |
Drive |
| Series |
GS2 |
| Motor Rating |
2 HP |
| Input Voltage |
200–240 VAC |
| Input Phase |
Single-Phase or Three-Phase |
| Output Voltage |
Three-Phase (Corresponds to Input) |
| Control Method |
V/Hz |
| Communication |
RS-232 / RS-485 (Modbus) |
| Dynamic Braking |
Integrated |
| SCCR Rating |
5 kA |
| Enclosure Type |
Enclosed, A Frame |
| Weight |
3.90 lbs |
Information About GS2-22P0
The GS2-22P0 is part of the Automation Direct GS2 family of micro variable frequency drives developed for general-purpose motor speed control. It provides three-phase output corresponding to the 200–240 VAC input range and integrates RS-232 and RS-485 communication ports supporting Modbus protocol. The drive includes built-in dynamic braking capability to improve deceleration control. Designed in an A-frame enclosure, it is suitable for panel mounting in machinery and industrial control cabinets.
Key Features:
-
2 HP Motor Rating: Designed for controlling three-phase induction motors up to 2 horsepower.
-
230 VAC Operation: Accepts single-phase or three-phase 200–240 VAC input.
-
V/Hz Control Mode: Provides adjustable frequency control for standard motor applications.
-
Integrated Dynamic Braking: Enhances controlled motor stopping performance.
-
RS-232/RS-485 Communication: Supports Modbus connectivity for PLC integration.
-
5 kA SCCR Rating: Short-circuit current rating for industrial protection requirements.
-
Enclosed A-Frame Design: Compact format suitable for panel installation.
The GS2-22P0 delivers the reliability and precision required for adjustable speed motor control in industrial automation systems.
