Description

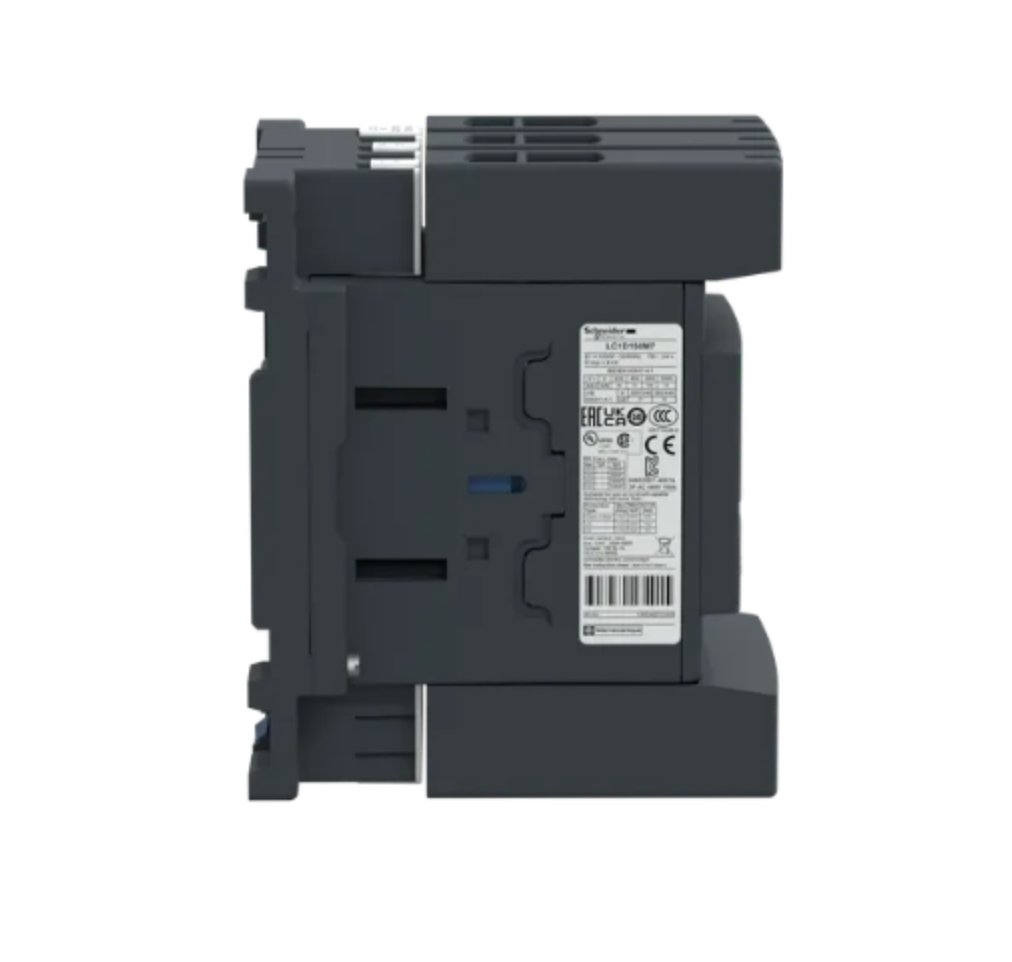

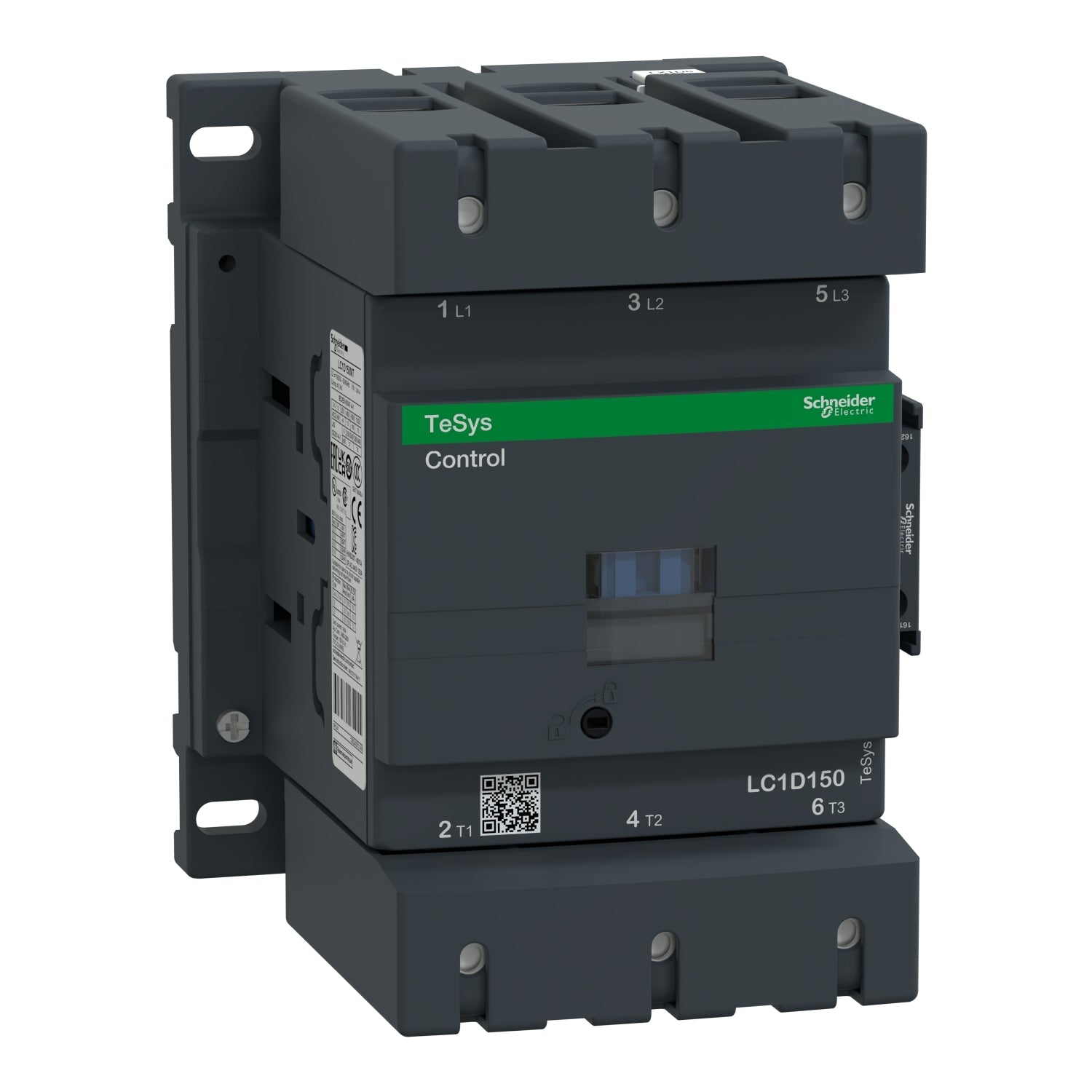

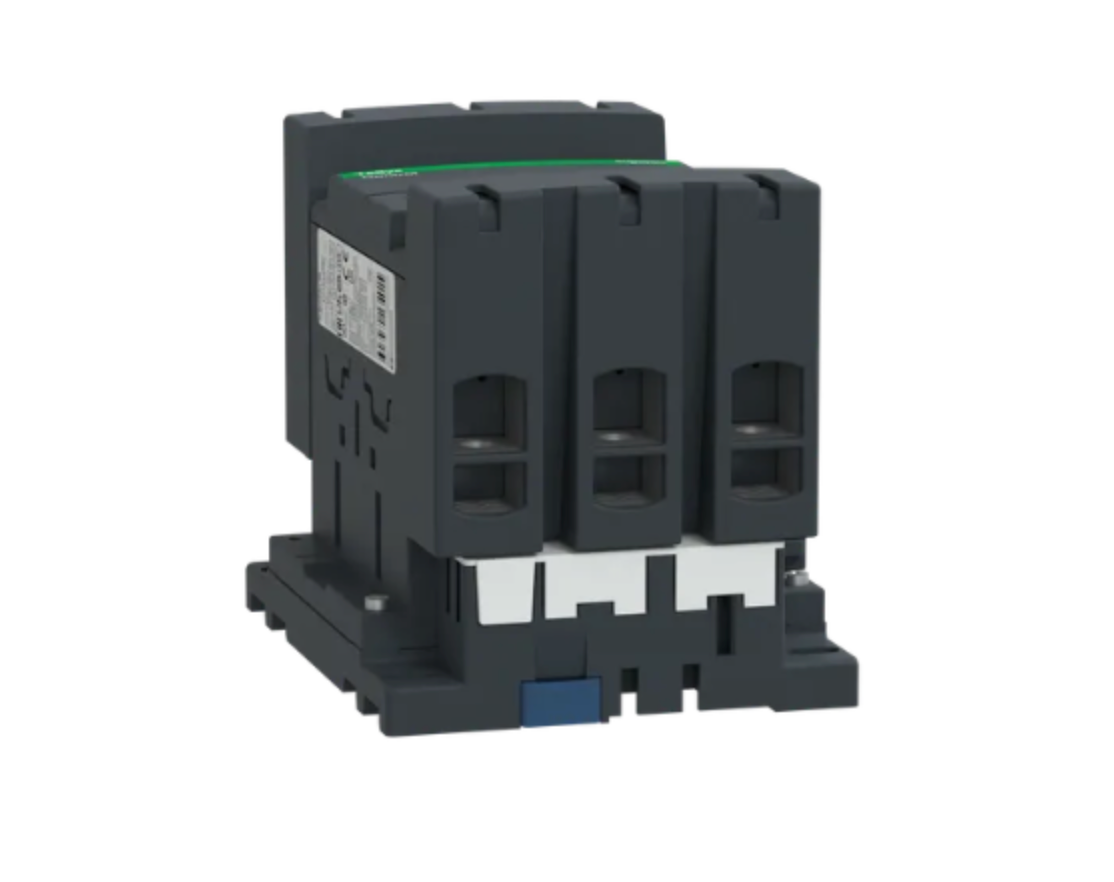

The Schneider Electric LC1D150R7 is a high-capacity 3-pole contactor designed for demanding motor control and power switching applications. It supports operational currents up to 150A in AC-3 utilization category and is equipped with a 440V AC coil for reliable switching performance. Built within the TeSys Deca range, it offers durability and consistent operation in industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Industrial Automation |
| Part Number |
LC1D150R7 |
| Subcategory |
Contactor |
| Series |
TeSys Deca |
| Poles |
3P (3NO) |
| Rated Operational Current (AC-3) |
150 A at ≤ 440 V |
| Rated Operational Voltage |
Up to 1000 V AC |
| Control Voltage |
440 V AC 50/60 Hz |
| Auxiliary Contacts |
1 NO + 1 NC (mirror certified) |
| Motor Power Rating |
Up to 100 kW at 690 V AC |
| Horsepower Rating |
Up to 125 HP at 600 V |
| Mounting Type |
DIN rail or panel mounting |
| Operating Temperature Range |
-40°C to +60°C (up to 70°C with derating) |
| Protection Rating |
IP20 (front face) |
| Standards Compliance |
IEC, UL, CSA, CCC, EAC, Marine |
| Dimensions (H x W x D) |
158 x 120 x 136 mm |
| Weight |
2.5 kg |
Information About LC1D150R7
The LC1D150R7 is part of Schneider Electric’s TeSys Deca series, engineered for robust motor control and resistive load applications in industrial systems. It features a compact yet rugged design with screw clamp terminals and integrated auxiliary contacts, ensuring flexible installation and reliable circuit control. The contactor is compatible with a wide range of accessories and mounting options, including DIN rail and panel mounting. It incorporates advanced coil technology with a built-in transient suppressor to enhance electrical stability and extend service life under frequent switching conditions.
Key Features:
- High Current Capacity: Rated up to 150A (AC-3) for demanding motor control applications
- 3-Pole Configuration: 3 normally open (3NO) contacts for efficient power switching
- Integrated Auxiliary Contacts: Includes 1NO + 1NC (mirror certified NC) for control circuits
- 440V AC Coil: Reliable operation with 50/60 Hz control voltage and transient suppression
- Wide Voltage Compatibility: Supports up to 1000V AC power circuits
- Durable Performance: Mechanical durability up to 8 million cycles
- Flexible Mounting Options: Suitable for DIN rail or panel mounting
- Multi-Standard Certification: Complies with IEC, UL, CSA, CCC, EAC, and Marine standards
The LC1D150R7 delivers the reliability and precision required for heavy-duty motor control and industrial power switching applications.
