Description

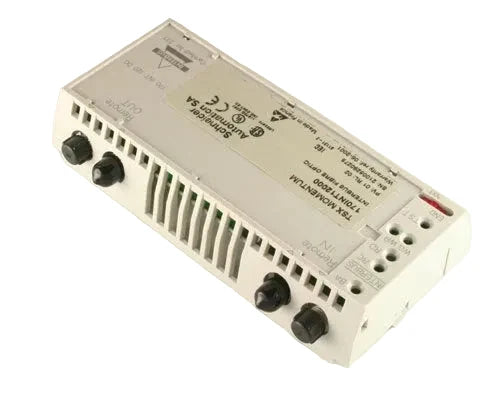

The Schneider Electric 170INT12000 is an INTERBUS communication adaptor designed to integrate fiber optic INTERBUS networks into compatible I/O systems. It supports INTERBUS Generation SUPI 3 communication at a transmission rate of 500 kbit/s for reliable industrial data exchange. This adaptor is used in distributed automation architectures requiring deterministic ring-topology communication over extended distances.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Industrial Communication |
| Part Number |
170INT12000 |
| Subcategory |
Fieldbus Communication Adapters |
| Product Type |
INTERBUS Communication Adaptor |
| Protocol |
INTERBUS Generation SUPI 3 |
| Transmission Rate |
500 kbit/s |
| Communication Medium |
Fiber optic |
| Network Topology |
Ring |
| Total Max. Segment Distance |
12,800 m |
| Max. Distance Between Devices |
400 m |
| Devices per Segment |
0–254 |
| Fail State |
Fail safe |
| Power Supply |
Supplied via I/O base |
| Connectors |
2 × SUB-D 9-pin |
| Local Signaling |
4 status LEDs (BA, RC, RD, Power) |
| Protection Rating |
IP20 |
| Weight |
0.19 lbs (0.09 kg) |
Information About 170INT12000
The 170INT12000 is an INTERBUS Generation SUPI 3 communication adaptor within Schneider Electric’s industrial automation accessory range. It is engineered for fiber optic communication, enabling long-distance, noise-immune data transmission in ring network topologies. The adaptor interfaces directly with an I/O base for power supply and system integration, eliminating the need for external power wiring. Designed for use in legacy INTERBUS systems, it supports fail-safe operation and provides local diagnostics through integrated LED indicators.
Key Features:
- INTERBUS SUPI 3 Protocol Support: Enables deterministic communication within INTERBUS Generation SUPI 3 networks.
- Fiber Optic Transmission: Provides high immunity to electromagnetic interference and extended segment distances.
- Ring Topology Compatibility: Supports closed-loop INTERBUS network architectures for reliable data flow.
- 500 kbit/s Data Rate: Ensures stable and consistent communication performance across connected devices.
- Integrated Fail-Safe State: Maintains controlled behavior in the event of communication failure.
- Dual SUB-D Connectors: Equipped with two 9-pin SUB-D connectors for network connectivity.
- Local Status Indication: Includes four LEDs for power, bus activity, receive, and transmit diagnostics.
The 170INT12000 delivers the reliability and precision required for fiber-based industrial fieldbus communication systems.
