Description

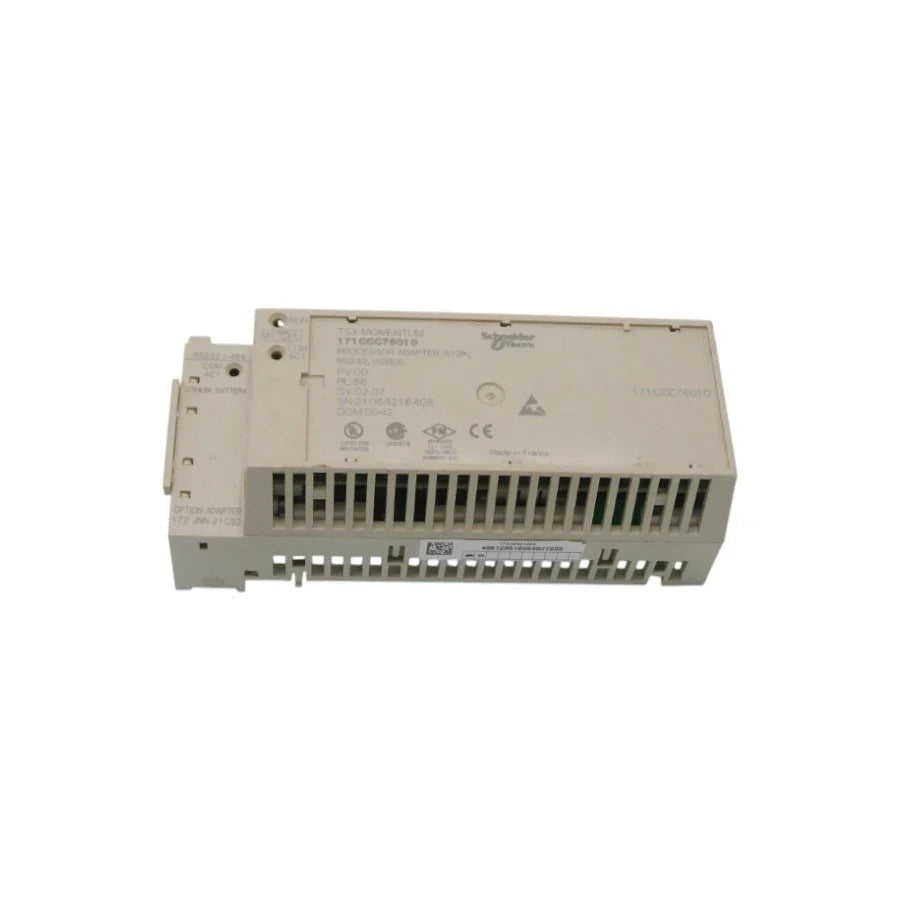

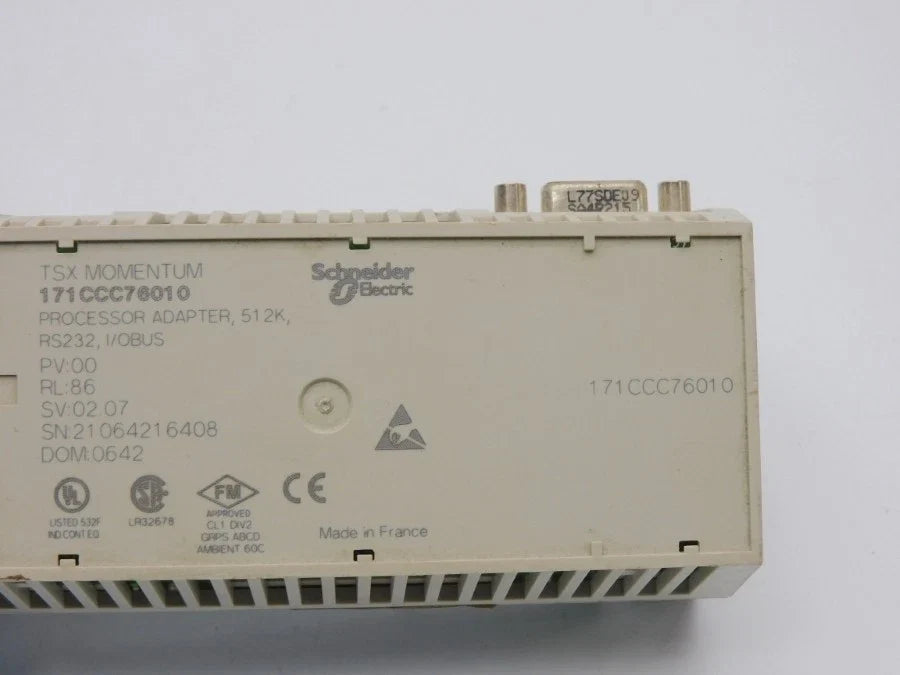

The Schneider Electric 171-CCC-760-10 is a processor adapter module designed to support CPU and I/O integration within Concept PLC systems. It provides a stable interface for processor communication and system expansion in industrial automation environments. This module is typically used in legacy control architectures and has been discontinued by the manufacturer.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
PLCs/Machine Control |
| Part Number |
171-CCC-760-10 |
| Subcategory |
PLC Module/Rack |
| Product Type |
Processor adapter module |
| PLC Platform |
Concept |
| CPU Memory Support |
512K RAM |
| I/O Capacity |
128 I/O |
| Supply Voltage |
5.0 V DC ±5% |
| Mounting Style |
Top hat rail |
| Application Use |
PLC processor and I/O integration |
| Manufacturer Status |
Discontinued by manufacturer |
| Weight |
0.13 lbs |
Information About 171-CCC-760-10
The 171-CCC-760-10 is part of the Schneider Electric Concept PLC platform, which was developed for modular and scalable industrial control systems. It is built as a top-hat–mounted processor adapter module that supports CPU operation with integrated memory resources. The module operates on a regulated 5.0 V DC supply and is designed to manage up to 128 I/O points within a Concept automation configuration. It is commonly found in manufacturing and process control systems where reliable PLC expansion and processor interfacing are required.
Key Features:
- Processor Adapter Module: Provides an interface between the CPU and I/O architecture in Concept PLC systems.
- Concept Platform Compatibility: Designed specifically for Schneider Electric Concept automation environments.
- Integrated Memory Support: Supports CPU operation with up to 512K RAM capacity.
- 128 I/O Capability: Enables management of up to 128 input/output points.
- Top Hat Mounting: Allows secure installation on standard mounting rails.
- Regulated Power Input: Operates on 5.0 V DC with ±5% tolerance.
- Discontinued Model: Intended for maintenance and replacement of existing PLC installations.
The 171-CCC-760-10 delivers the reliability and precision required for processor interfacing and I/O management in legacy PLC automation systems.
