Description

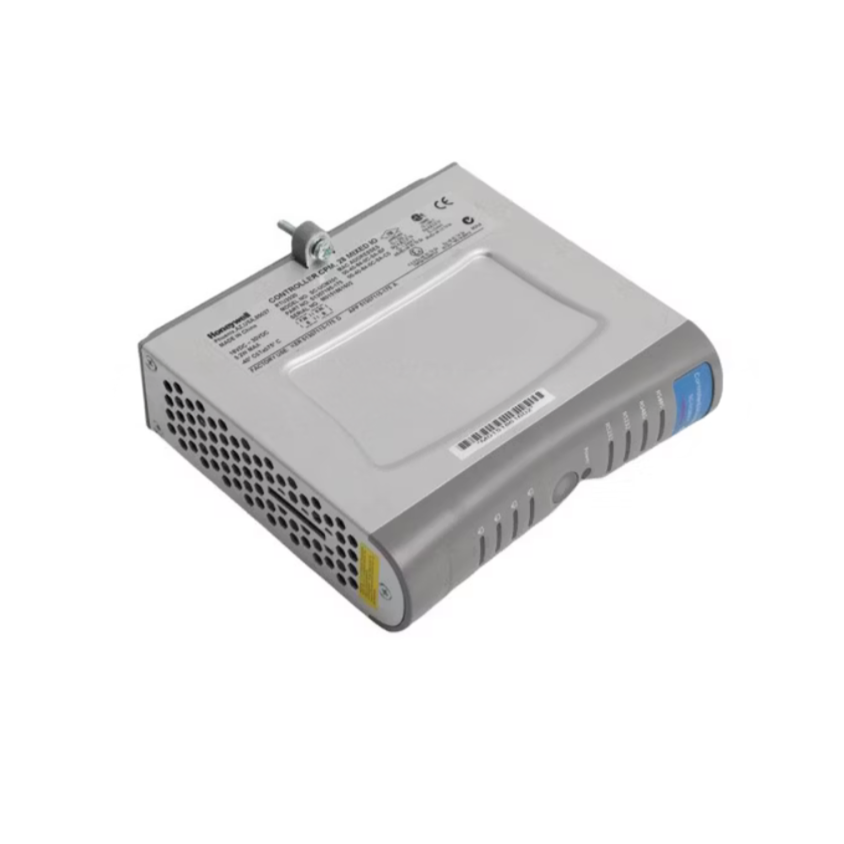

The Honeywell SC-UCMX01 is a non-redundant universal control module with 28 mixed onboard I/O channels, designed for industrial automation, monitoring, and communication. It supports multiple protocols, extended operating temperatures, and versatile connectivity for demanding control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Industrial Controllers |
| Part Number |
SC-UCMX01 |
| Subcategory |
Non-redundant Control Modules |
| Onboard I/O |
28 channels (8 analog inputs, 16 digital inputs) |
| Power Supply |
24–48 VDC |
| Operating Temperature |
-40°C to 85°C |
| Communication Protocols |
Modbus, DNP3, IEC 60870-5-101/104 |
| Ethernet Ports |
2 |
| Memory |
512 MB |
| Dimensions |
5.6 × 12.6 × 13 cm |
| Weight |
0.34 kg (0.75 lbs) |
| Mounting |
Panel or enclosure |
Information About SC-UCMX01
The SC-UCMX01 is part of Honeywell’s industrial-grade control module range, built to operate in harsh environments with high reliability. It offers 8 analog inputs and 16 digital inputs alongside flexible I/O expansion capabilities, enabling integration into diverse automation systems. With dual Ethernet ports and support for Modbus, DNP3, and IEC 60870-5-101/104 protocols, it facilitates seamless communication in SCADA and process control networks. Its wide input voltage range of 24 VDC to 48 VDC and extreme temperature tolerance from -40°C to 85°C make it suitable for both indoor control rooms and outdoor field installations. Compact yet powerful, the SC-UCMX01 is ideal for OEMs, utilities, and industrial operators requiring rugged, programmable control hardware.
Key Features:
-
28 mixed onboard I/O channels: Includes 8 analog inputs and 16 digital inputs for flexible signal handling.
-
Wide power input range: Operates from 24 VDC to 48 VDC, supporting various industrial power systems.
-
Multiple communication protocols: Built-in support for Modbus, DNP3, and IEC 60870-5-101/104 ensures interoperability with different SCADA and automation platforms.
-
Dual Ethernet ports: Enables redundant networking or segmented communication for secure, reliable data exchange.
-
Extended operating temperature: Functions in extreme environments from -40°C to 85°C without performance degradation.
-
Compact industrial design: Measures approximately 5.6 × 12.6 × 13 cm for easy installation in panels and enclosures.
-
High memory capacity: 512 MB onboard memory for data handling, logging, and program storage.
-
Rugged Honeywell build quality: Designed to withstand industrial vibration, dust, and humidity levels common in field deployments.
The SC-UCMX01 delivers the reliability, connectivity, and processing capacity required for modern industrial automation, SCADA integration, and advanced process control.
