Description

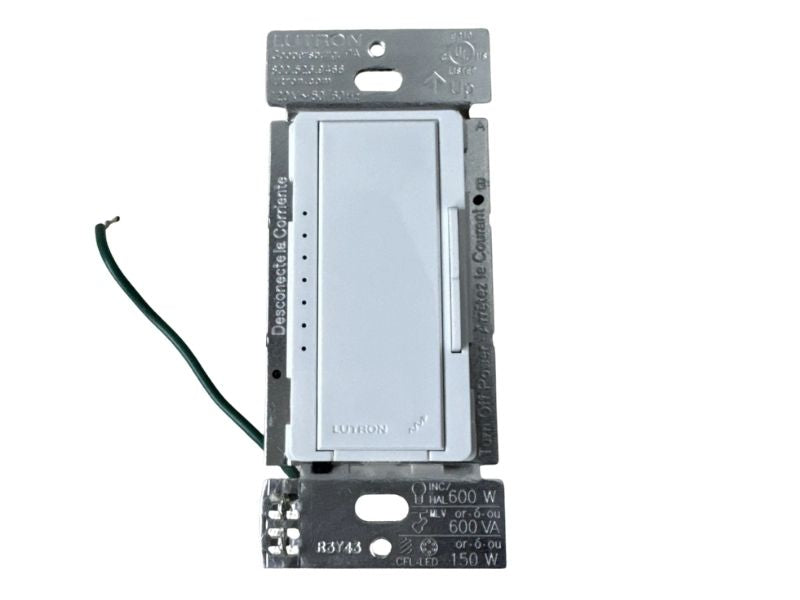

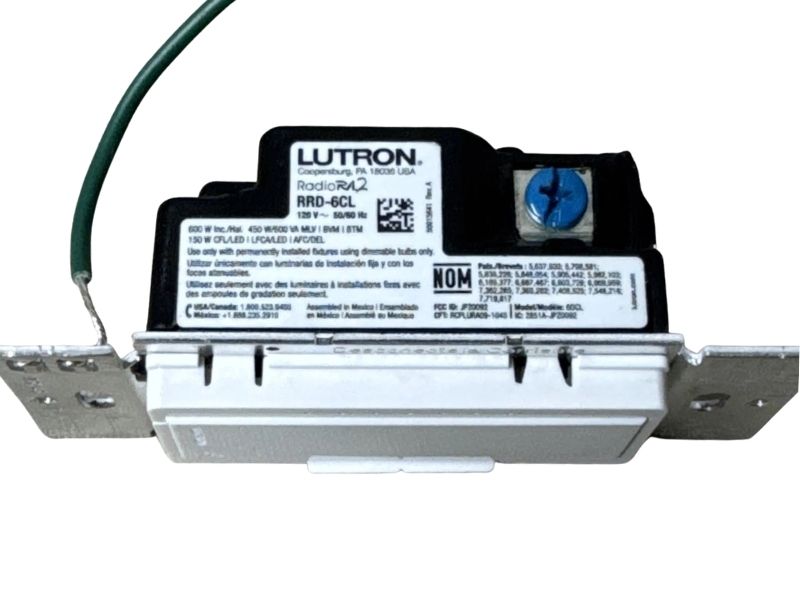

The Lutron RRD-6CL-WH is a CL dimmer switch designed for use with RadioRA 2 systems. It supports on/off and dimming control for incandescent, halogen, and magnetic low-voltage lighting loads. With a sleek wall-mount design and multi-location compatibility, it offers responsive lighting control at 120V AC.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
Lighting Control |
| Part Number |
RRD-6CL-WH |
| Subcategory |
Dimmers |
| Series |
RadioRA 2 Maestro® |
| Mounting Type |
Wall |
| Operation Mode |
On/Off, Fade, Dimming |
| Voltage Rating |
120 VAC |
| Frequency Rating |
50/60 Hz |
| Power Rating |
600 VA |
| Number of Poles |
1 |
| Lamp Type Compatibility |
Incandescent, Halogen, Magnetic Low Voltage |
| Communication Type |
Radio Frequency (RadioRA 2 system) |
| Color |
White |
| Installation |
Single-Pole or Multi-Location |
| Features |
FASSTM Switch, ESD Protection, Fine Dimming Control |
| Humidity Tolerance |
0–90% (Non-Condensing) |
| Temperature Rating |
0 to 40 °C |
| Standards & Approvals |
UL Listed, CSA, FCC, IC, NOM, ANATEL, COFETEL Certified |
| Dimensions (H x W x D) |
4-11/16 in x 2-15/16 in x 5/16 in |
| Weight |
0.35 lbs |
Information About RRD-6CL-WH
The RRD-6CL-WH is part of Lutron’s RadioRA 2 Maestro® dimmer series, tailored for localized lighting control with remote expandability. It installs in single-pole or multi-location applications, supporting remote dimmers for flexible use. This model includes a front-accessible service switch (FASSTM) for safe lamp replacement without removing power. Its two-wire installation and compatibility with standard wallboxes make it ideal for retrofit or new installations.
Key Features:
- Single-Tap Control: Lights fade on/off with a single tap for smooth transitions.
- Full Brightness Access: Double-tap instantly sets lights to full brightness.
- Delayed Fade-to-Off: Press and hold while on to enable delayed light-off.
- Fine Dimming Adjustment: Rocker allows continuous dimming for precise levels.
- Multi-Location Use: Compatible with remote dimmers for versatile control setups.
- Safe Lamp Replacement: Integrated FASSTM switch cuts power at the device.
- Humidity Tolerant: Operates in 0–90% non-condensing humidity environments.
- Reliable Design: ESD tested to IEC 61000-4-2 standards to prevent data loss.
The RRD-6CL-WH delivers the reliability and precision required for advanced residential lighting automation with Lutron’s RadioRA 2 system.
