Description

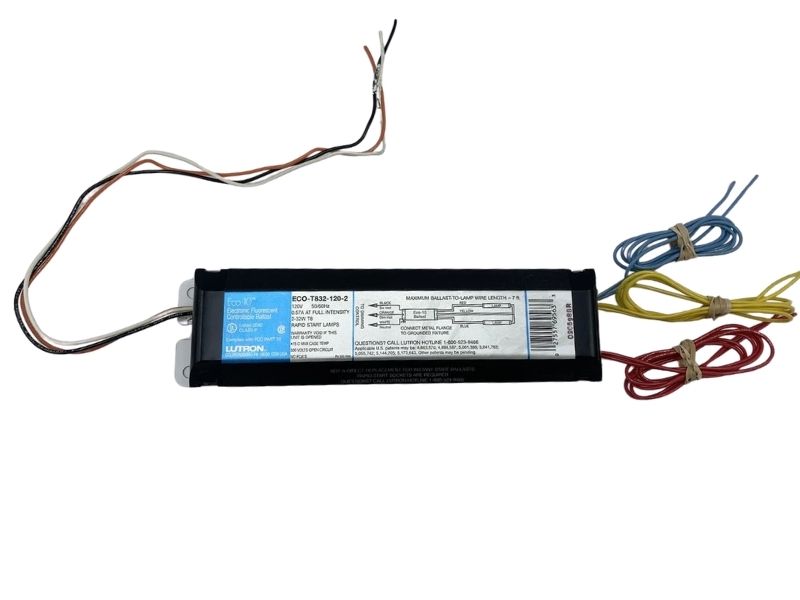

The Lutron ECO-T832-120-2 is a 120 V Eco-10 dimming ballast engineered for use with two T8 32W rapid start fluorescent lamps. It enables smooth dimming down to 10% light output with programmed rapid start performance. Designed for energy-saving lighting systems, this ballast is ideal for commercial and institutional applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
Lighting Control |
| Part Number |
ECO-T832-120-2 |
| Subcategory |
Dimming Ballasts |
| Series |
Eco-10 |
| Lamp Compatibility |
(2) T8 32W Rapid Start Fluorescent Lamps |
| Dimming Range |
100% to 10% |
| Starting Method |
Programmed Rapid Start |
| Input Voltage |
120 V AC |
| Input Frequency |
60 Hz |
| Input Current |
0.57 A Max |
| Maximum Output Voltage |
500 V |
| Power Type |
Electronic |
| Noise Level |
Low, virtually silent |
| Ballast Type |
Dimmable electronic ballast |
| Mounting |
Fixture-integrated (standard ballast footprint) |
| Use Case |
Commercial, institutional, office environments |
| Compliance |
UL Listed, meets energy codes |
| Weight |
~1.2 lb |

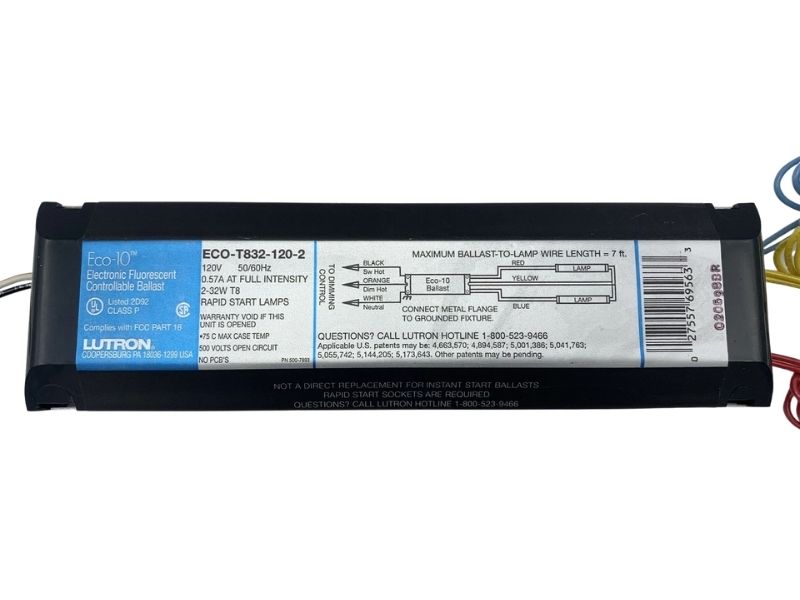

Information About ECO-T832-120-2
The ECO-T832-120-2 belongs to Lutron’s Eco-10 series of high-performance electronic dimming ballasts. It is designed for use with (2) 32-watt T8 rapid start fluorescent lamps and offers full-range dimming from 100% down to 10% of light output. This ballast operates at 120 V, 60 Hz with a maximum input current of 0.57 A. Its programmed rapid start technology enhances lamp life and ensures flicker-free performance in applications requiring consistent and controllable light levels.
Key Features:
- Eco-10 Dimming: Provides smooth dimming from 100% to 10% output.
- Lamp Compatibility: Operates (2) T8 32W rapid start fluorescent lamps.
- Programmed Start: Maximizes lamp life with reduced electrode wear.
- Voltage Rating: Operates on 120 V, 60 Hz systems.
- Energy Efficient: Helps reduce lighting power consumption and meets energy codes.
- Quiet Operation: Virtually silent electronic operation with minimal noise.
- Application Ready: Ideal for commercial, office, or institutional lighting systems.
- Compact Form: Easy to install within standard fixture housings.
The ECO-T832-120-2 delivers the reliable dimming performance and efficiency required for professional-grade fluorescent lighting systems.
