Description

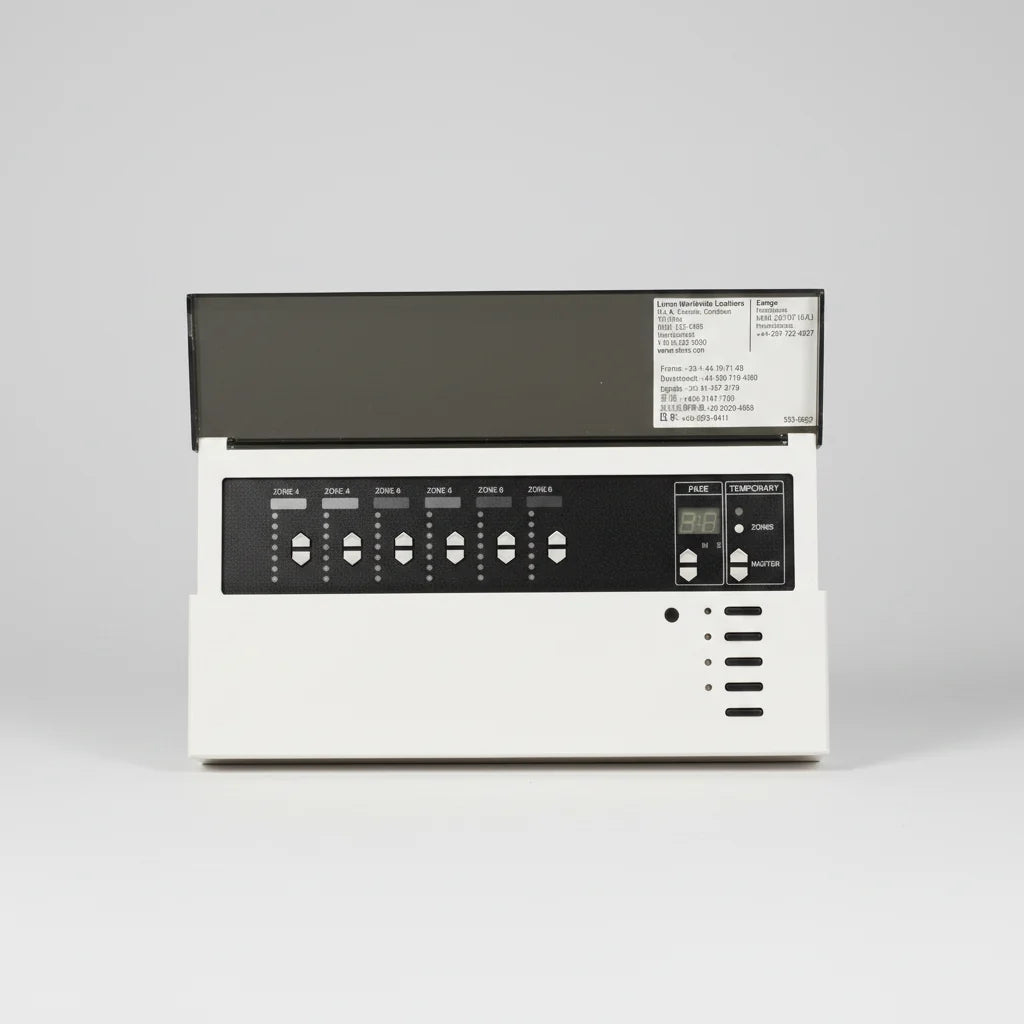

The Lutron GRX-3506-T-WH is a 6-zone preset dimming control unit from the Grafik Eye 3000 series. It allows users to recall four preset lighting scenes and an Off scene at the push of a button. Designed for multi-zone lighting management, it supports direct control of many light sources and integrates seamlessly with Lutron power interfaces.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
|
| Part Number |
GRX-3506-T-WH |
| Subcategory |
Multi-Zone Preset Dimming Units |
| Series |
Grafik Eye 3000 |
| Type |
6-Zone Preset Dimming Control |
| Voltage Rating |
120 VAC |
| Load Capacity |
2000 W/VA |
| Number of Zones |
6 |
| Preset Scenes |
4 + Off |
| Control Interface |
Pushbutton, IR Remote, Optional PC |
| IR Receiver |
Built-in |
| Scene Adjustment |
1% increments via PC |
| Finish/Color |
Translucent Black Cover, Matte White Finish |
| Operating Temperature |
0°C to 40°C |
| Mounting |
Wall-mounted control unit |
| Certifications |
UL Listed, CSA Certified |
| Weight |
2 lbs (approx. 0.9 kg) |
Information About GRX-3506-T-WH
The GRX-3506-T-WH is a 120V dimming module designed for advanced scene-based lighting management in commercial or residential settings. It supports up to six independent lighting zones with a total load of 2000W/VA. The unit features a translucent black cover with a matte white finish, built-in infrared receiver, and optional PC configuration for 1% dimming increments. Lockout functionality prevents accidental changes, ensuring reliable lighting control in any environment.
Key Features:
- Multi-Zone Control: Manages up to six independent lighting zones with a 2000W/VA total load.
- Preset Lighting Scenes: Provides four programmable lighting scenes plus an Off setting.
- Built-in IR Receiver: Enables remote operation with optional Lutron infrared controllers.
- Flexible Integration: Supports many light sources directly and others via Lutron power interfaces.
- Scene Customization: Lighting levels adjustable in 1% increments via PC setup.
- Lockout Protection: Prevents unintended adjustments to programmed lighting scenes.
- Temperature Range: Operates reliably from 0°C to 40°C for most indoor environments.
The GRX-3506-T-WH delivers precision and convenience for multi-zone dimming and scene control applications.
