Description

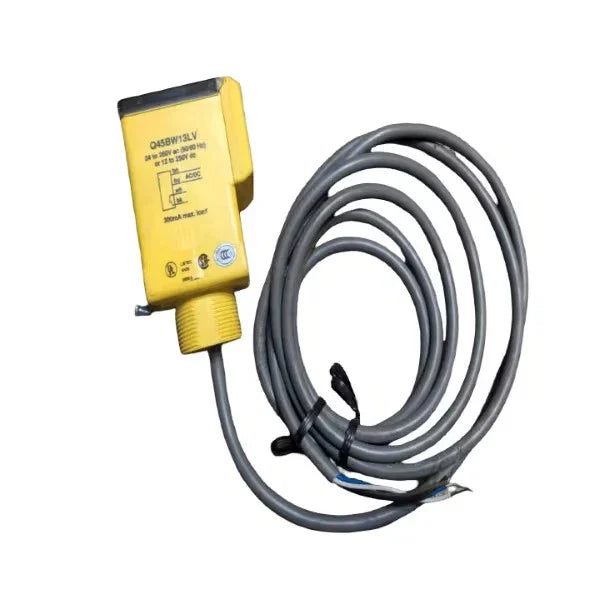

The Banner Engineering Q45BW13LV is a non-polarized retroreflective photoelectric sensor designed for object detection at distances from 0.08 to 9 meters. It supports universal supply voltage of 12–250 VDC or 24–250 VAC and provides an SPST solid-state relay output. The sensor includes a visible red LED beam and a 2-meter integral cable connection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors & Switches |
| Part Number |
Q45BW13LV |
| Subcategory |
Photoelectric |
| Series |
Q45 Series |
| Sensing Mode |
Non-Polarized Retroreflective |
| Sensing Range |
0.08 – 9 m |
| Light Source |
Visible Red LED (680 nm) |
| Supply Voltage |
12–250 VDC / 24–250 VAC |
| Output Type |
SPST Solid-State Relay |
| Response Time |
2 ms |
| Repeatability |
500 µs |
| Turn-On Delay |
100 ms |
| Connection Type |
2 m Integral Cable |
| Housing Style |
Rectangular |
| Housing Material |
Thermoplastic |
| Lens Material |
Acrylic |
| Environmental Rating |
IP67 |
| NEMA Rating |
NEMA 6P |
| Operating Temperature |
-25°C to +55°C |
| Relative Humidity |
90% at 50°C |
| Weight |
1.64 lbs |
Information About Q45BW13LV
The Q45BW13LV belongs to the Banner Engineering Q45 Series, engineered for industrial environments requiring durable construction and stable sensing performance. It operates in non-polarized retroreflective mode, using a reflector to detect objects across extended distances. The rectangular thermoplastic housing is rated IP67 and NEMA 6P, supporting use in wet and washdown conditions. Sensitivity adjustment is performed via a built-in potentiometer, and LED indicators display power, signal, and output status.
Key Features:
-
Non-polarized retroreflective sensing: Detects objects using an external reflector.
-
0.08–9 m sensing range: Suitable for medium- to long-range detection.
-
Universal AC/DC supply: 12–250 VDC or 24–250 VAC operation.
-
SPST solid-state relay output: Industrial switching configuration.
-
Visible red LED beam: 680 nm wavelength for alignment.
-
IP67 and NEMA 6P rating: Designed for harsh industrial environments.
-
2 m integral cable: Prewired connection for installation.
The Q45BW13LV delivers the reliability and precision required for industrial retroreflective photoelectric sensing applications.
