Description

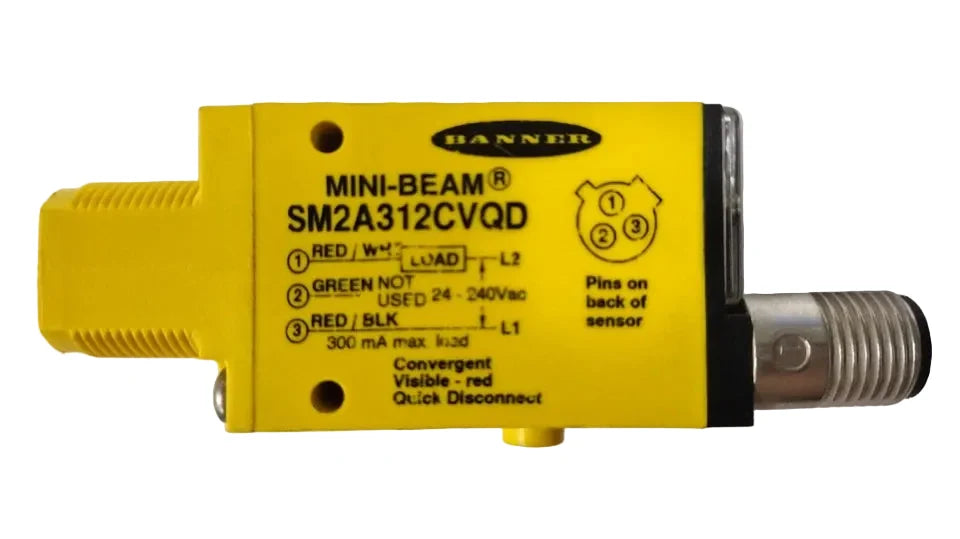

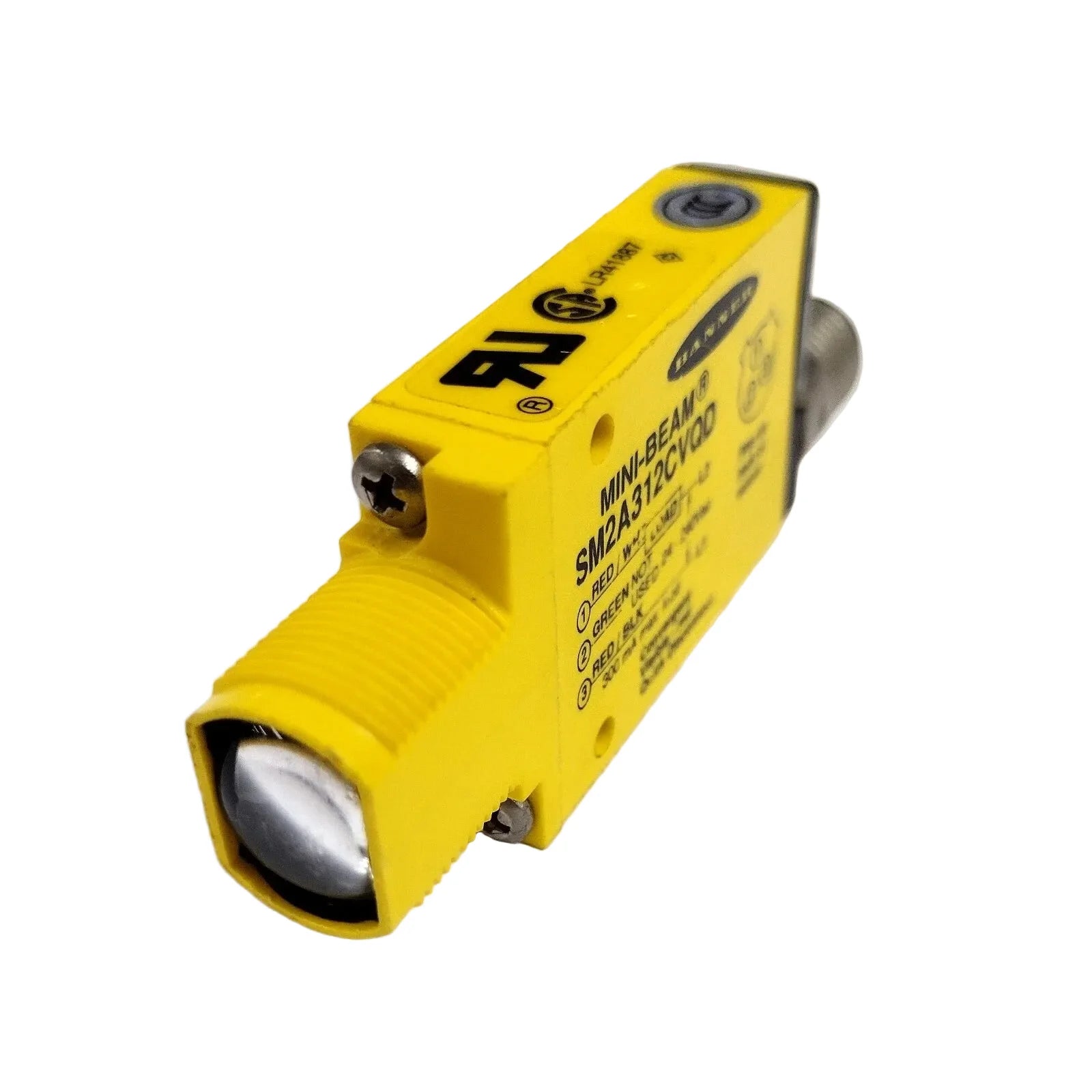

The Banner Engineering SM2A312CVQD is an AC-powered convergent photoelectric sensor designed for precise short-range proximity detection. It features a fixed 16 mm focal point and a visible red 650 nm LED light source. The sensor provides a solid-state AC switching output and operates on a 24–240 VAC supply.

Technical Specifications

Information About  SM2A312CVQD

The SM2A312CVQD is part of the Banner Engineering MINI-BEAM® AC series, developed for industrial sensing applications requiring direct AC line operation. It uses convergent sensing technology to detect objects at a defined focal distance while reducing background influence. The sensor includes a potentiometer for sensitivity adjustment and supports light or dark operate modes. Its thermoplastic rectangular housing with M18 threaded mounting and IP67/NEMA 4X protection enables installation in industrial environments.

Key Features:

• Convergent sensing mode: Fixed 16 mm focal point for controlled object detection.

• AC line operation: Operates directly on 24–240 VAC supply.

• Visible red LED source: 650 nm wavelength for alignment and sensing.

• Solid-state AC switch output: SPST two-wire configuration.

• Adjustable sensitivity: Potentiometer-based tuning.

• IP67 environmental rating: Sealed housing for industrial environments.

• Micro-style quick disconnect: 3-pin integral connector for simplified wiring.

The SM2A312CVQD delivers the reliability and precision required for industrial AC-powered convergent photoelectric sensing applications.
