Description

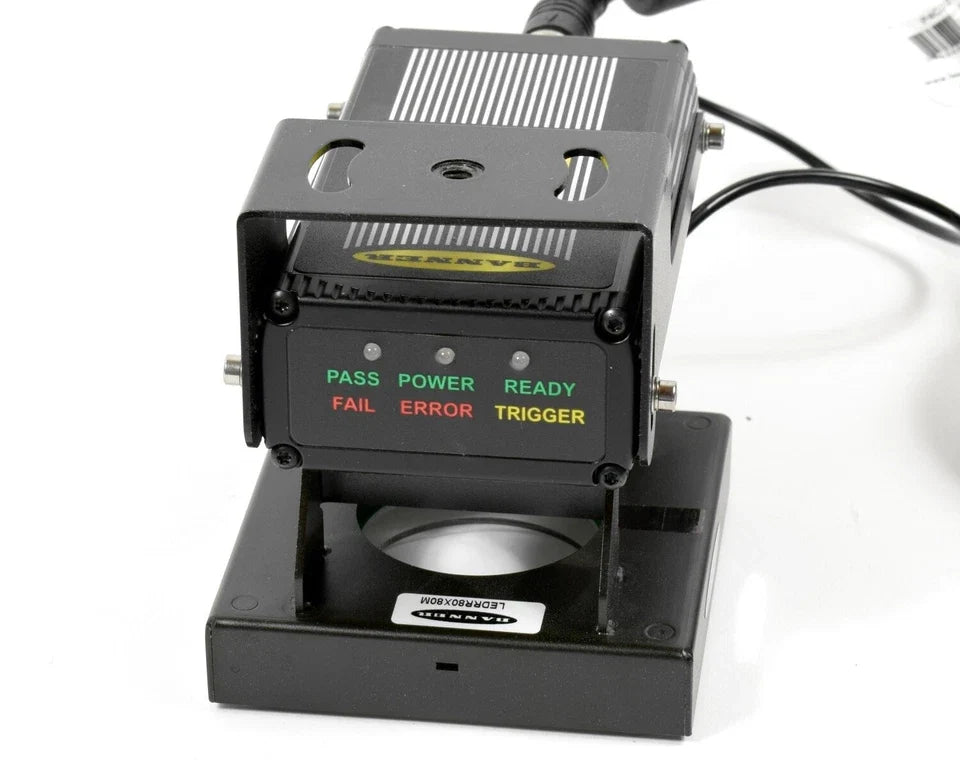

The Banner Engineering LEDRR80X80M is a PresencePLUS ring light designed to provide uniform visible red illumination for machine vision and inspection applications. It features an 80 × 80 mm illumination area optimized for enhancing contrast and image clarity. This ring light operates on DC power and is intended for integration into industrial vision systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Industrial Vision & Lighting |
| Part Number |
LEDRR80X80M |
| Subcategory |
Ring Lights |
| Product Type |
LED Ring Light |
| Series |
PresencePLUS |
| Illumination Color |
Red |
| Color Technology |
Standard LED |
| Supply Voltage |
24 VDC |
| Maximum Current |
250 mA |
| Housing Material |
Low-Carbon Steel |
| Window Material |
Acrylic |
| Housing Style |
Rectangular |
| Physical Dimensions |
87.3 × 87.3 × 35.5 mm |
| Connection Type |
Pigtail Quick-Disconnect |
| Cable Length |
300 mm (1 ft) |
| Connector Type |
M8, 3-Pin |
| Number of Pins |
3 |
| IP Rating |
Not Specified |
| Operating Temperature (Max) |
50 °C |
| Intended Use |
Machine Vision Illumination |
| Weight |
1.1 lb |
Information About LEDRR80X80M
The LEDRR80X80M is part of Banner Engineering’s PresencePLUS illumination portfolio, developed to support reliable and repeatable machine vision performance. It is constructed with a low-carbon steel housing and an acrylic window to ensure durability and consistent light output. The ring light connects via a pigtail quick-disconnect cable with an M8 connector for straightforward integration with compatible power and control modules. It is commonly used in inspection, verification, and presence-detection systems where controlled red LED illumination is required.
Key Features:
- PresencePLUS Ring Light Design: Engineered for machine vision and inspection lighting applications.
- 80 × 80 mm Illumination Area: Provides consistent light coverage for compact inspection zones.
- Visible Red LED Output: Enhances contrast for vision systems using monochrome or color cameras.
- Standard LED Technology: Delivers stable illumination suitable for continuous operation.
- Pigtail Quick-Disconnect Connection: Includes a 300 mm cable with M8 connector for easy installation.
- Durable Industrial Housing: Constructed from low-carbon steel with an acrylic window.
- DC Powered Operation: Designed for use with 24 VDC industrial power systems.
The LEDRR80X80M delivers the reliability and precision required for industrial machine vision illumination applications.
