Description

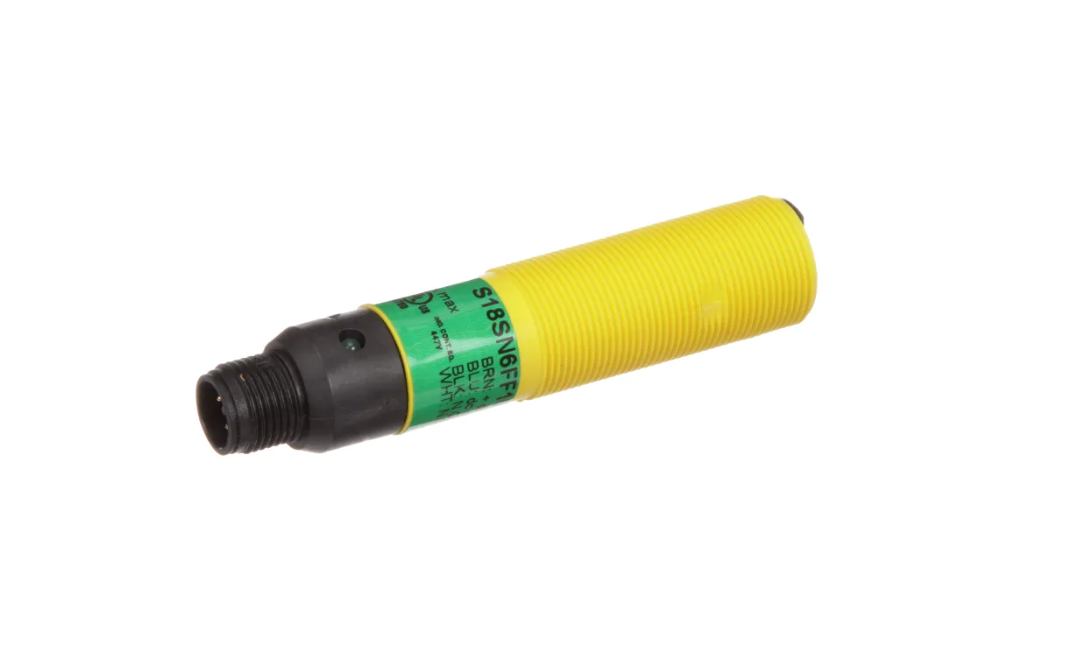

The Banner Engineering S18SN6FF100Q is a fixed-field photoelectric sensor designed for proximity detection at a defined 100 mm sensing distance. It operates on a 10–30 VDC supply and provides complementary NPN discrete outputs. The sensor features infrared LED emission and a 4-pin M12 integral quick-disconnect connection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors & Switches |
| Part Number |
S18SN6FF100Q |
| Subcategory |
Photoelectric |
| Series |
EZ-BEAM S18 |
| Sensing Mode |
Fixed Field (Background Suppression) |
| Maximum Sensing Distance |
100 mm |
| Light Source |
Infrared LED |
| Supply Voltage |
10–30 VDC |
| Output Type |
Complementary NPN |
| Response Time |
3 ms |
| Repeatability |
750 µs |
| Turn-On Delay |
100 ms |
| Connection Type |
4-pin M12 Integral QD |
| Housing Style |
18 mm Threaded Barrel |
| Housing Material |
Thermoplastic |
| Lens Material |
Acrylic |
| Environmental Rating |
IP67, IP69K |
| NEMA Rating |
NEMA 4X, NEMA 6P |
| Operating Temperature |
-40°C to +70°C |
| Relative Humidity |
90% at 50°C |
| Weight |
0.120 lb |
Information About S18SN6FF100Q
The S18SN6FF100Q is part of the Banner Engineering EZ-BEAM® S18 Series, which incorporates fixed-field background suppression technology to detect objects within a defined sensing zone while ignoring background surfaces. This model operates as a self-contained DC-powered sensor with complementary NPN outputs supporting light or dark operate modes. The 18 mm threaded thermoplastic barrel housing is fully encapsulated and rated IP67/IP69K and NEMA 4X/NEMA 6P for washdown environments. Integrated LED indicators provide output status and signal strength monitoring, including marginal gain indication.
Key Features:
-
Fixed-field sensing: 100 mm defined detection range with background suppression.
-
DC operation: 10–30 VDC supply voltage.
-
Complementary NPN outputs: Discrete light/dark operate configuration.
-
Infrared LED source: Designed for stable industrial sensing.
-
Washdown rated housing: IP67 and IP69K protection with NEMA 4X/NEMA 6P rating.
-
Wide temperature range: Operates from -40°C to +70°C.
-
4-pin M12 connection: Integral quick-disconnect interface.
The S18SN6FF100Q delivers the reliability and precision required for fixed-field industrial photoelectric sensing applications.
