Description

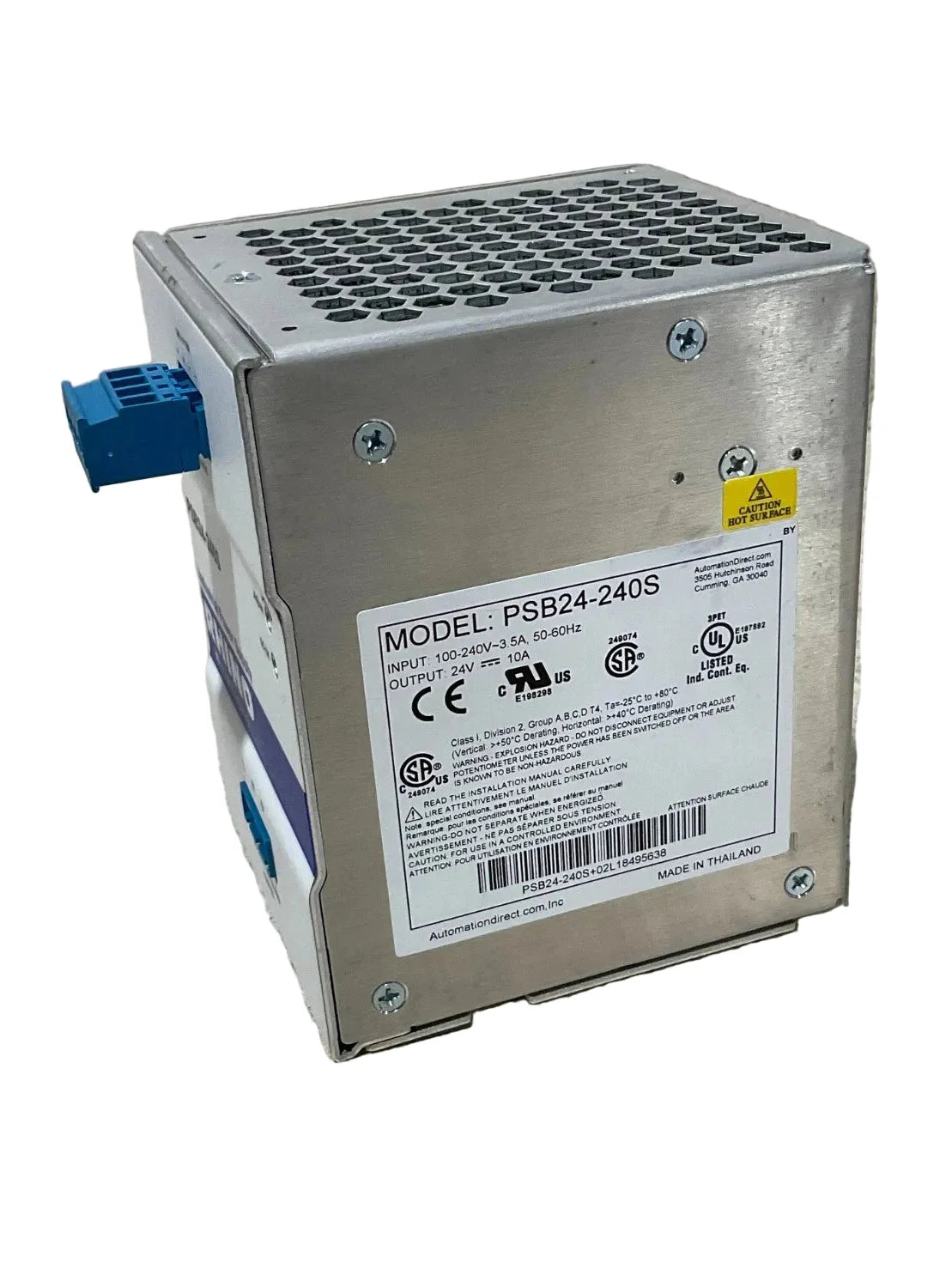

The RHINO PSB24-240S is a DIN-rail mounted switching power supply designed to convert AC or DC input voltage into a regulated 24 VDC output for industrial control systems. Manufactured by RHINO, this unit delivers up to 10 A output current with a maximum power rating of 240 W. It is engineered for reliable operation in automation panels and hazardous-location installations requiring stable DC power.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
RHINO |
| Category |
Power Supplies |
| Part Number |
PSB24-240S |
| Subcategory |
Power Supply |
| Series |
PSB Series |
| Input Voltage Range |
85–264 VAC / 120–375 VDC |
| Input Frequency |
47–63 Hz |
| Output Voltage |
24 VDC |
| Output Voltage Adjustment |
24–28 VDC |
| Output Current |
10 A |
| Output Power |
240 W |
| Efficiency |
>89% |
| Mounting Type |
35 mm DIN Rail |
| Protection Features |
Overvoltage, overload, short circuit |
| Operating Temperature |
-25°C to +80°C |
| Housing Material |
Aluminum |
| Protection Rating |
IP20 |
| Weight |
1.84 lbs |
Information About PSB24-240S
The PSB24-240S is part of the RHINO PSB Series switching power supply line designed for industrial automation and control applications. It supports a wide input voltage range from 85–264 VAC or 120–375 VDC and provides a regulated 24 VDC output adjustable up to 28 VDC. The unit features integrated protection mechanisms including overload, short-circuit, and overvoltage protection to maintain stable operation under varying load conditions. Its aluminum enclosure and 35 mm DIN-rail mounting configuration allow installation in control cabinets used in manufacturing, process control, and automation systems.
Key Features:
-
Wide Input Voltage Range: Accepts 85–264 VAC or 120–375 VDC for flexible installation.
-
High Output Capacity: Provides 24 VDC output at up to 10 A with a maximum power rating of 240 W.
-
Adjustable Output Voltage: Output can be adjusted from 24 VDC to 28 VDC using a built-in potentiometer.
-
Industrial Protection Features: Includes overvoltage, overload, and short-circuit protection mechanisms.
-

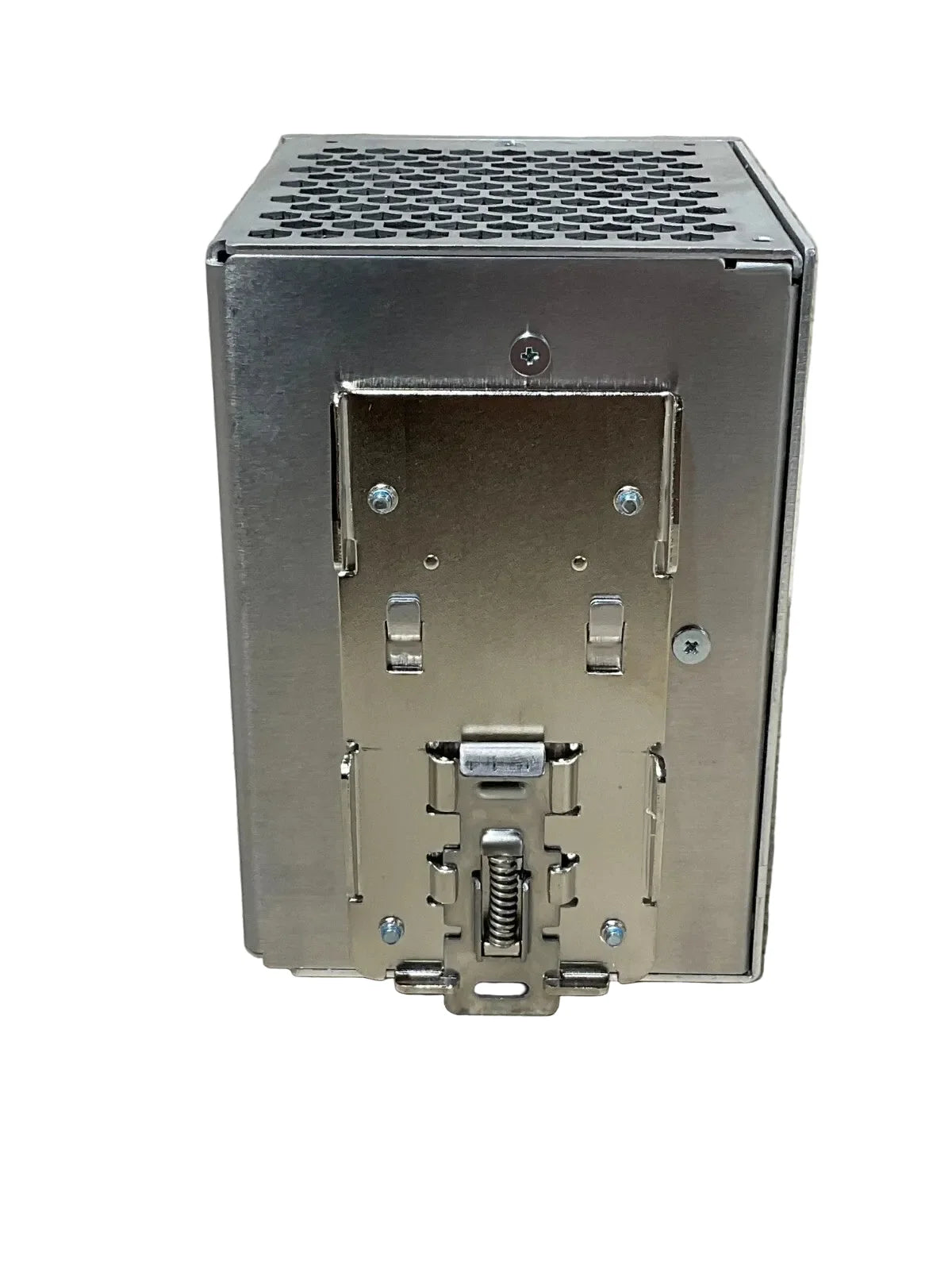

DIN Rail Mount Design: Installs easily on standard 35 mm DIN rails used in control cabinets.
-

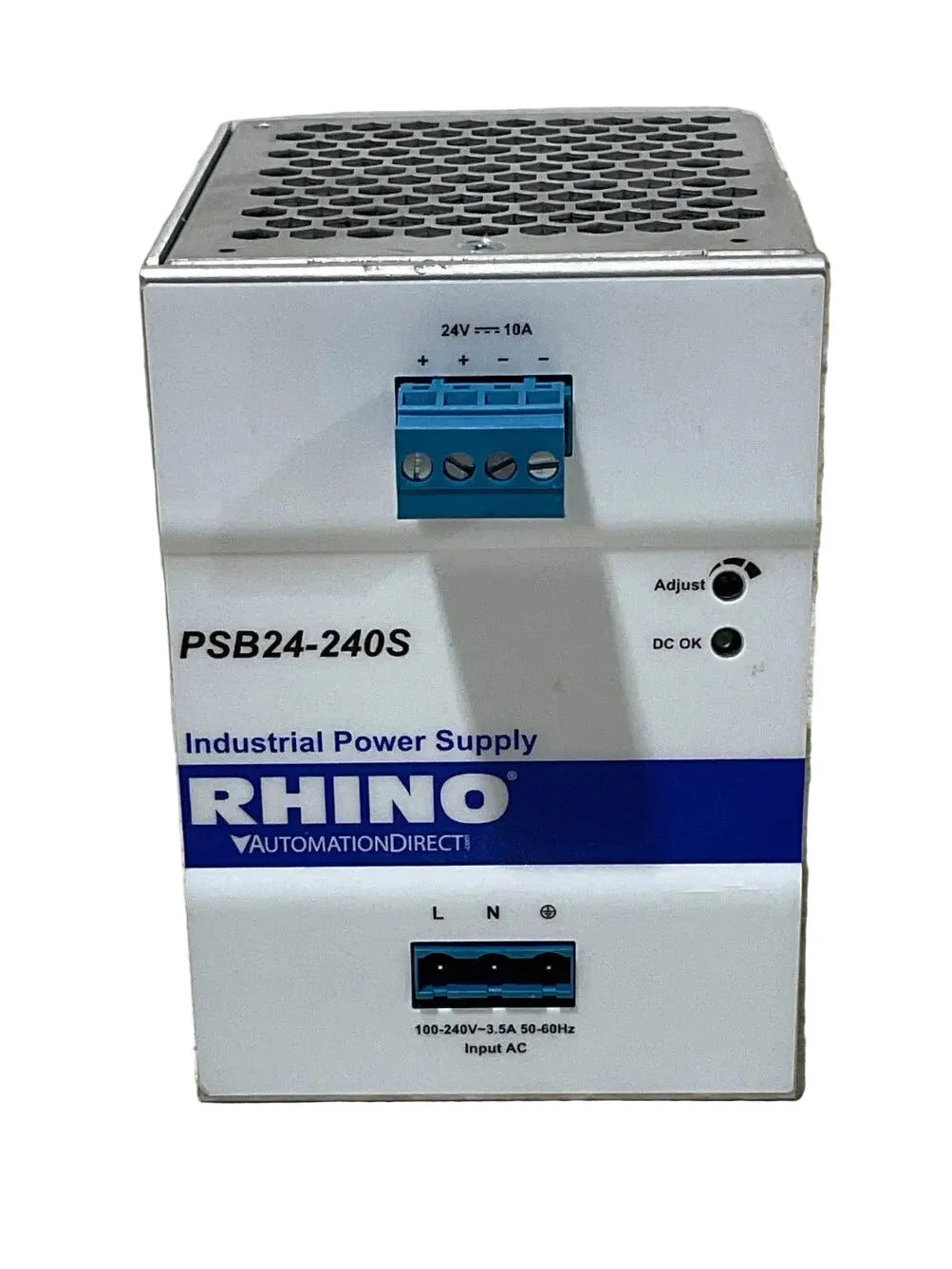

LED Status Indicator: Integrated green DC OK LED indicates proper output operation.
-

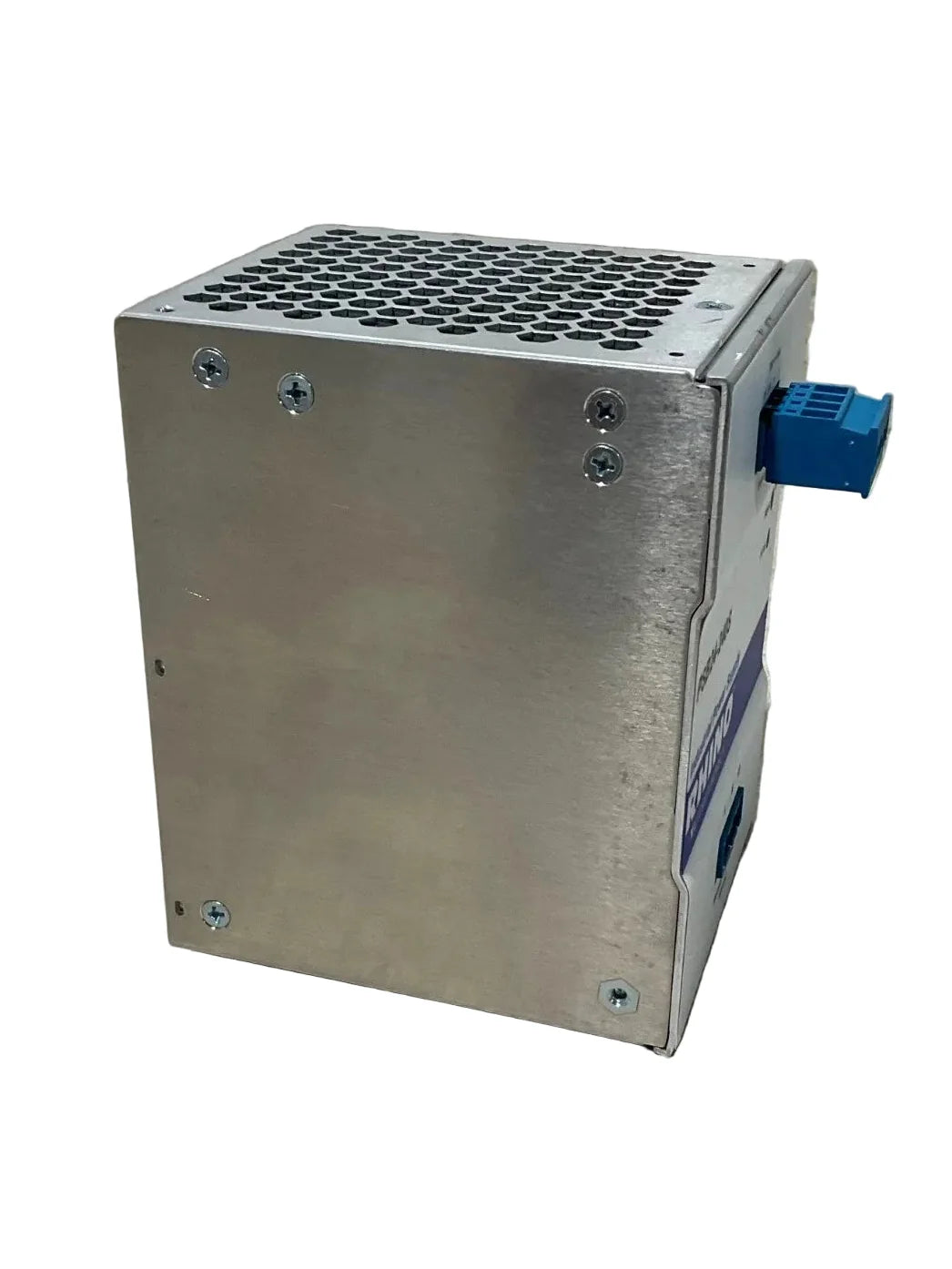

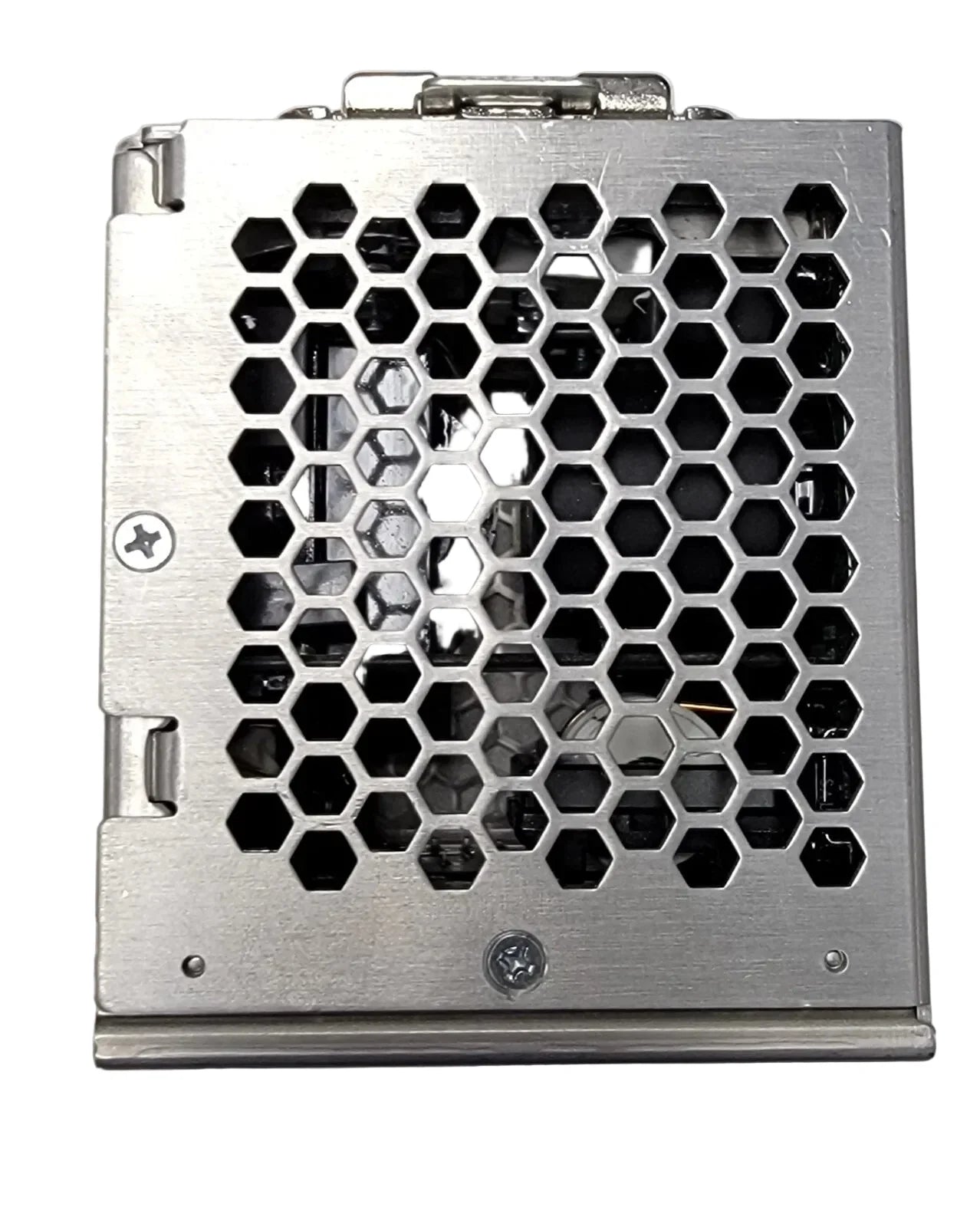

Rugged Aluminum Housing: Designed for durability and improved heat dissipation in industrial environments.
-
Hazardous Location Rating: Suitable for Class I Division 2 installations in industrial control systems.
The PSB24-240S delivers the reliability and stable DC power required for industrial automation equipment and control systems.
