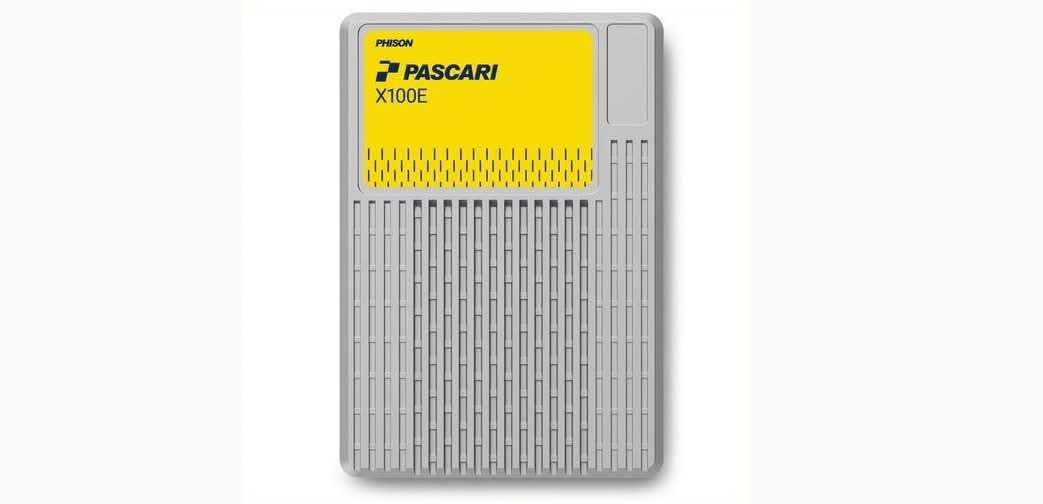

PHISON XX106H003T20E224T0900 Pascari X100E 3.2TB U.2 Dual Port PCIe Gen4x4 Opal SSD
Specifications
Model Number:XX106H003T20E224T0900
Brand: PHISON
Alt Part Number(s):XX106H003T20E224T0900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:XX106H003T20E224T0900
Capacities: 3.2TB
Security: Opal
Form Factor: U.2
Interface: PCIe Gen4x4
Dual Port: 2 lanes
AER: PCIe Advanced Error Reporting
Performance
Sequential Read/Write (128KB, QD=32): 7,000 / 6,700 MB/s
Random Read/Write (4K, QD=64): 1,600K / 430K IOPS
Latency
QD=1: 100 / 15 µs
QD=32: 110 / 120 µs
QD=64: 450 / 1600 µs
IOPS Consistency: 95%
Quality of Service (99%)
QD=1: 100 / 12 µs
QD=32: 140 / 100 µs
QD=64: 600 / 2000 µs
Power Consumption
Random Read: 13.8W
Random Write: 16.4W
Sequential Read: 11.0W
Sequential Write: 18.3W
Idle: 5.83W
Inrush Current: 1.5A
DWPD: 3
TBW: 17.52TB
MTBF: 2,500,000 hours
UBER: < 1 sector per 10^18 bits read
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
Flash Management
ECC
Wear Leveling: Static and Dynamic
Bad Block Management
TRIM Support
SMART Support
Over-Provisioning
Firmware Upgradeable
Temperature
Operating: 0 °C – 70 °C (with specified airflow)
Storage: -40 °C – 85 °C
RoHS Compliant
Enterprise Features
Namespace Support
Dual Port Support
Reservation Support
Metadata Protection
Thermal Throttling
Power Loss Protection
Encryption: AES-XTS 256-bit
SMBus Support
NVMe-MI Support
Data Retention: 3 months
Compliance: PCIe 4.0
Compliance: NVMe 1.4
Compliance: NVMe-MI Rev 1.1
*
