Overview

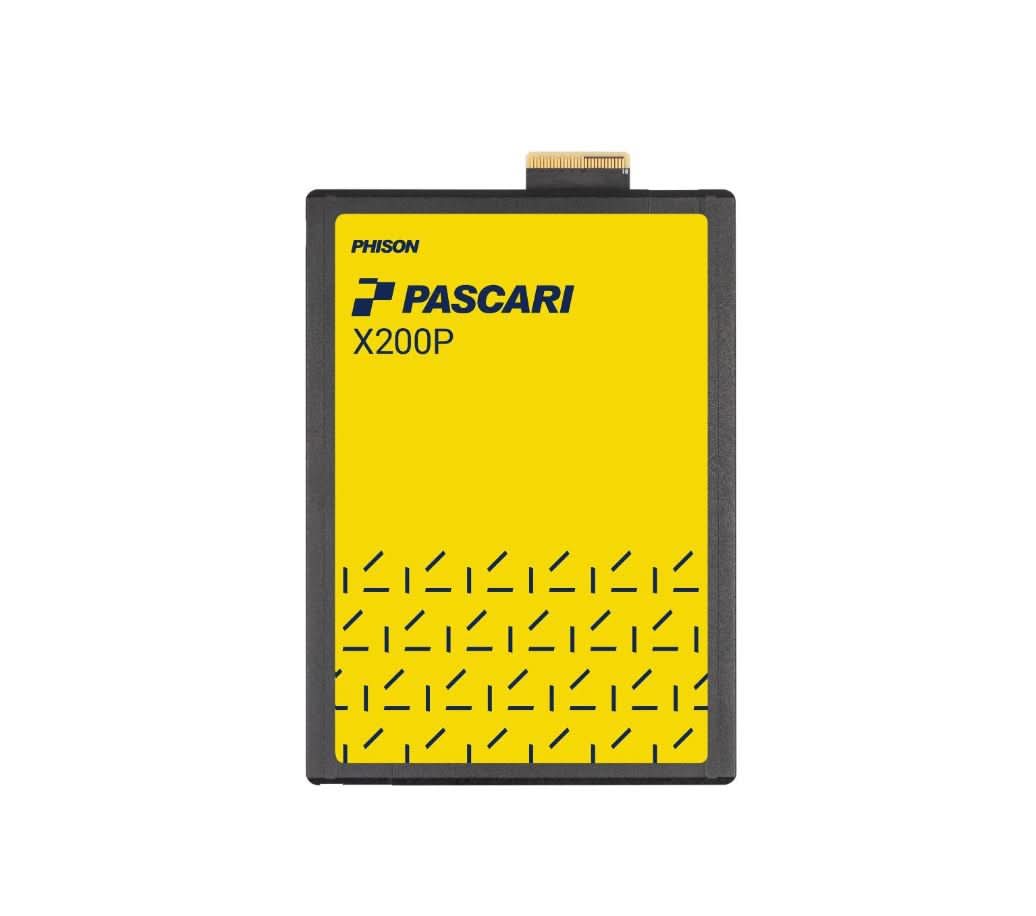

PHISON XP208H021T92P322T0410 Pascari X200P 1.92TB U.2 15mm PCIE 5.0 Single Port ISE Solid State Drive

Specifications

Model Number:XP208H021T92P322T0410

Brand:   PHISON

Alt Part Number(s):XP208H021T92P322T0410

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP208H021T92P322T0410

Storage Capacity: 1.92 TB

Form Factor: U.2 15mm

Drive Interface: PCI Express NVMe

Drive Interface Standard: PCIe Gen5 x4 (Single Port)

NVMe Version: 2.0

Compliance:

• PCI Express Base Specification Rev. 5.0
• NVM Express Base Specification Rev. 2.0
• NVM Express Management Interface Rev. 1.2
• PCI Express SFF-8639 Module Specification Revision 5.0, Version 0.7

Maximum Sequential Read: 14,800 MB/s

Maximum Sequential Write: 4,300 MB/s

Random 4KB Read: 2,400,000 IOPS

Random 4KB Write: 140,000 IOPS

Power Consumption (128K Read, Avg. RMS): 16 W

Power Consumption (128K Write, Avg. RMS): 14 W

Power Consumption (4KB Read, Avg. RMS): 15 W

Power Consumption (4KB Write, Avg. RMS): 16 W

Power Consumption (4KB 70/30 R/W, Avg. RMS): 14 W

Power Consumption (Idle): 5 W

Endurance (DWPD): 1

Endurance (TBW): 3,504 TB

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

Operating Temperature: 0°C to 70°C (with specified airflow)

Non-Operating Temperature: -40°C to 85°C

Shock (Operating): 500G, 2ms

Shock (Non-Operating): 1000G, 0.5ms

Vibration (Operating): 2.17 Grms (7 - 800 Hz)

Vibration (Non-Operating): 16.3 Grms (10 - 2000 Hz)

Drop Tolerance: 80 cm, 6 surfaces

Bending Resistance: 50 N, 60s

Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Environmental Compliance: RoHS Compliant

Features:

• Power Loss Protection
• Hardware AES-XTS 256-bit Encryption
• Thermal Throttling
• Metadata Protection
• Reservation
• LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
• 128 Namespaces
• Single Port
• SMBus Support

*
