Overview

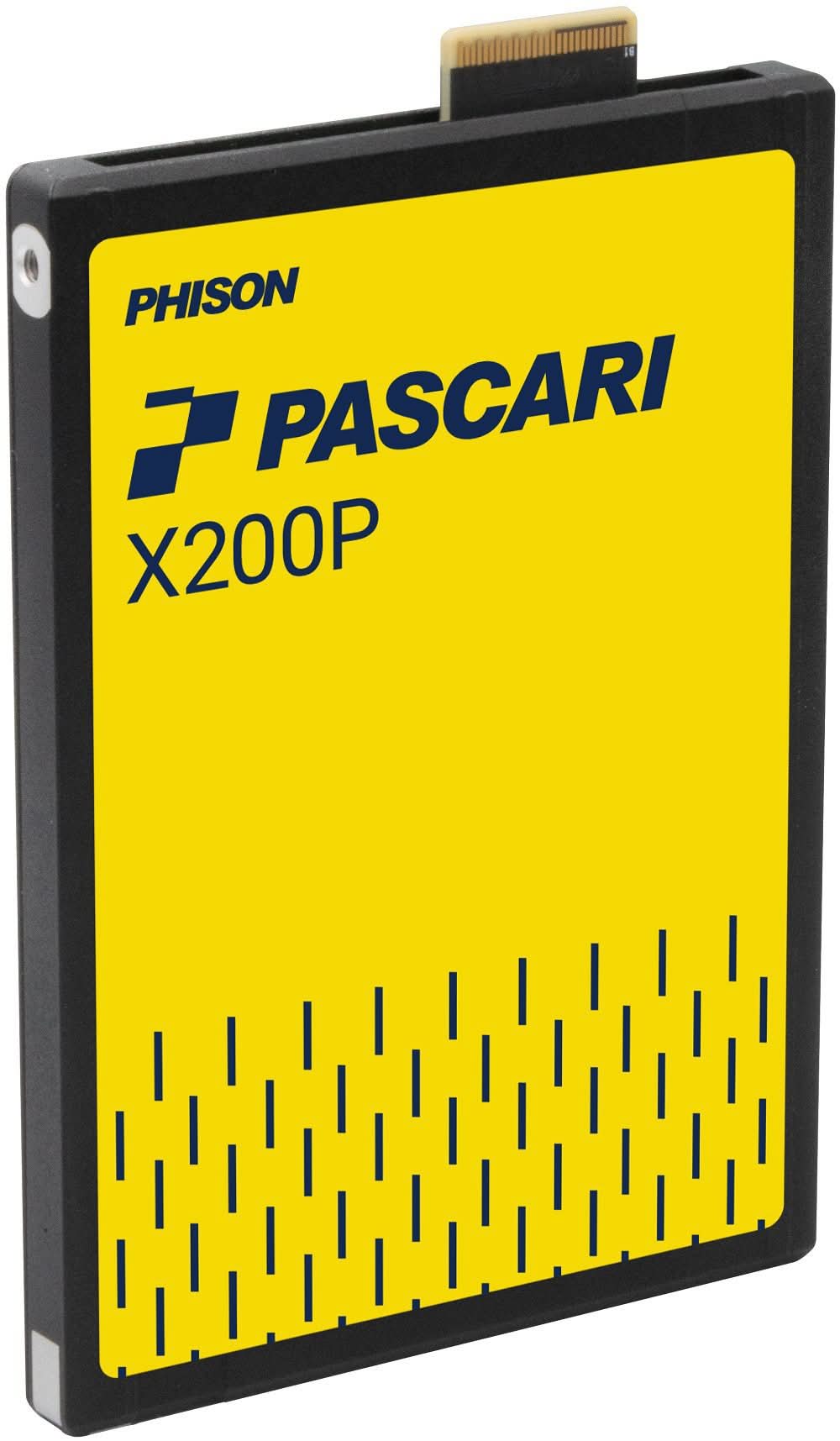

PHISON XP208H0315T3P2116T310 Pascari X200P 15360 GB U.2 15mm Single Port PCIe Gen5x4 Opal Security SSD
Specifications
Model Number: XP208H0315T3P2116T310
Brand: PHISON
Alt Part Number(s): XP208H0315T3P2116T310
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP208H0315T3P2116T310
Capacities: 15360 GB
Form Factor: U.2 15mm
Security: Opal
PCIe Interface: PCIe Gen5x4
Single Port: x4 lanes
PCIe AER: Advanced Error Reporting
Active Power: 25 W
Inrush Current: 2.5A
Idle Power: <9W
DWPD: 1DWPD
TBW: 28032 TB
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF: 2.5 million hours
UBER (Uncorrectable Bit Error Rates): 3D NAND < 1 sector per 10^18 bits read
Advanced Flash Management: ECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade
Temperature (Operating): 0°C to 70°C (with specified airflow)
Temperature (Storage): -40°C to 85°C
RoHS Compliant
Enterprise Features: Namespace, Single Port, Reservation, Metadata Protection, Thermal Throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption
Support SMBus
Support NVMe-MI (Management Interface)
Data Retention: 3 months
Compliance: PCIe Express Base 5.0, NVMe Express 2.0, NVMe Express Management Interface Rev 1.2, PCIe Express SFF-8639 Module Specification Revision 4.0, Version 1.0
Flash Configuration: 512GB x 32
Flash Type: 128CE, 512Gb ODP, 3D eTLC
Supply Voltage:
12v: ±10%
12v noise level: 240mVp-p (0–20 MHz)
12v minimum off time: 500 ms
3.3v aux: ±15%
Inrush Current: 12v 2.5A
*
