Description

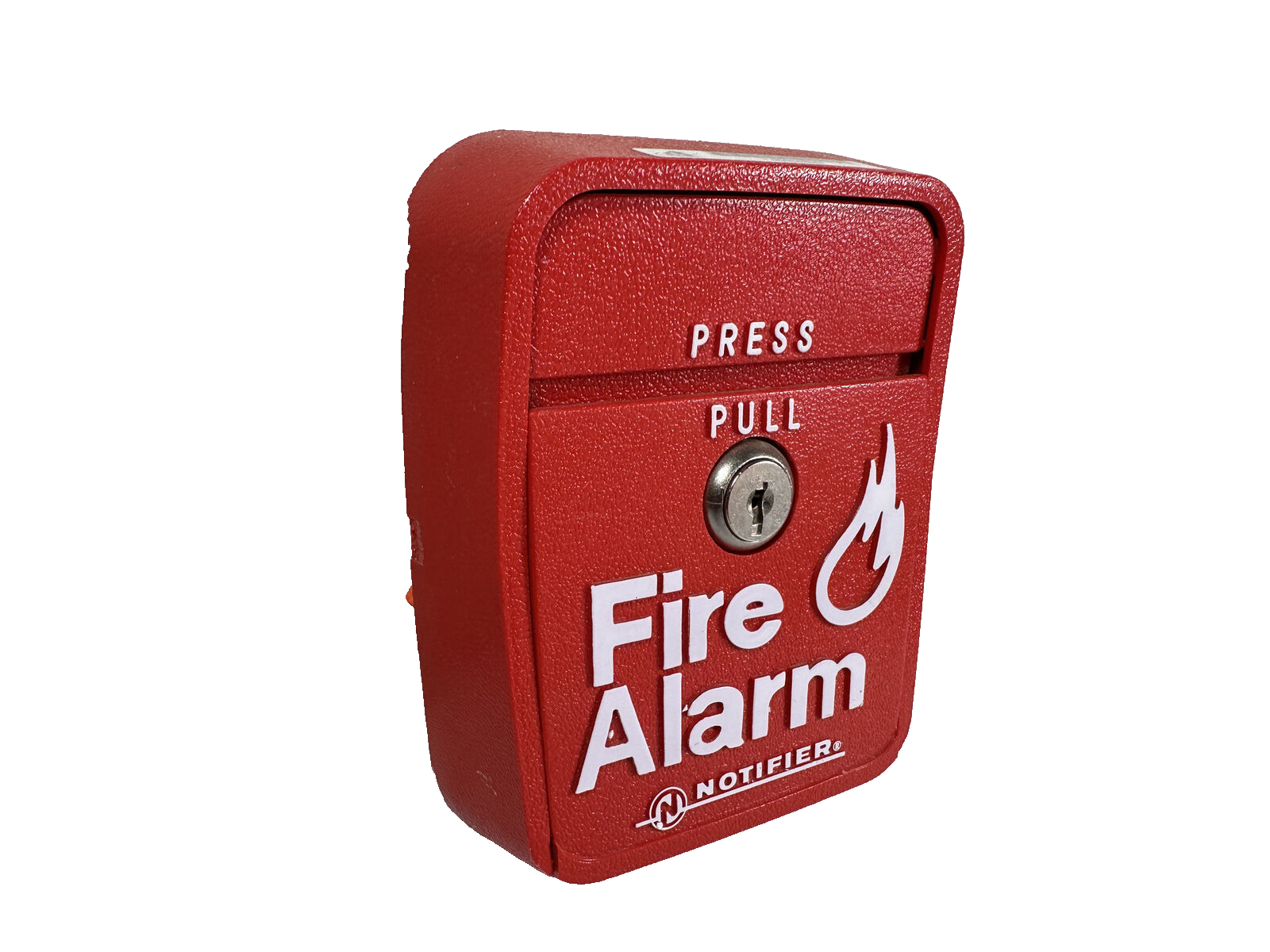

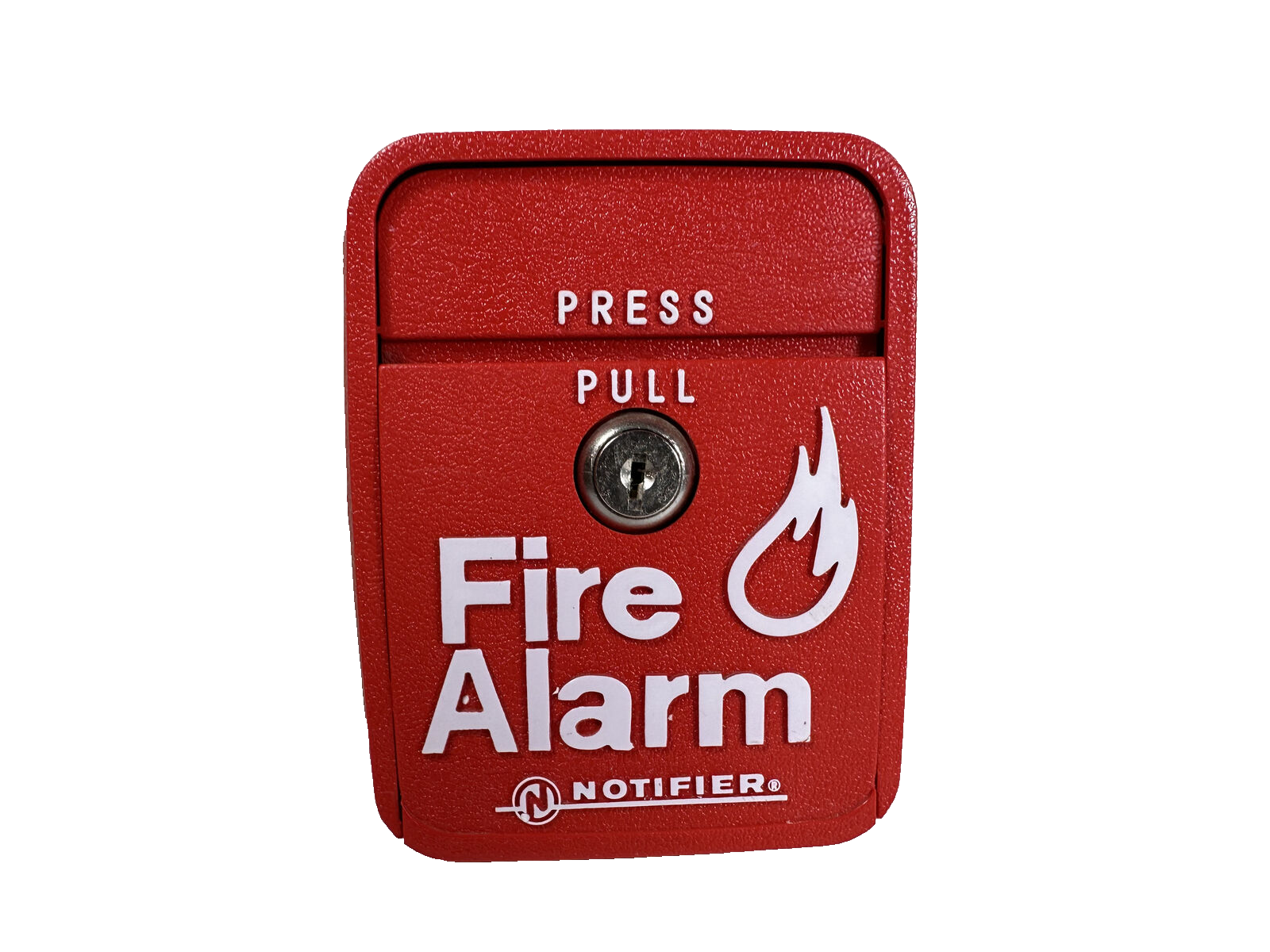

The LNG‑1R is a dual-action manual fire alarm pull station from Notifier, featuring the classic push‑in then pull‑down activation pattern similar to the BNG series—but constructed in a high-impact, flame-retardant plastic housing.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Notifier |
| Category |
Fire Alarm Equipment |
| Part Number |
LNG-1R |
| Subcategory |
Manual Pull Stations |
| Activation Method |
Dual-Action: Push-in top door, then pull-out bottom door |
| Material |
High-impact, flame-retardant plastic |
| Reset Mechanism |
Key-operated latch reset |
| Mounting Options |
Standard single-gang box or optional surface backbox |
| UL Standard |
Complies with UL 38 |
| Unique Characteristic |
Plastic, larger version of BNG-1 series (circa 1980s–2000) |
| Weight |
0.5 lbs |
Information About LNG-1R
The LNG‑1R is part of Notifier’s legacy line of conventional dual-action manual fire alarm pull stations, designed for deliberate and secure alarm activation in commercial fire safety systems. Built from high-impact, flame-retardant plastic, the LNG‑1R offers dependable performance with a classic two-step pull mechanism. Its design ensures clear activation feedback, with a lower door that latches visibly when used and resets only via a standard Notifier key. Compatible with surface or semi-flush installations, the LNG‑1R provides rugged reliability in both new and retrofit applications.
Key Features:
- Dual-Action Activation: Requires the user to push the top door and then pull the bottom door to trigger the alarm, reducing accidental activations.
- Conventional Operation: Works with standard fire alarm control panels using basic switch contact—ideal for traditional system architectures.

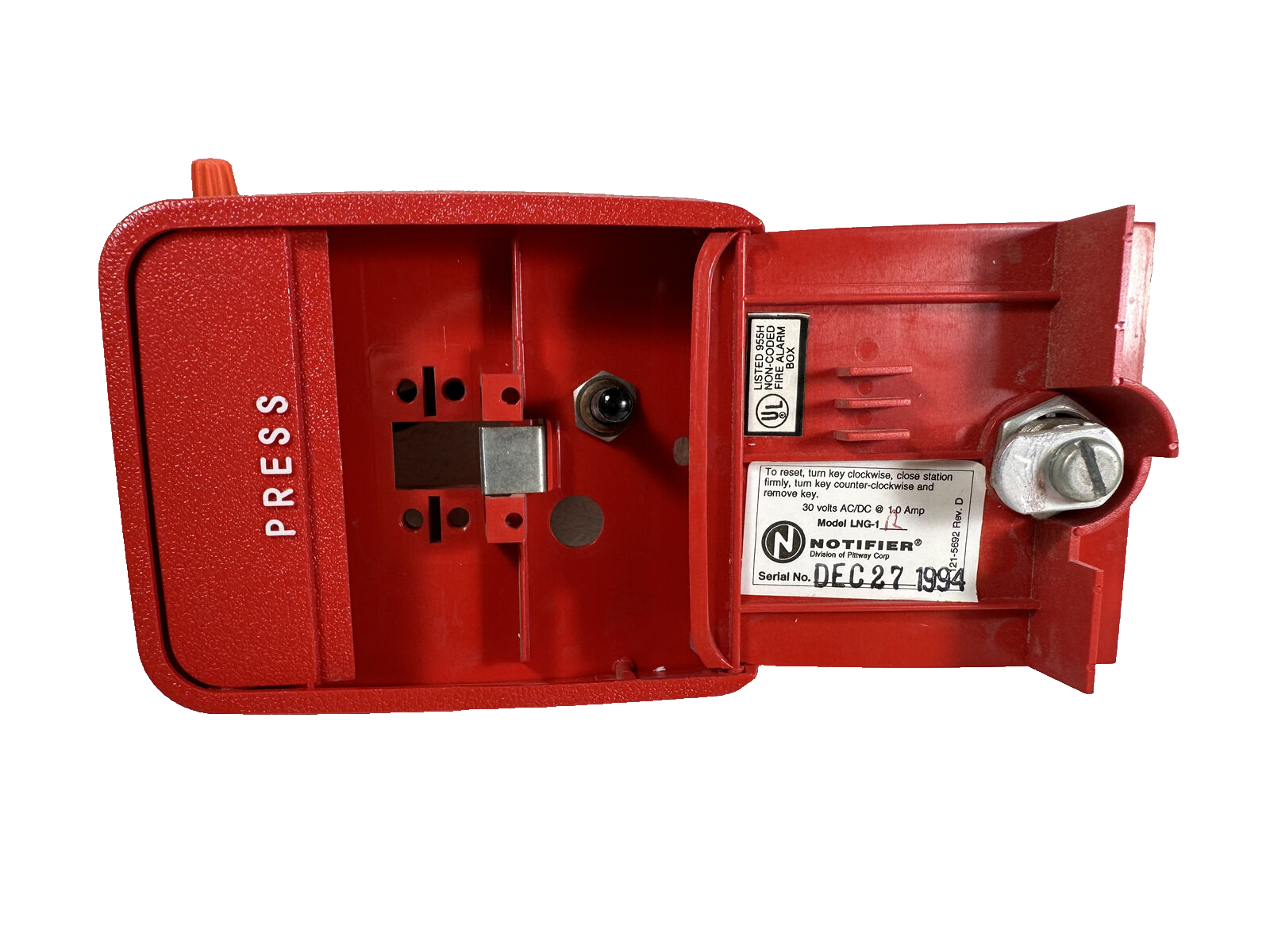

- Latch-and-Lock Indicator: The bottom door remains visibly pulled after activation and can only be reset using a key, clearly signaling a used station.
- Key-Lock Reset: Uses a Notifier key to restore the station to its standby state after an alarm.
- Durable Construction: Molded from high-impact, flame-retardant plastic for long-term resilience in commercial environments.

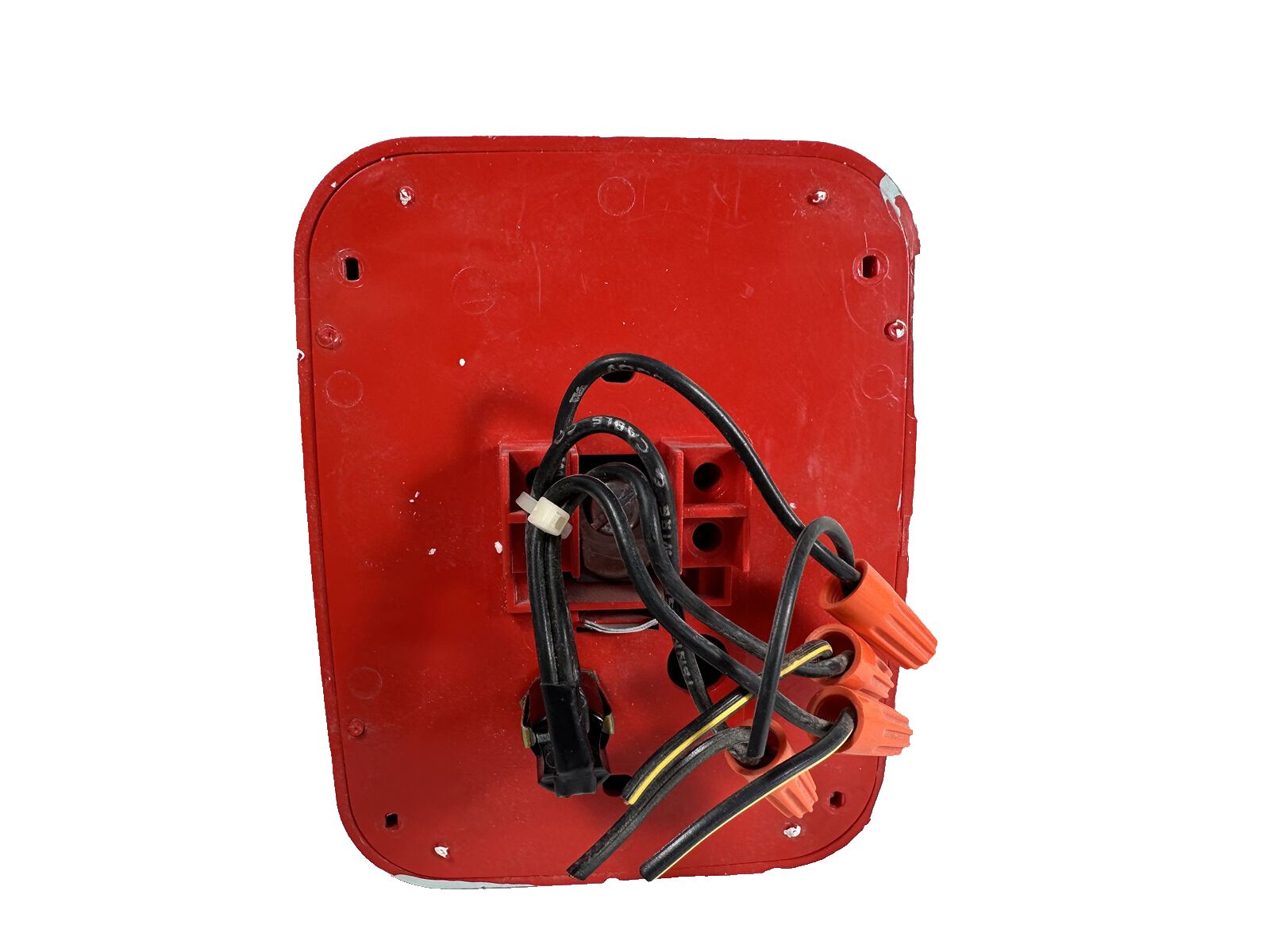

- Flexible Mounting: Designed for installation on standard single-gang electrical boxes or with optional surface backboxes.
- UL Listed: Complies with UL 38 standards for manual signaling stations.
- Classic Design: Resembles the operation of BNG-series stations but in a slightly larger plastic form factor.
The Notifier LNG‑1R offers simple, reliable manual fire alarm activation with a mechanical dual-action design. Though discontinued, it remains a widely recognized solution for legacy fire alarm systems and a durable example of Notifier’s commitment to functional safety hardware.
