Description

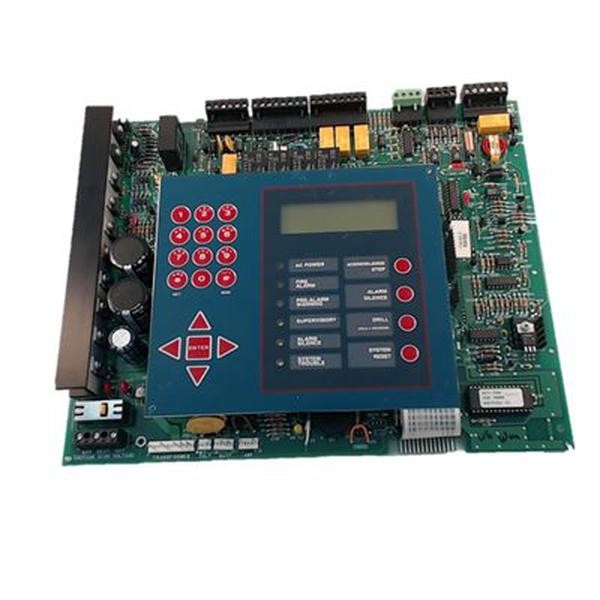

The Notifier AFP-200RB is a compact and intelligent replacement board for the AFP-200 Fire Alarm Control Panel. It offers powerful detection capabilities and device control while maintaining a small footprint and cost-effective operation for commercial and industrial fire protection systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Notifier |
| Category |
|
| Part Number |
AFP-200RB |
| Subcategory |
Control/Interface Board |
| Device Capacity |
198 addressable points (99 detectors, 99 modules) |
| Relay Outputs |
Programmable, supports up to 99 additional relays |
| NAC Circuits |
4 programmable, expandable with APS-6R
|
| Power Input |
120 VAC, 50/60 Hz (via full panel) |
| Annunciator Support |
LCD-80, ACS Series, EIA-485 interface |
| Printer Support |
Compatible with 40/80-column printers |
| Event History Capacity |
Stores up to 650 events in nonvolatile memory |
| Dimensions |
5 × 5 × 3 in |
| Weight |
3.00 lbs
|
Information About AFP-200RB
The AFP-200RB serves as the main processing and logic control board for the Notifier AFP-200 fire alarm control system. Designed for fast installation or replacement, it retains all key functions of the original AFP-200 panel, including support for up to 198 addressable devices across 99 detectors and 99 modules. The panel is well-suited for mid-size facilities, delivering intelligent detection with modular expansion options, networking capabilities, and point-specific status tracking.
Compact yet powerful, the AFP-200RB integrates advanced features such as automatic sensitivity adjustment, drift compensation, programmable relays, and compatibility with ACS annunciators and printers. The board supports real-time monitoring and comprehensive event history logging for enhanced system diagnostics and compliance.
Key Features:
- 198 Addressable Device Capacity: Supports up to 99 detectors and 99 modules for flexible system design.
- High Usability and Diagnostics: Includes programmable relays, event history logging, and manual/auto sensitivity settings.
- Compact Design: Ideal for replacing or upgrading core logic in existing AFP-200 installations without full panel replacement.
- Integrated Point Functions: Includes waterflow, alarm verification, pre-alarm, and maintenance alert for each addressable point.
- Annunciator Compatibility: Works with LCD-80 remote display, ACS annunciators, and EIA-485-connected LDM custom panels.
- Flexible Alarm Outputs: Four built-in NAC circuits and optional expansion with APS-6R for high-power applications.
- Standards Compliant: Built for UL-listed installations with full support for NFPA 72 programming features and Positive Alarm Sequence logic.
The AFP-200RB enables intelligent and scalable fire detection in commercial facilities while preserving the reliability and flexibility of the AFP-200 platform.
