Description

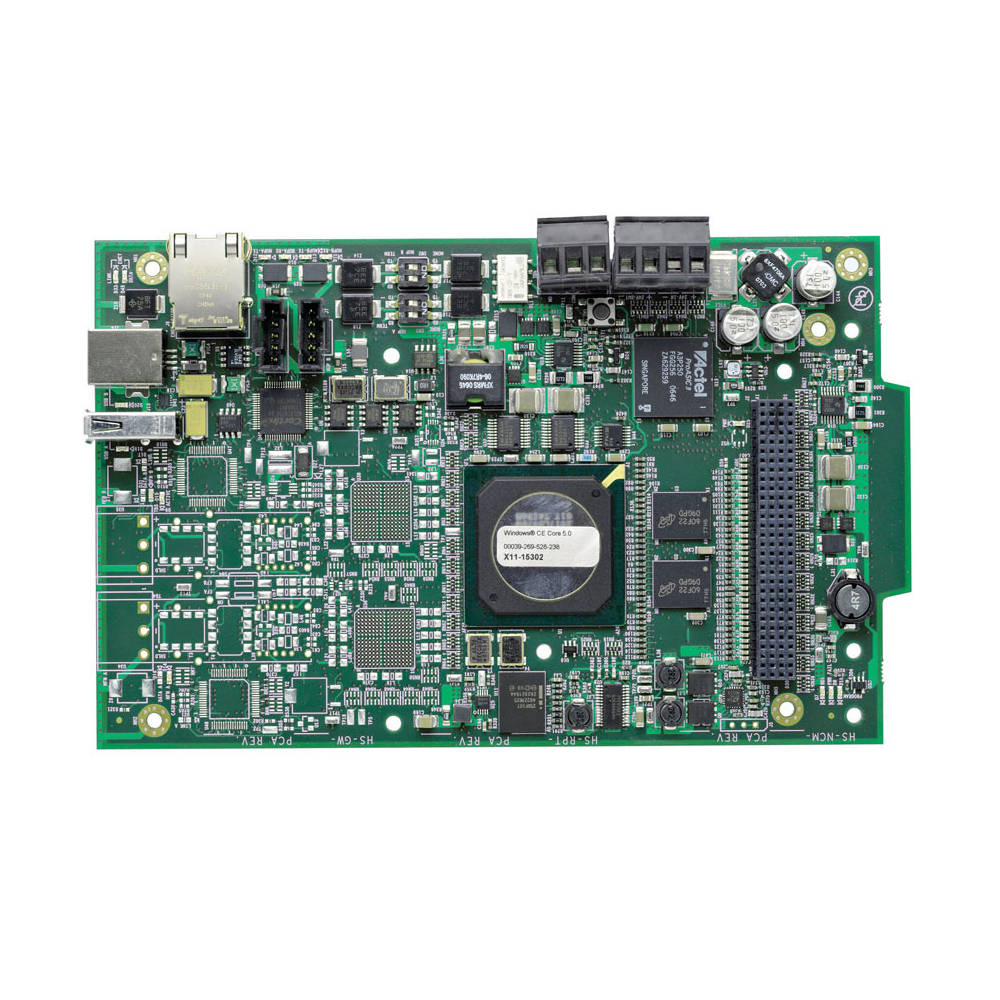

The HS-NCM-MF is a high-speed network communication module designed for use in Honeywell’s NOTI-FIRE-NET (NFN) systems. It provides robust and interference-resistant communication over fiber-optic cables, ensuring secure and efficient data transfer between fire alarm control panels and networked devices.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Notifier |
| Category |
|
| Part Number |
HS-NCM-MF |
| Subcategory |
Operator Interface |
| Network Type |
High-Speed NOTI-FIRE-NET (NFN) |
| Medium |
Fiber-optic (multi-mode) |
| NFPA Styles Supported |
Style 4 (Class B), Style 7 (Class A)
|
| Fiber Types |
62.5/125 µm, 50/125 µm, 9/125 µm |
| Maximum Attenuation |
10 dB @ 62.5/125 µm; 6.5 dB @ 50/125 µm; 30 dB @ 9/125 µm |
| Wavelength |
1310 nm |
| Connectors |
LC style |
| Transmission Rate |
100 Mbps |
| Signal Regeneration |
Yes, at each node |
| Network Ports |
Two (TX and RX), enabling daisy-chained repeaters |
| Compatible Devices |
HS-NCM-MF or HS-NCM-MF/SF modules |
| Weight |
12.00 lbs
|
Information About HS-NCM-MF
The HS-NCM-MF is engineered for integration within the NOTI-FIRE-NET high-speed network and supports fiber-optic cabling to provide enhanced immunity to electrical noise, perfect for demanding environments. It supports both Class B (NFPA Style 4) and Class A (NFPA Style 7) operations, ensuring versatility in system design. This module uses optical isolation to prevent ground loop issues and facilitates database uploads/downloads and software updates via the network.
The module features two network ports, allowing daisy-chain connections between multiple panels and enabling both panel-to-panel communication and remote programming. With support for multiple fiber types and baud transmission rates up to 100 Mb, the HS-NCM-MF offers a future-proof solution for scalable fire safety infrastructures.
Key Features:
- High-Speed Fiber-Optic Transmission: Supports 100 Mbps data rates with optical isolation, eliminating ground loop issues.
- Versatile Fiber Compatibility: Accepts multi-mode fiber sizes including 62.5/125 μm, 50/125 μm, and 9/125 μm (single-mode).
- Long-Distance Communication: Operates with maximum attenuation values of up to 30 dB, depending on the fiber type and length.
- Secure and Noise-Immune: Immune to environmental electromagnetic interference, ensuring data integrity.
- Network Redundancy and Programming Support: Includes two ports for TX and RX to enable redundant connections and computer programming interface.
The HS-NCM-MF delivers high-speed, fault-tolerant communication across fiber-optic media, optimizing large-scale fire alarm network performance.
