Description

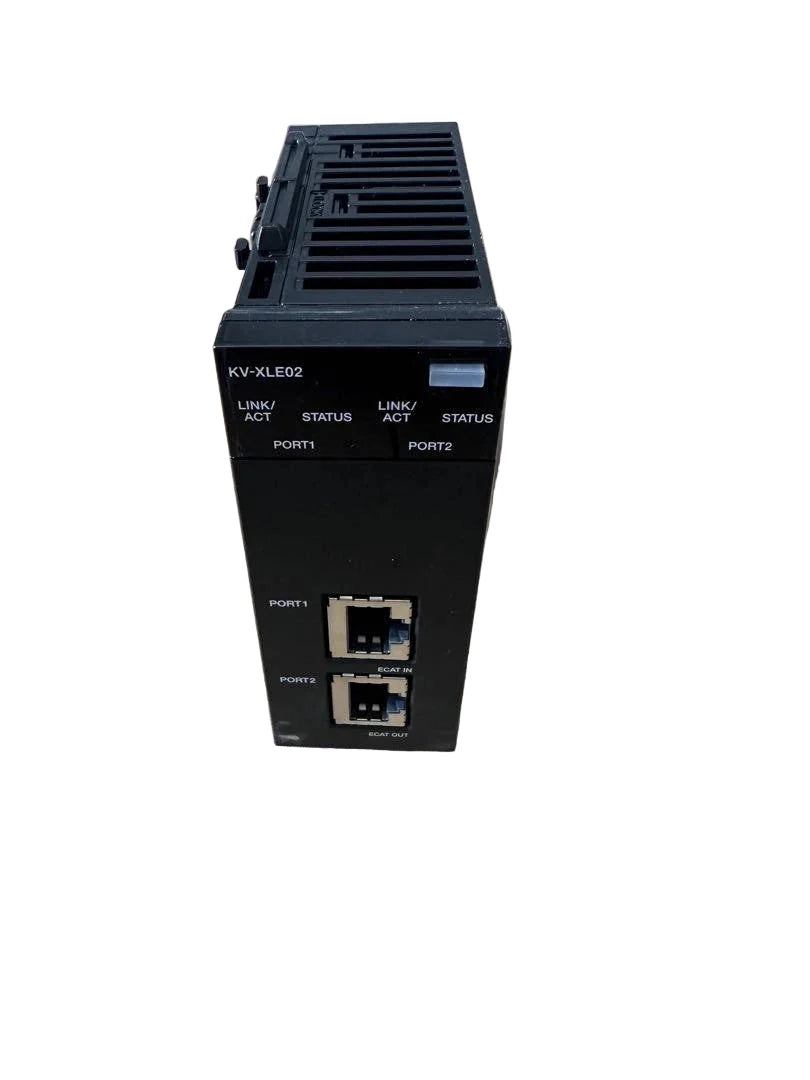

The Keyence KV-XLE02 is a dual-port Ethernet communication unit designed for the KV Series programmable logic controllers (PLCs). It supports multiple industrial communication protocols and provides high-speed data exchange between PLCs, devices, and factory networks for advanced automation applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
PLCs/Machine Control |
| Part Number |
KV-XLE02 |
| Subcategory |
PLC Module/Rack |
| Type |
Ethernet Unit (2-Port) |
| Connection Interface |
RJ-45, 8-pole modular connector × 2 |
| Transmission Rate |
10BASE-T (10 Mbps), 100BASE-TX (100 Mbps), 1000BASE-T (1000 Mbps) |
| Transmission Media |
Category 3–6 UTP/STP (STP recommended) |
| Max. Cable Length |
100 m per port |
| Max. Connected Hubs |
10BASE-T: 4 / 100BASE-TX: 2 / 1000BASE-T: 1 |
| Program Capacity |
3 MB (approx. 20,000 blocks) |
| Data Memory |
524,288 words |
| Communication Protocols |
EtherNet/IP™, PROFINET, EtherCAT®, CC-Link IE Field™, Modbus, MC protocol |
| Ethernet Functions |
FTP server/client, PLC link, KV socket communication, Modbus server |
| Execution Methods |
Ladder and unit program (flow) |
| PLC Link Communication Patterns |
Write, read, transfer |
| Number of Link Settings |
512 max. |
| Link Data Size |
1440 words per setting, up to 737,280 words total |
| Max. Connected Devices |
16 |
| Max. Communication Commands |
160/320 per device |
| Transmission Data Length |
Standard: 1–2048 bytes, Extended: up to 16384 bytes per frame |
| Reception Data Length |
1–16384 bytes |
| Trigger Types |
Cyclic or event (64 settings max.) |
| Update Interval |
1 to 65,535 ms |
| Internal Current Consumption |
200 mA or less |
| Power Supply Voltage |
Supplied from base unit |
| Operating Temperature |
0 to +50 °C (32 to 122 °F) |
| Operating Humidity |
35 to 85% RH (no condensation) |
| Storage Temperature |
-20 to +70 °C (-4 to 158 °F) |
| Protection Rating |
Panel-mount type (for enclosed installation) |
| Material |
Industrial-grade plastic housing |
| Weight |
Approx. 190 g (6.7 oz) |
Information About KV-XLE02
The KV-XLE02 belongs to Keyence’s KV Series expansion modules, engineered to provide Ethernet-based communication for logic control systems. It features two RJ-45 modular ports supporting 10BASE-T, 100BASE-TX, and 1000BASE-T transmission rates with up to 100 m cable length per port. The unit supports various industrial protocols including EtherNet/IP™, PROFINET, EtherCAT®, CC-Link IE Field™, Modbus, and Keyence’s proprietary KV protocol. With built-in PLC link capability, automatic refresh, and advanced synchronization functions, the KV-XLE02 ensures efficient communication between devices and controllers in manufacturing networks.
Key Features:
- Dual-Port Ethernet Interface: Two RJ-45 connectors for high-speed network communication.
- Multi-Protocol Support: Compatible with EtherNet/IP™, PROFINET, EtherCAT®, and CC-Link IE Field™.
- Fast Transmission Rates: Supports 10/100/1000 Mbps for flexible network configurations.
- Extensive Device Connections: Communicates with up to 16 devices and 64 connected units.
- High Data Capacity: Manages up to 3 MB of program capacity and over 524,000 data words.
- Flexible Communication Modes: Cyclic, event-based, and direct refresh modes for optimized data flow.
- Advanced PLC Link: Supports write, read, and transfer patterns with 512 link settings.
- Durable and Compact Design: Built for stable installation within PLC racks and control panels.
- Low Power Consumption: Operates efficiently with less than 200 mA internal current draw.
- Industrial-Grade Reliability: Designed to meet demanding automation and networking requirements.
The KV-XLE02 delivers the reliability and high-speed performance required for complex industrial control, monitoring, and data communication systems.
