Description

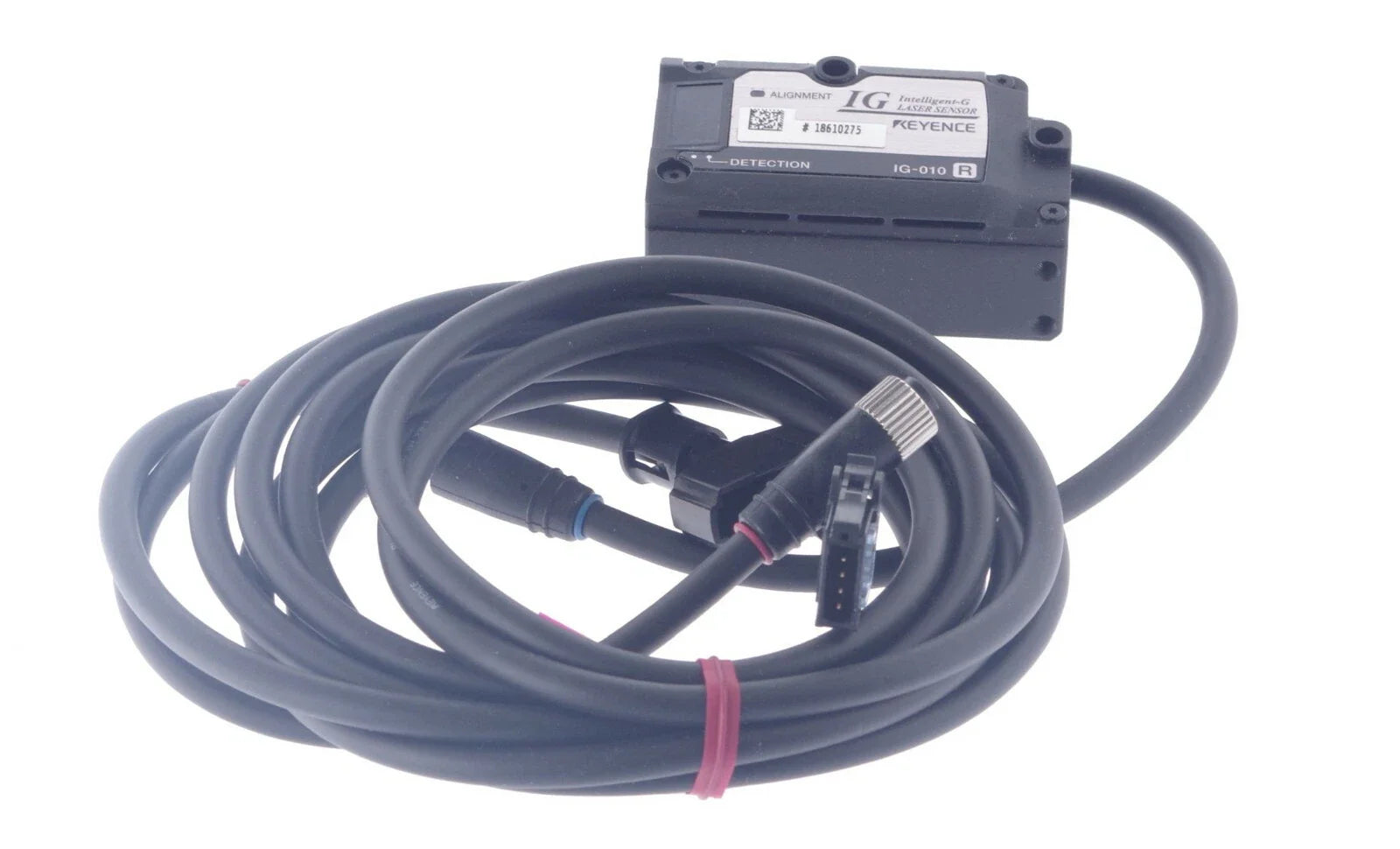

The Keyence IG-010 is a positioning sensor head designed for precise object detection and measurement using CCD laser micrometer technology. Utilizing a visible semiconductor laser, the IG-010 delivers stable and accurate positioning feedback across a wide detection range. This sensor is optimized for high-precision alignment, positioning, and inspection tasks in industrial automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
Sensors |
| Part Number |
IG-010 |
| Subcategory |
Laser Positioning Sensors |
| Measurement Method |
CCD laser micrometer |
| Light Source |
660 nm visible semiconductor laser |
| Laser Class |
Class 1 (IEC/JIS, FDA) |
| Mounting Distance |
0 to 1000 mm |
| Measurement Range |
10 mm |
| Sampling Cycle |
980 µs |
| Minimum Detectable Object |
0.1 mm (high sensitivity) |
| Repeatability |
5 µm to 80 µm (depending on distance) |
| Linearity |
±0.28% of F.S. |
| Protection Rating |
IP67 |
| Operating Temperature |
-10°C to +45°C |
| Humidity Range |
35–85% RH (non-condensing) |
| Material |
Zinc die-cast, PBT, SUS304 components |
| Included Components |
Transmitter, receiver, cables |
| Weight |
Approx. 380 g |
Information About IG-010
The IG-010 is part of Keyence’s IG series, which combines CCD-based optical sensing with laser measurement for reliable positioning applications. It operates using a transmitter and receiver configuration, allowing accurate detection of object position and displacement without contact. The sensor supports a wide mounting distance and provides high sensitivity detection for small objects, making it suitable for precision manufacturing processes. Built with a rugged IP67-rated housing, it is designed for stable operation in harsh industrial environments.
Key Features:
- CCD Measurement Method: Ensures high-accuracy positioning and detection
- Laser-Based Detection: 660 nm visible semiconductor laser for precise measurement
- Wide Detection Range: Supports mounting distances from 0 to 1000 mm
- High Sensitivity Mode: Detects objects as small as 0.1 mm
- Fast Sampling Cycle: 980 µs for rapid measurement response
- High Repeatability: Achieves repeatability down to 5 µm depending on distance
- Stable Linear Performance: ±0.28% of full scale for reliable measurements
- Dual Component System: Includes transmitter and receiver for accurate alignment
- Visual Indicators: LED indicators for alignment and operation status
- Rugged Construction: IP67-rated for industrial environments
- Flexible Installation: Suitable for various positioning and inspection setups
- Durable Materials: Zinc die-cast and engineered plastics for long-term reliability
The IG-010 delivers the reliability and precision required for positioning, alignment, and high-accuracy measurement in industrial automation systems.
