IS220PDIOH1B: The Environment Around the Pack Matters as Much as the Pack

Before assuming a failed PDIO needs replacing, it's worth knowing that GE's own manufacturing guidance for these I/O packs specifically warns against mounting them in vertical columns inside hot, dusty control cabinets without forced air circulation — heat buildup at the top of a stacked column is one of the most commonly cited causes of failure across the entire Mark VIe distributed I/O pack family, PDIO included. If a pack in the top position of a column has failed and others below it are healthy, cabinet airflow deserves a look before the next one fails too.

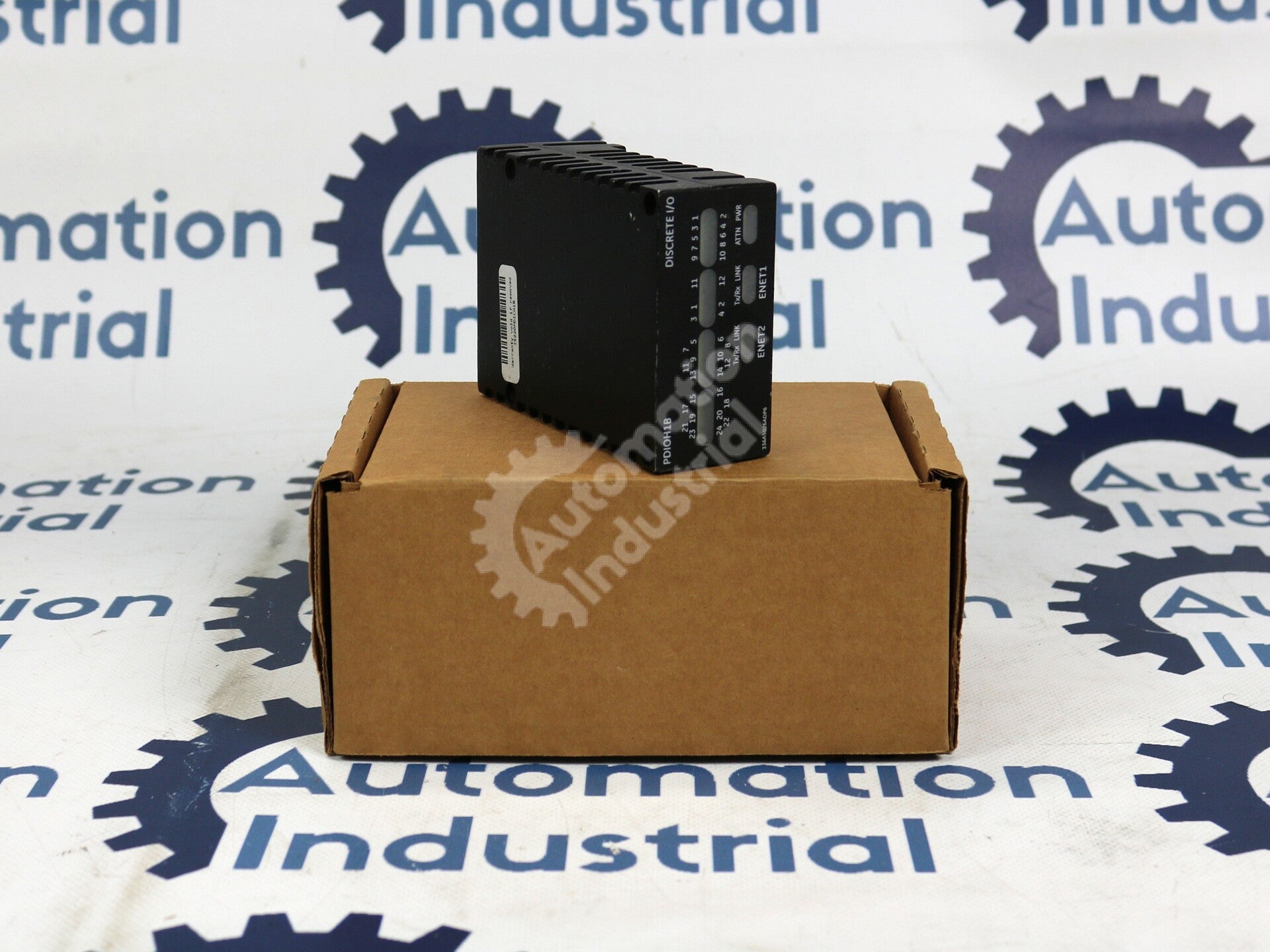

PDIO itself is GE's Speedtronic Mark VIe pack combining discrete contact input and relay output on a single assembly — the functional equivalent of a PDIA and PDOA pack built together — documented in GE's GEH-6721 Mark VIe Control System Guide. It reads up to 24 contact inputs and drives up to 12 relay outputs, plus terminal-board feedback, reporting to the <R>, <S>, or <T> controller over IONet through dual RJ-45 ports. Discrete signals connect to the terminal board through a DC-62 connector. One pack mounts on a TDBS terminal board for Simplex use; three (one per <R>/<S>/<T>) mount on a TDBT terminal board for TMR, with the terminal board carrying the field wiring while the pack handles processing and conversion.

The Swap Test, and What Else to Check First

• Move the suspect pack to a known-good terminal board, or a known-good pack onto the suspect board, and see which one the fault follows — this single test resolves more disputes than any other troubleshooting step.

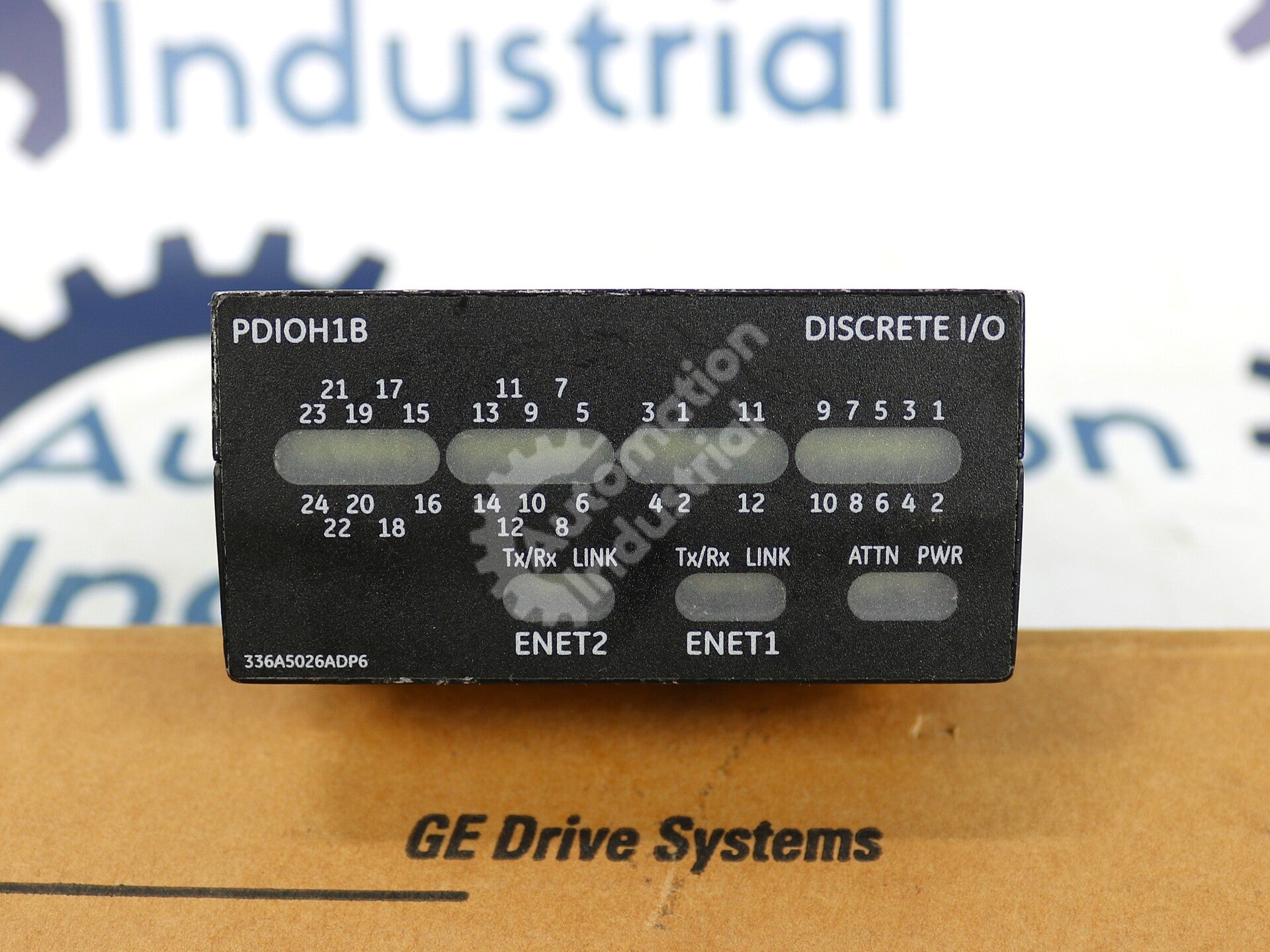

• Each contact input has its own comparator, opto-isolation, and yellow LED; each relay output has its own current-monitored output stage and LED. A single-channel problem usually traces back to field wiring or the terminal board's first-stage conditioning, not the pack.
• Confirm the terminal board's field voltage and hazardous-location rating match your installation; PDIO's H1A and H1B hardware generations are not tied to identical terminal board families.
• Check IONet cable ends, connectors, and bend radius for damage, and confirm both Ethernet ports are healthy if the pack is dual-connected.
• On a TMR panel, allow time for the system to resynchronize after any pack swap before concluding the replacement itself is faulty.

What the Part Number Tells You

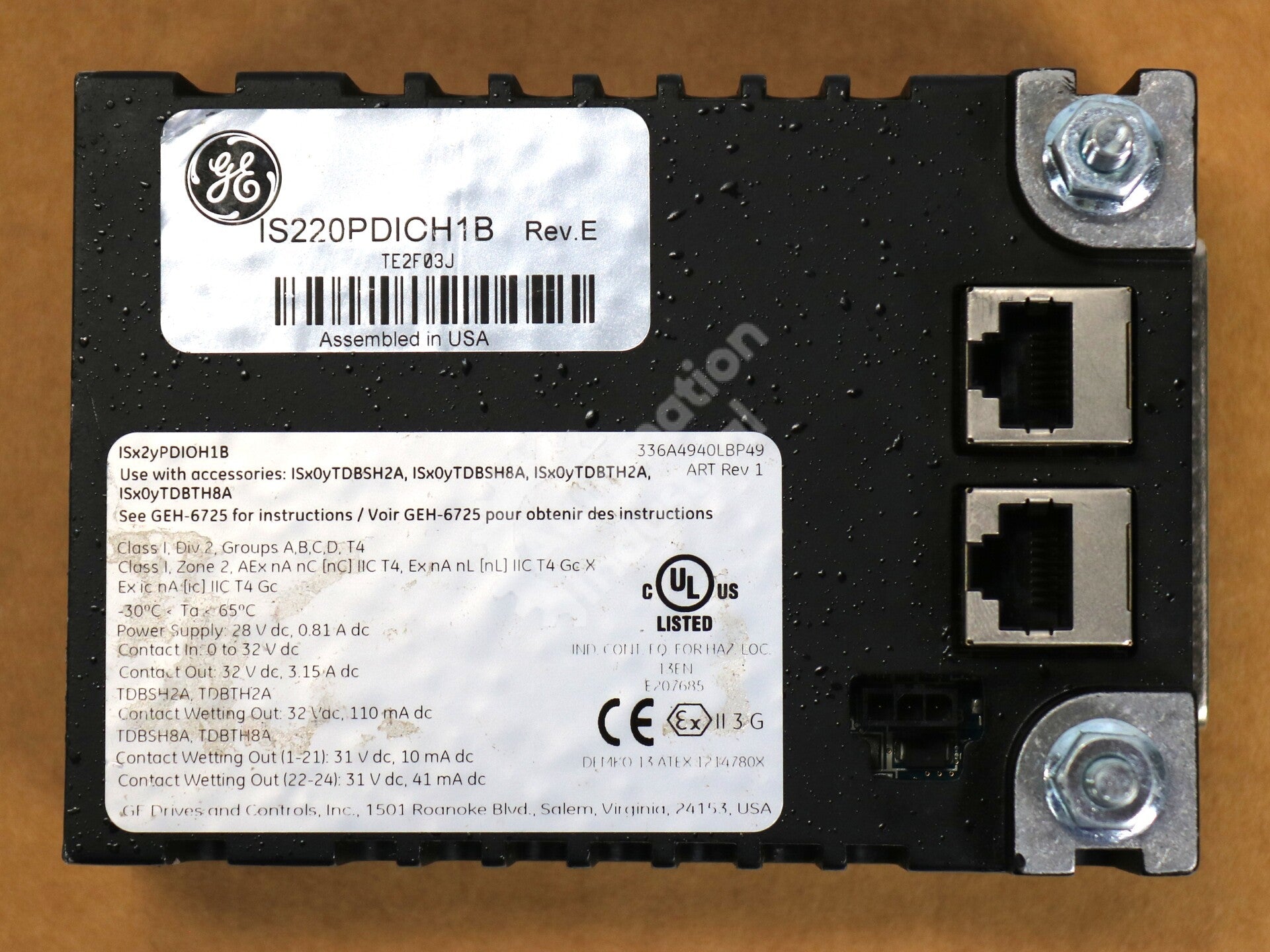

IS220 marks a Mark VIe distributed I/O pack, PDIO the combined discrete input/output function, H1 the design generation, and B the hardware revision beyond the original H1A. Confirm the complete string against your terminal board and ControlST project before ordering. Our GE Speedtronic Part Number Decoder explains how GE builds the rest of the number.

Related Packs in the Same Family

PDIO sits alongside PDIA (contact input only) and PDOA (relay output only) in GE's Mark VIe discrete I/O lineup, and alongside PPDA, which handles power distribution feedback rather than field I/O. All connect to the controller the same way, over IONet. See our GE Mark VI IS200 Boards collection for compatible terminal boards.

Before You Request a Quote

• Full part number with suffix (IS220PDIOH1B)
• A photo of the label
• Turbine model and Mark control generation
• Quantity
• Urgency of the request

We respond within 24 hours, ship worldwide DDP, and accept purchase orders. Request a Quote and our team will confirm fit and availability directly — no prices are posted on this site.
